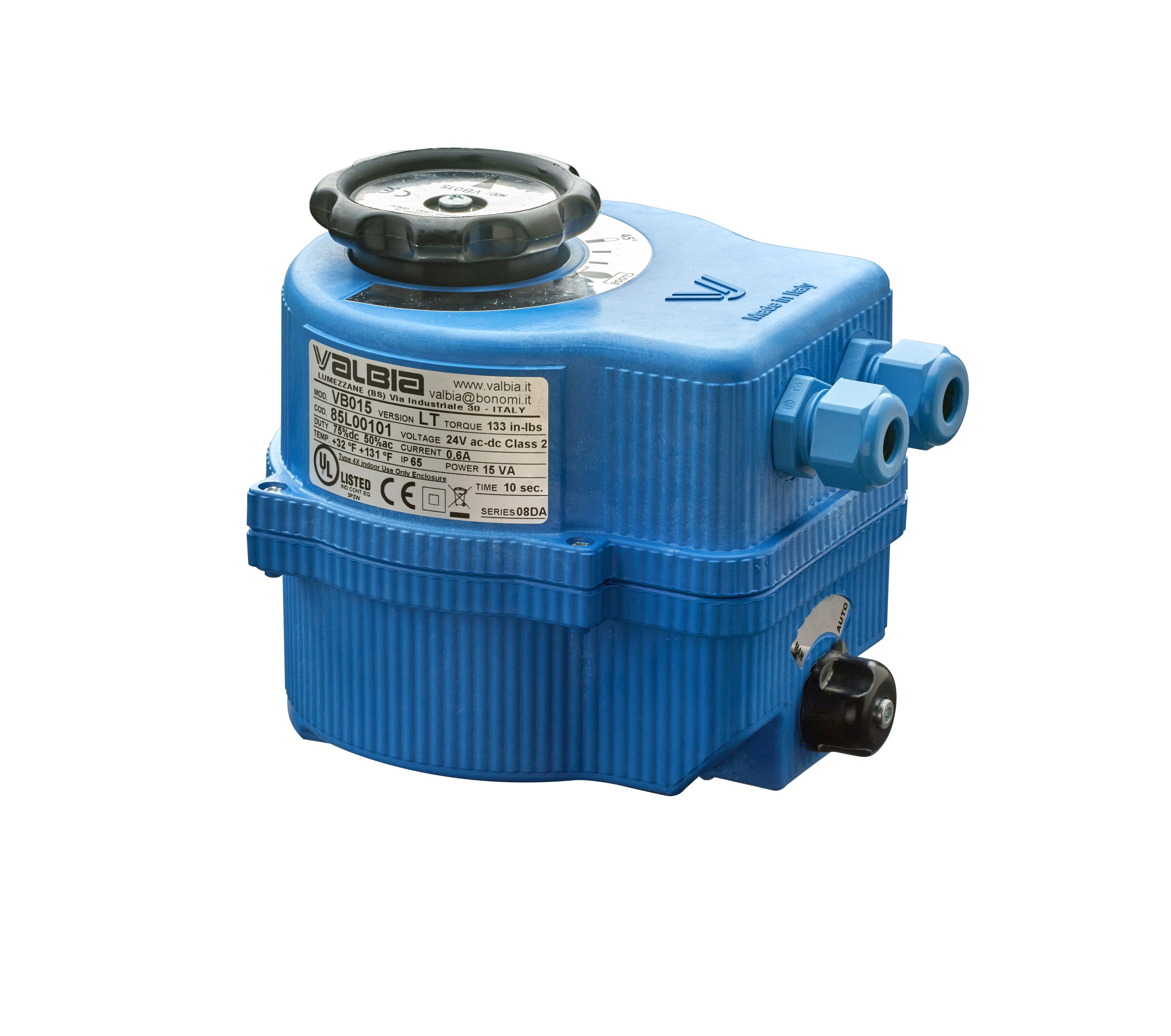

ELECTRIC ACTUATORS - SERIES 85

MOD. VB015

Technical specifications

SIZE	PATTERN ISO 5211	CH	A	B	C	D	E	F	G	H	I	L	M	N	O	ØP	Q
VB015	F03-F05*	11	4.84	5.57	1.67	4.74	4.96	0.61	4.06	1.26	0.55	1.42	1.97	10-24 UNC 2BX0.47	1/4-20 UNC 2BX0.51	2.68	2.56

*Upon request F04 or F07
