A Bonomi Group company

BONOMI PRESS

5V0000

Made in Italy

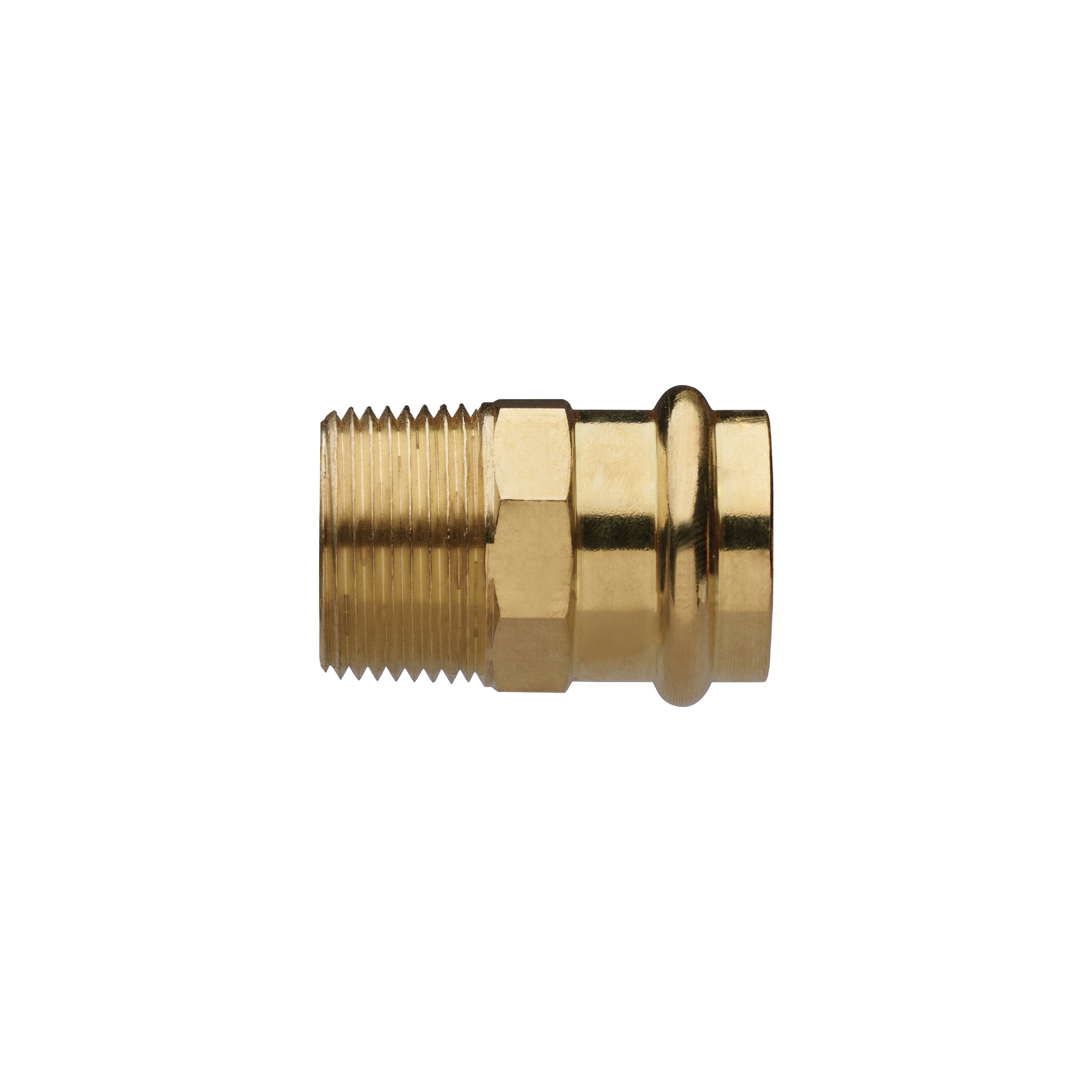

Brass F/male thread adapter.

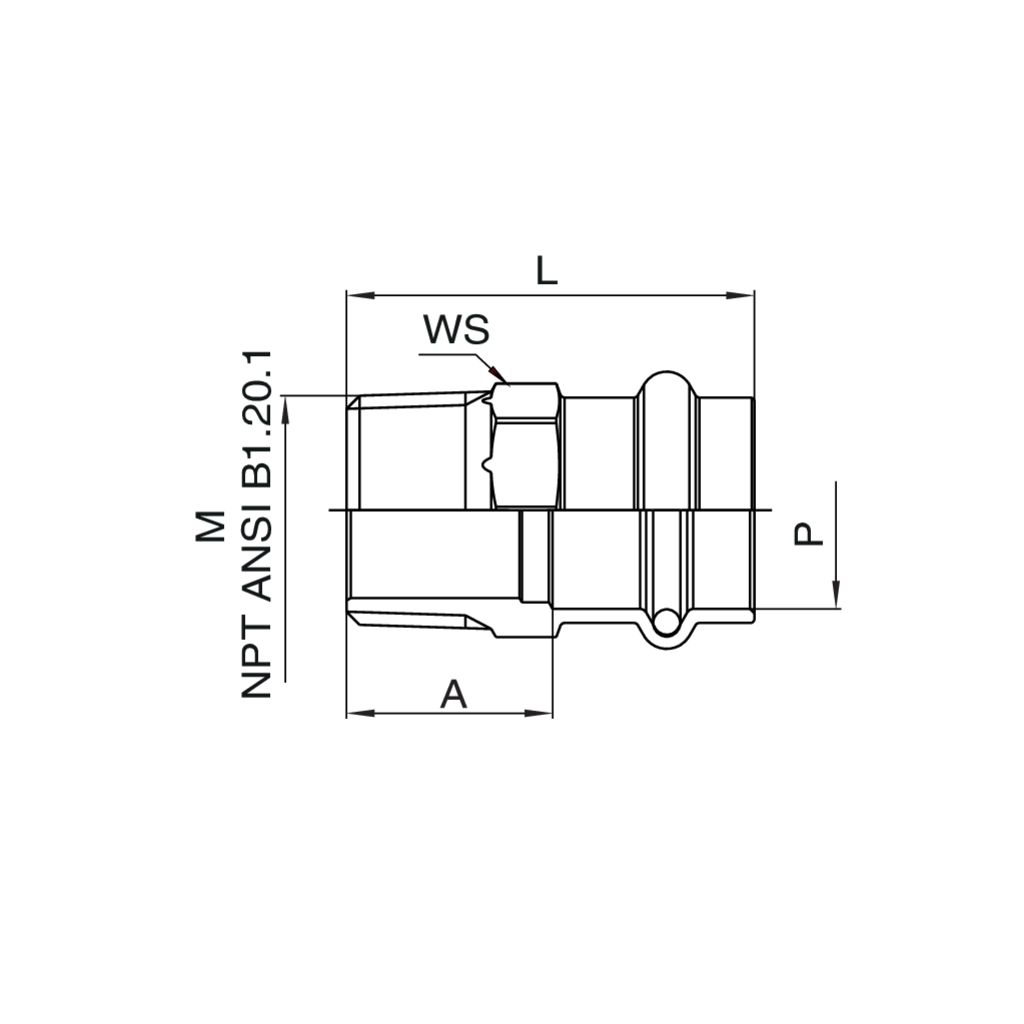

Technical specifications

P x M	BAG	MASTER BOX	PART NO.	L	A	WS
1/2'' x 1/2''	10	300	5V00000404	1.65	0.94	0.87
1'' x 1''	10	100	5V00000606	2.09	1.14	1.34
1 1/4'' x 1 1/4''	1	70	5V00000707	2.46	1.44	1.73
1 1/2'' x 1 1/2''	1	40	5V00000808	2.58	1.16	1.97
1/2'' x 3/8''	10	300	5V00000403	1.50	0.79	0.79
1/2'' x 3/4''	10	200	5V00000405	1.75	1.04	1.06
1'' x 3/4''	10	150	5V00000605	1.91	0.96	1.34
2'' x 2''	1	28	5V00001010	2.91	1.34	2.44
3/4'' x 1/2''	10	150	5V00000504	1.79	0.89	1.06
3/4'' x 1''	10	150	5V00000506	2.07	1.16	1.34
3/4'' x 3/4''	10	150	5V00000505	1.83	0.93	1.06

Available media and videos

BIM

5V0000_Brass.zip
