5V0000

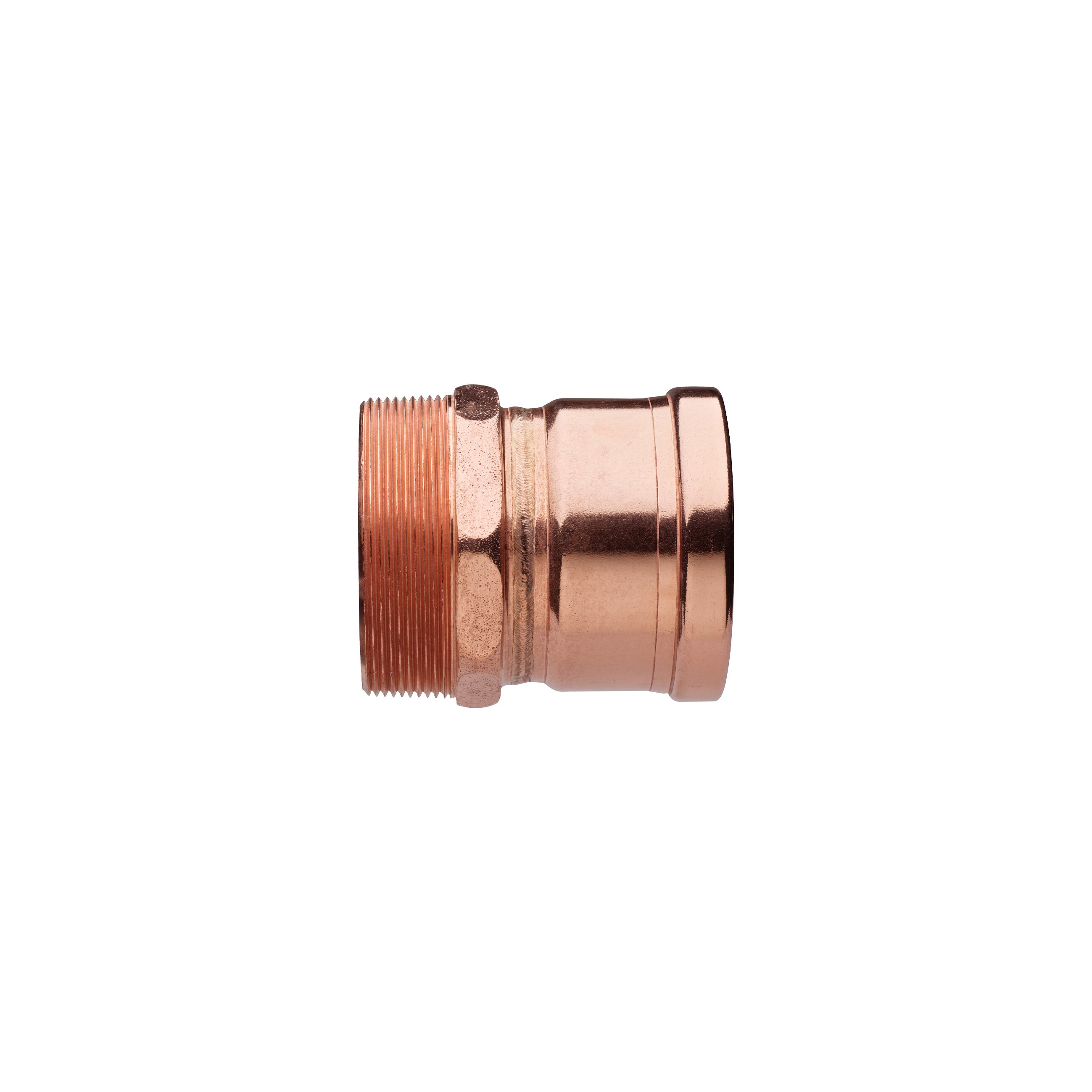

Brass F/male thread adapter.

Technical specifications

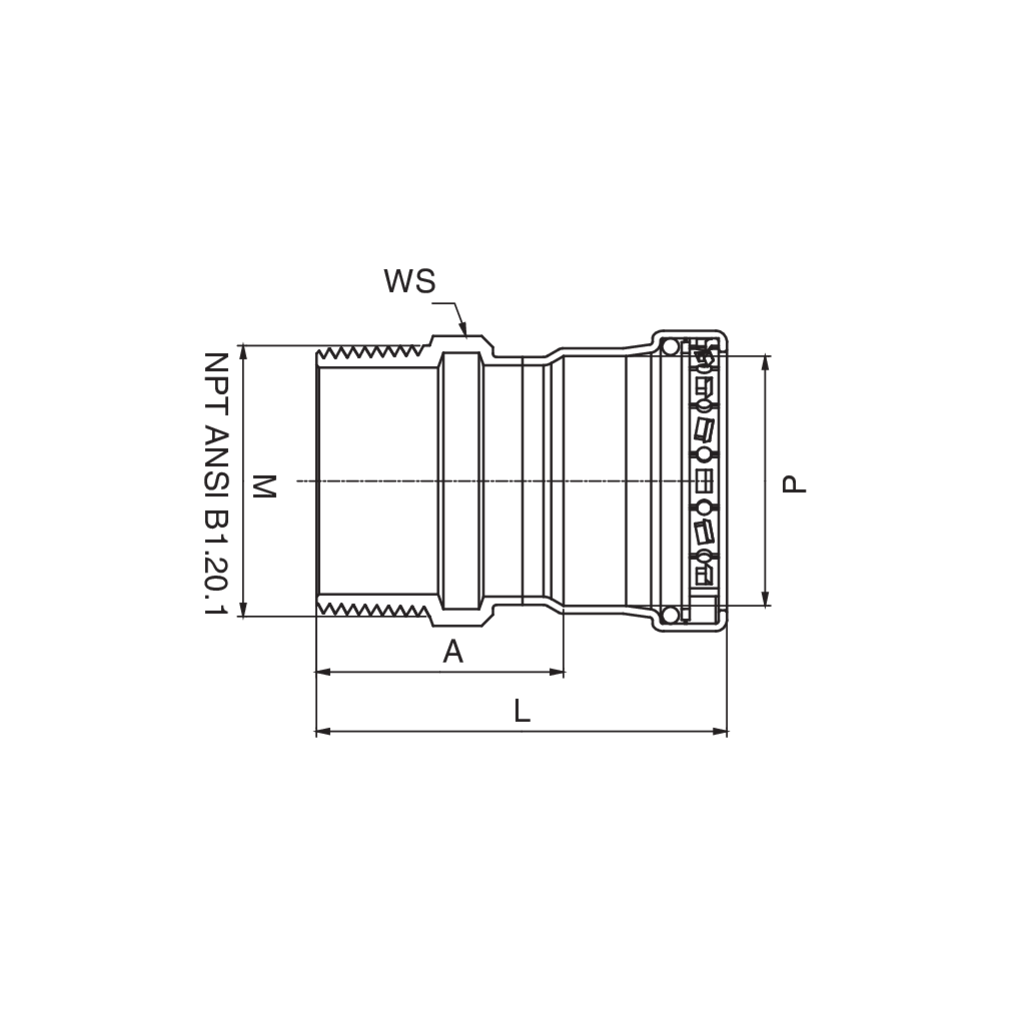

P x M	BAG	MASTER BOX	PART NO.	A	L	WS
2 1/2'' x 2 1/2''	1	8	5V00001212	2.64	4.37	2.91
3'' x 3''	1	6	5V00001414	2.78	4.74	3.54
4'' x 4''	1	6	5V00001818	3.54	5.94	4.53
