BONOMI PRESS

5V0100

Made in Italy

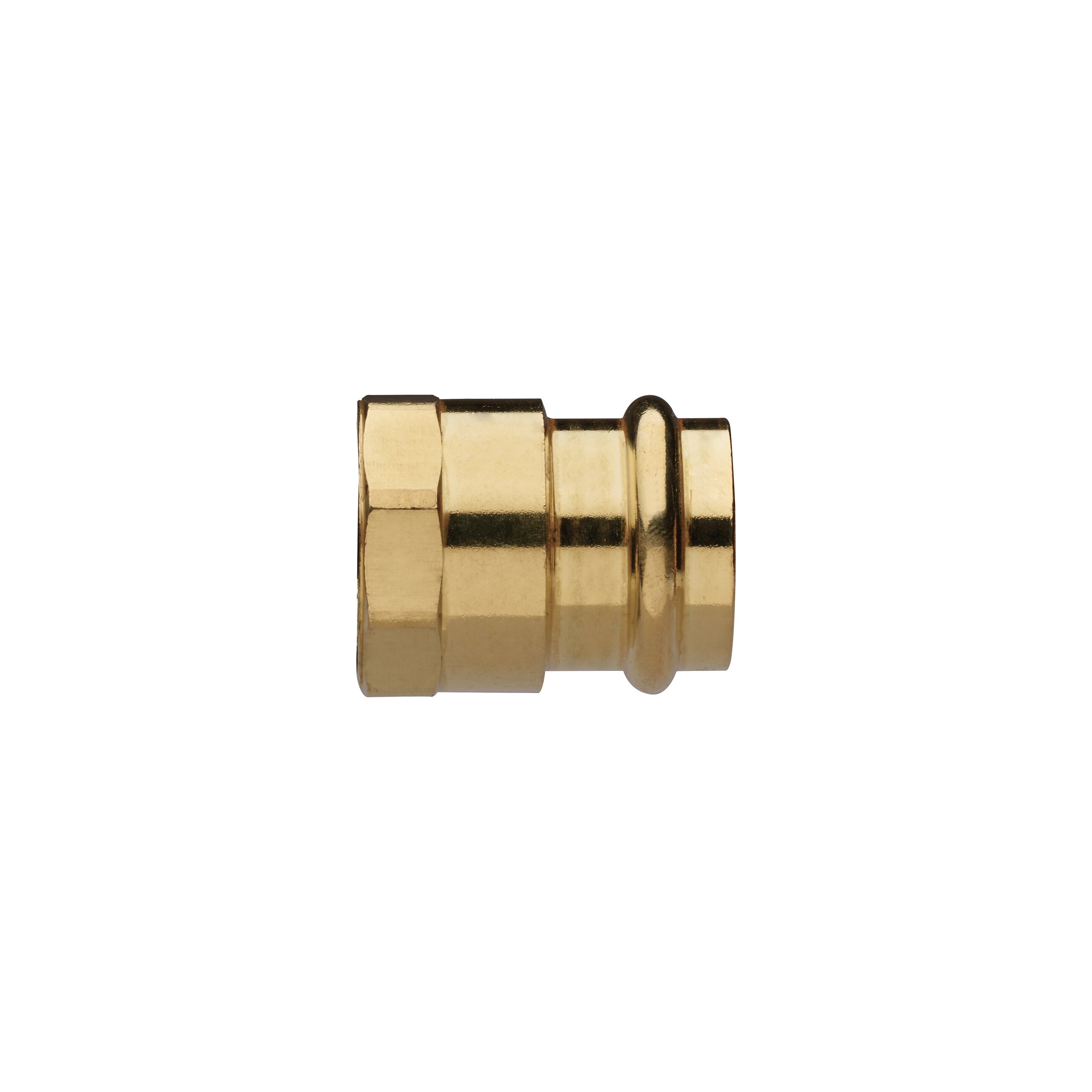

Brass F/female thread adapter.

Technical specifications

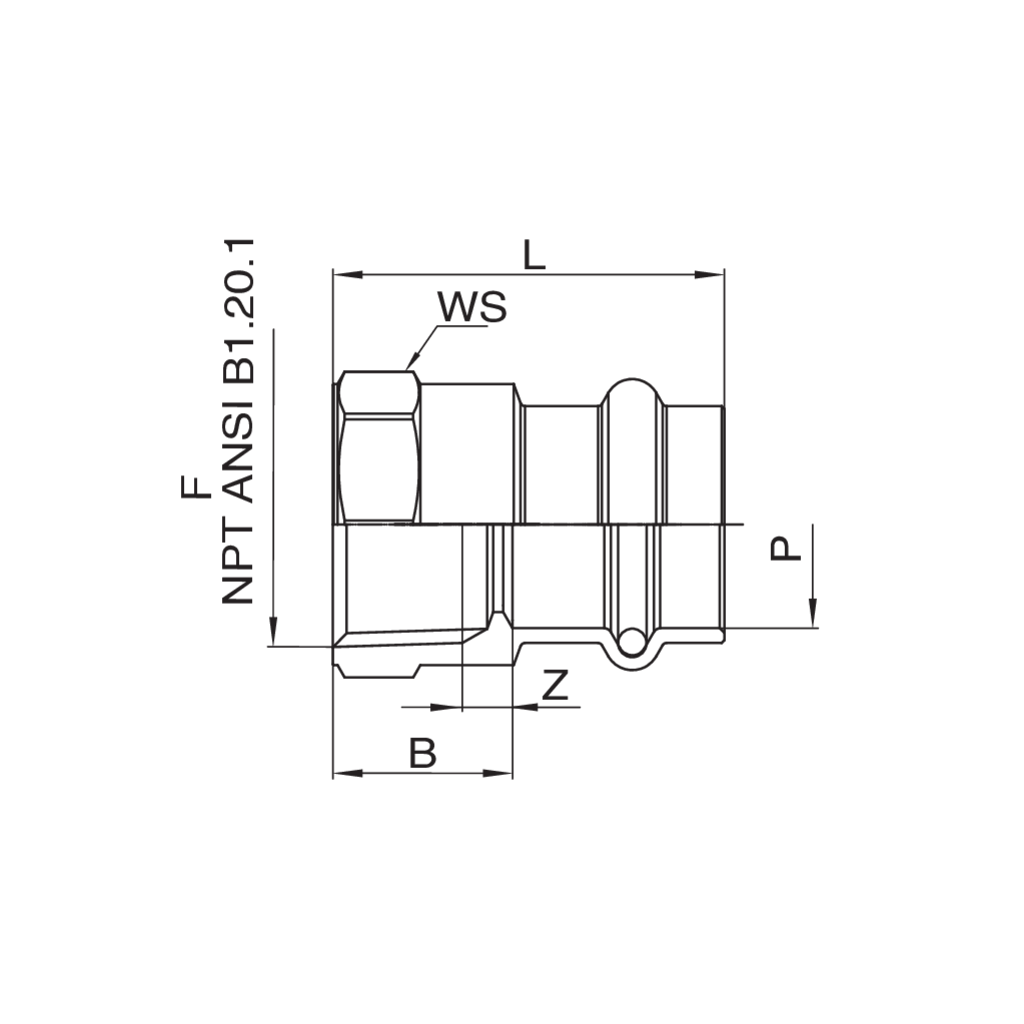

P x F	BAG	MASTER BOX	PART NO.	L	B	Z	WS
1/2'' x 1/2''	10	200	5V01000404	1.48	0.77	0.23	0.98
1'' x 1/2''	10	100	5V01000604	1.85	0.91	0.37	0.98
1'' x 1''	10	100	5V01000606	1.87	0.93	0.26	1.50
1 1/4'' x 1 1/4''	1	75	5V01000707	2.07	1.04	0.36	1.89
1 1/2'' x 1 1/2''	1	30	5V01000808	2.41	1.00	0.28	2.13
1/2'' x 3/8''	10	200	5V01000403	1.30	0.59	0.19	0.79
1/2'' x 3/4''	10	200	5V01000405	1.54	0.83	0.28	1.22
1'' x 3/4''	10	100	5V01000605	1.81	0.87	0.31	1.22
2'' x 2''	1	30	5V01001010	2.56	0.98	0.29	2.64
3/4'' x 1/2''	10	150	5V01000504	1.75	0.85	0.31	0.98
3/4'' x 3/4''	10	150	5V01000505	1.67	0.77	0.22	1.22
