5V0400

Made in Italy

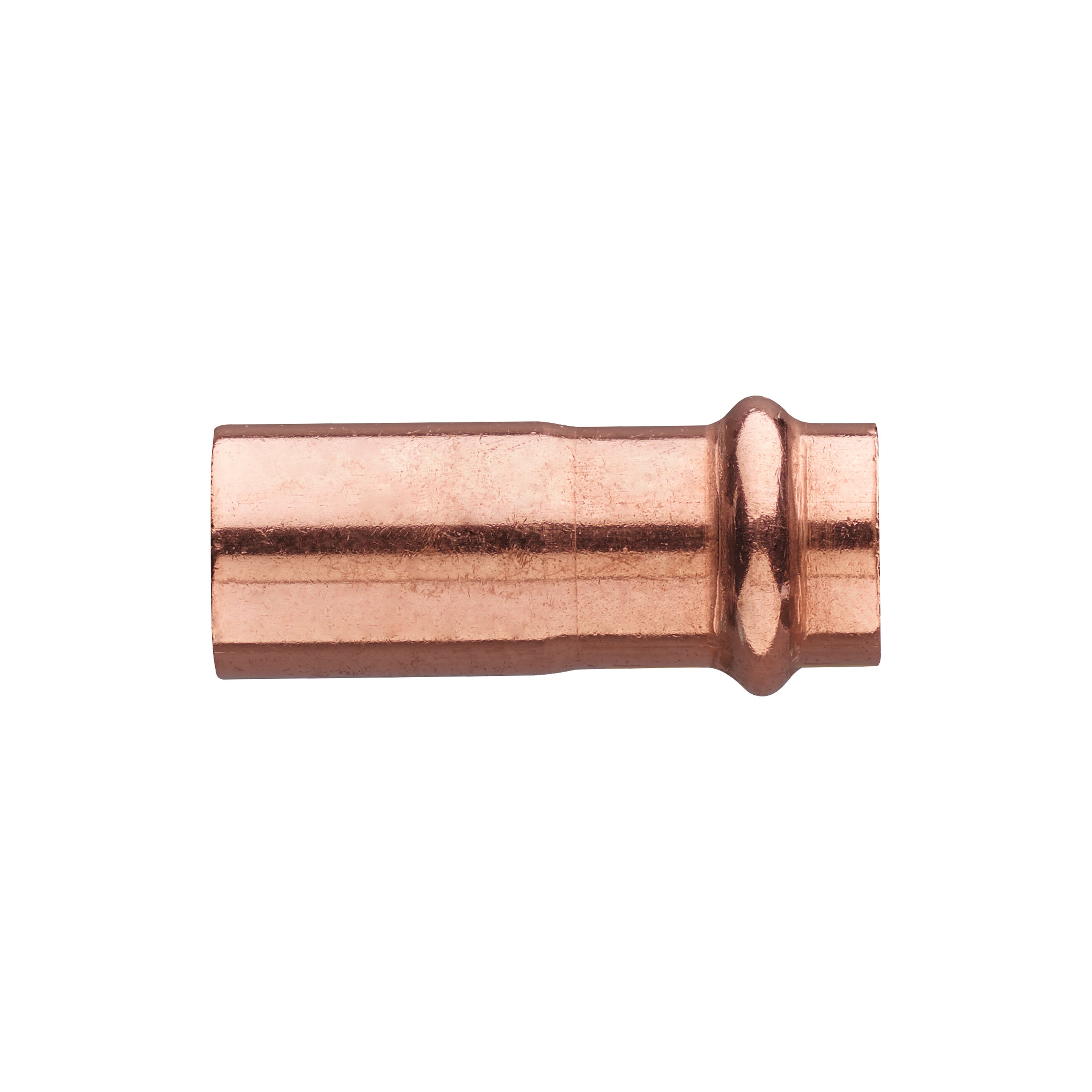

Copper M/F reducer.

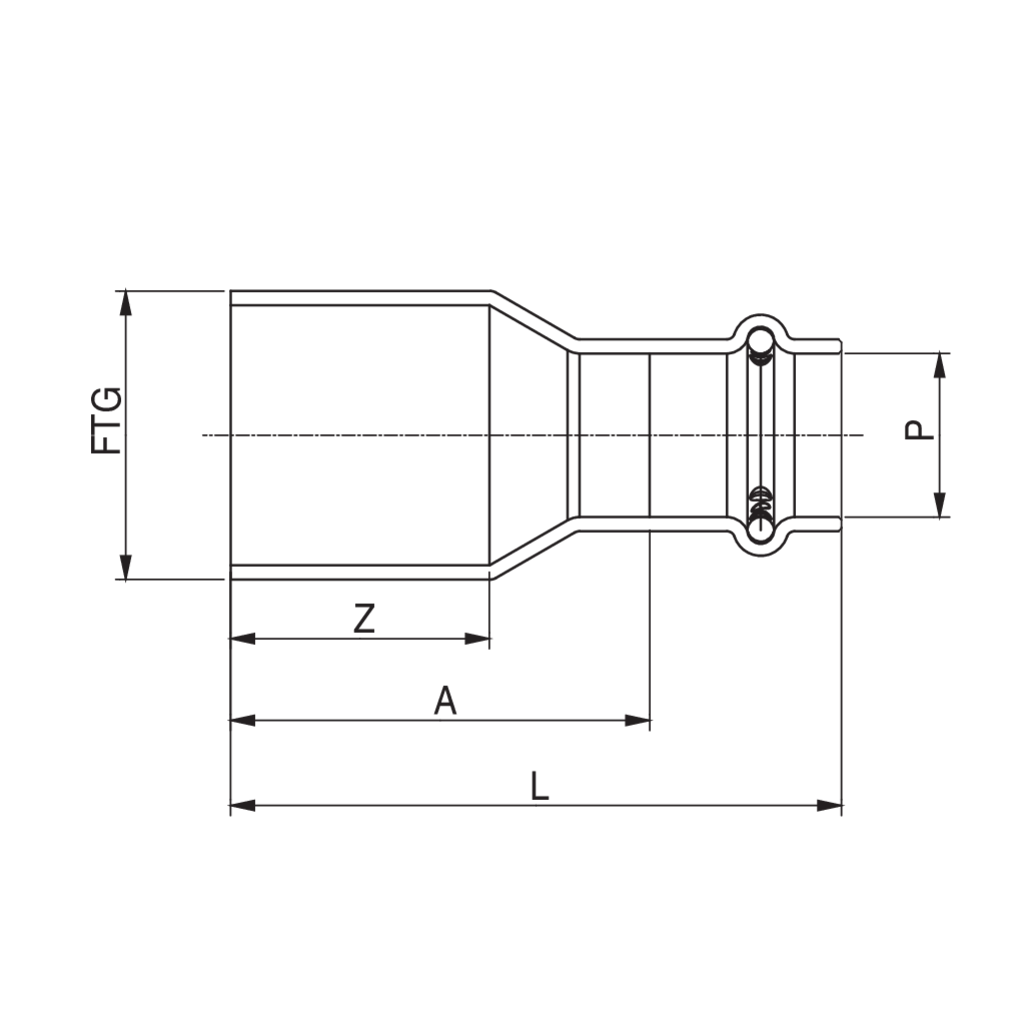

Technical specifications

FTG x P	BAG	MASTER BOX	PART NO.	Z	A	L
1'' x 1/2''	10	200	5V04000604	1.02	1.65	2.40
1 1/4'' x 1/2''	5	100	5V04000704	1.10	1.81	2.56
1 1/4'' x 1''	5	100	5V04000706	1.10	1.42	2.32
1 1/2'' x 1''	1	80	5V04000806	1.50	2.07	2.97
1 1/2'' x 1 1/4''	1	60	5V04000807	1.50	1.85	2.87
1'' x 3/4''	5	150	5V04000605	1.02	1.34	2.24
1 1/4'' x 3/4''	5	100	5V04000705	1.10	1.63	2.54
1 1/2'' x 3/4''	1	80	5V04000805	1.50	2.24	3.15
2'' x 1''	1	40	5V04001006	1.65	2.60	3.50
2'' x 1 1/4''	1	40	5V04001007	1.65	2.40	3.43
2'' x 1 1/2''	1	30	5V04001008	1.65	2.20	3.62
2 1/2'' x 1 1/2''	1	15	5V04001208	1.97	3.15	4.57
2 1/2'' x 2''	1	14	5V04001210	1.97	2.87	4.45
3/4'' x 1/2''	10	250	5V04000504	1.02	1.42	2.17
3'' x 1 1/2''	1	3	5V04001408	2.28	3.70	5.12
3'' x 2''	1	12	5V04001410	2.28	3.46	5.04
4'' x 2''	1	6	5V04001810	2.56	4.21	5.79
