5V0400

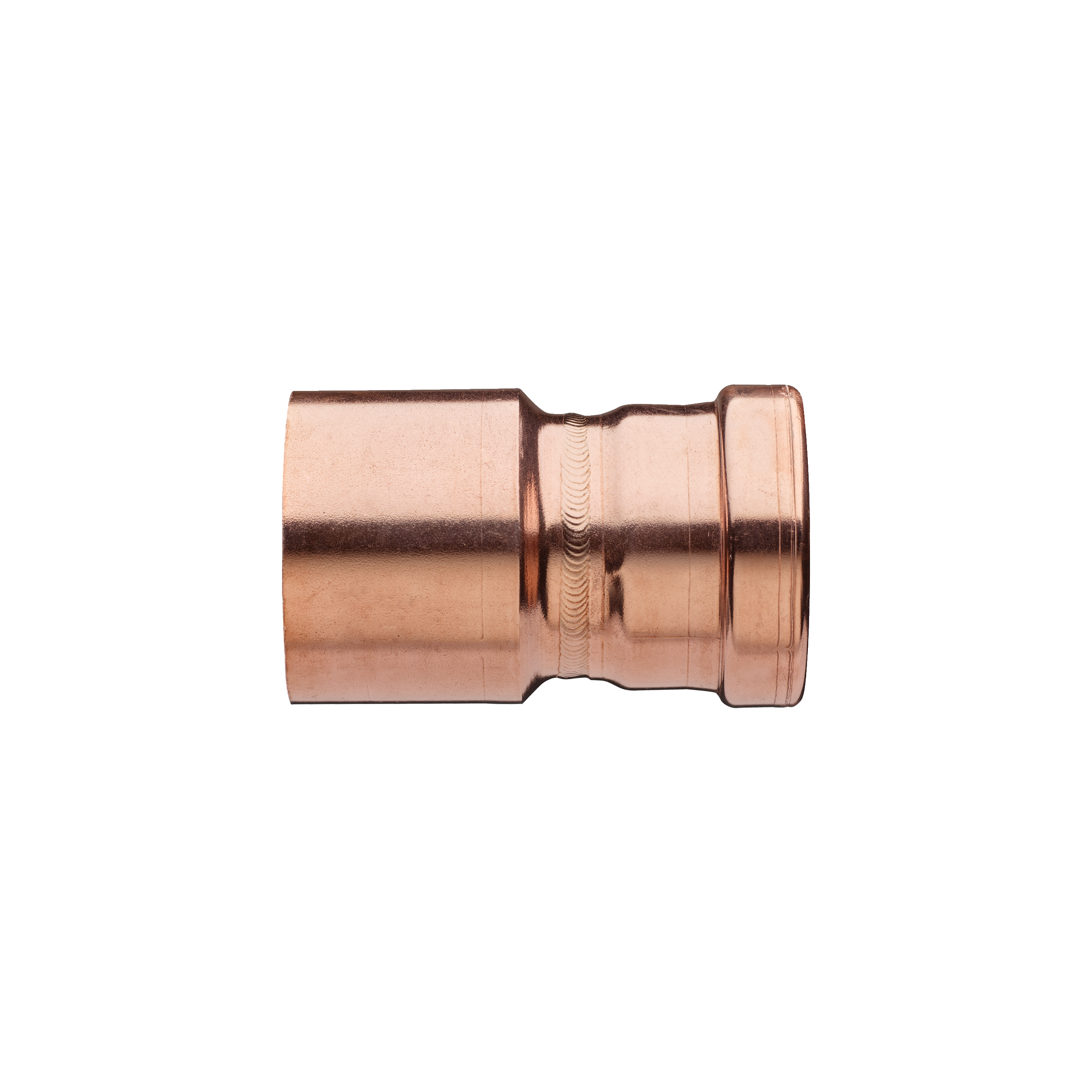

Copper M/F reducer.

Technical specifications

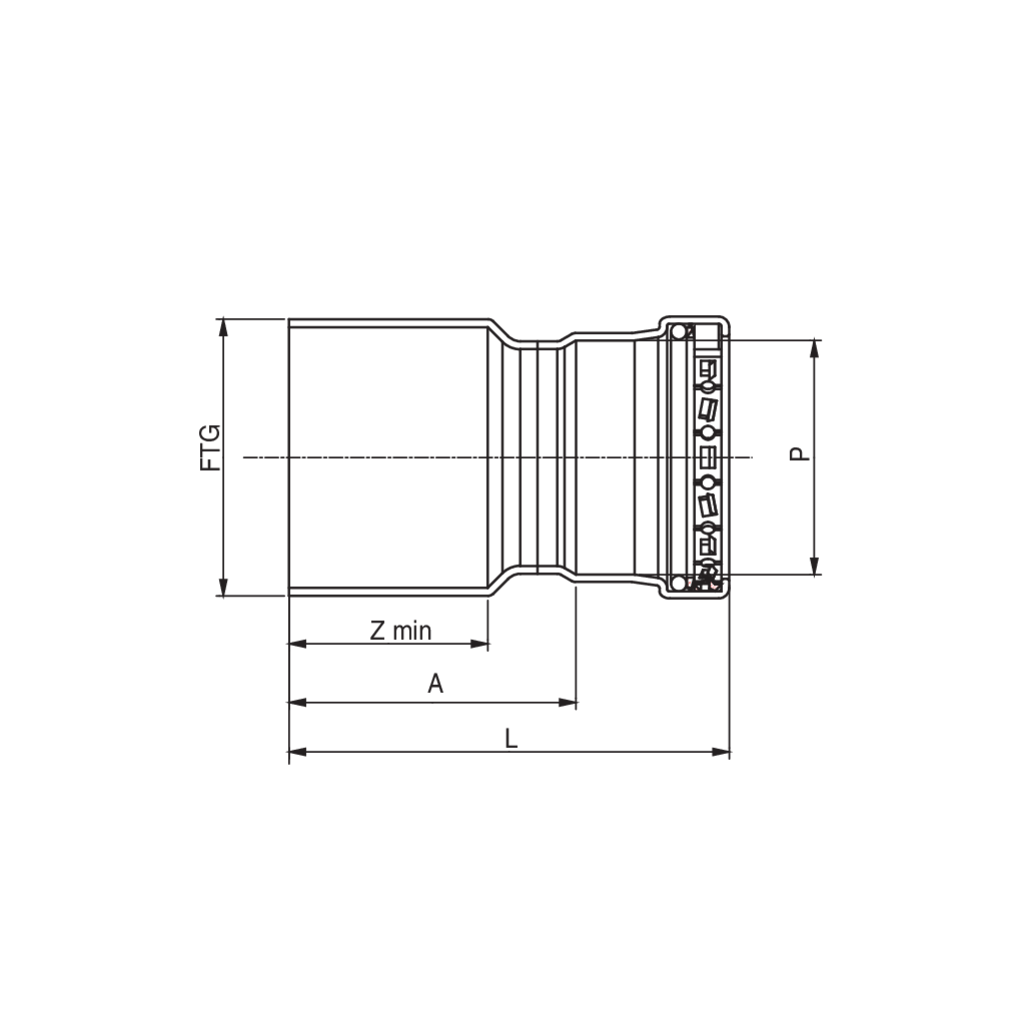

FTG x P	BAG	MASTER BOX	PART NO.	A	L	Zmin
3'' x 2 1/2''	1	10	5V04001412	2.28	3.23	4.96
4'' x 2 1/2''	1	6	5V04001812	2.56	4.02	5.75
4'' x 3''	1	6	5V04001814	2.56	3.86	5.83

Available media and videos

BIM

5V0400_Copper.zip
