5V0800

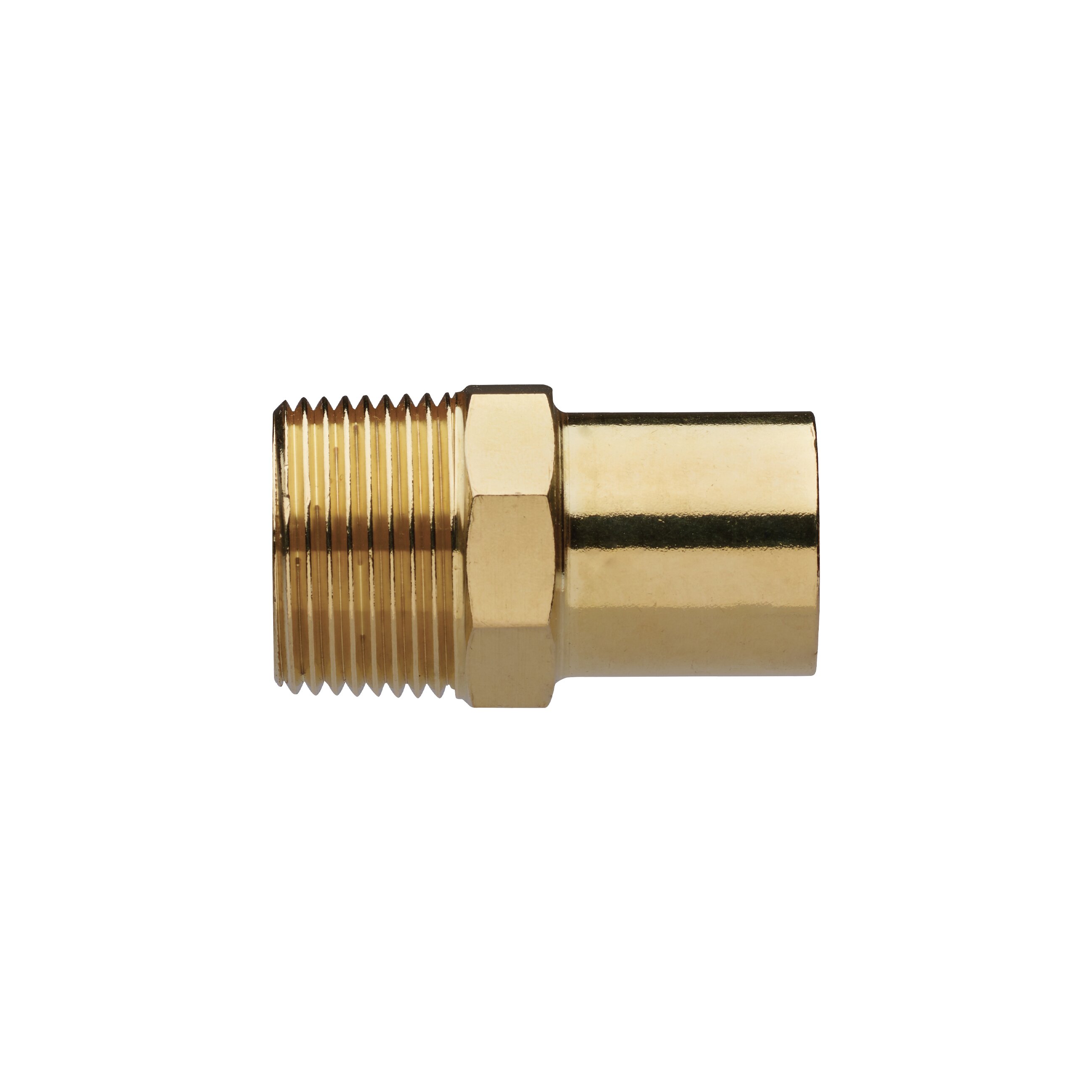

Brass M/male thread adapter.

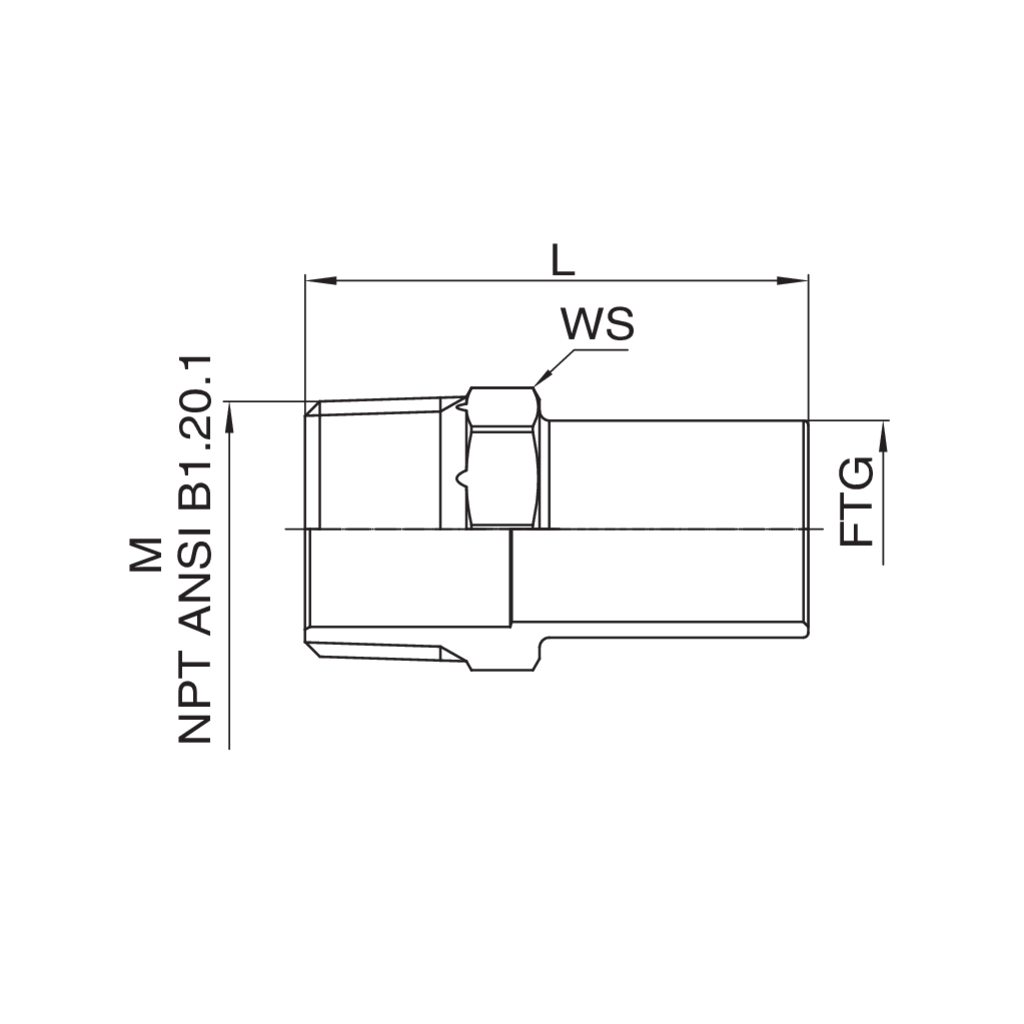

Technical specifications

FTG x M	DN	BAG	MASTER BOX	PART NO.	L	WS
1/2'' x 1/2''	15	5	300	5V08000404	1.83	0.87
1'' x 1''	25	5	150	5V08000606	2.28	1.34
1 1/4'' x 1 1/4''	32	1	60	5V08000707	2.60	1.89
1 1/2'' x 1 1/2''	40	1	40	5V08000808	3.05	2.13
2'' x 2''	50	1	20	5V08001010	3.37	2.64
3/4'' x 3/4''	20	5	150	5V08000505	2.03	1.06

Available media and videos

BIM

5V0800_Brass.zip
