A Bonomi Group company

BONOMI PRESS

5V0900

Made in Italy

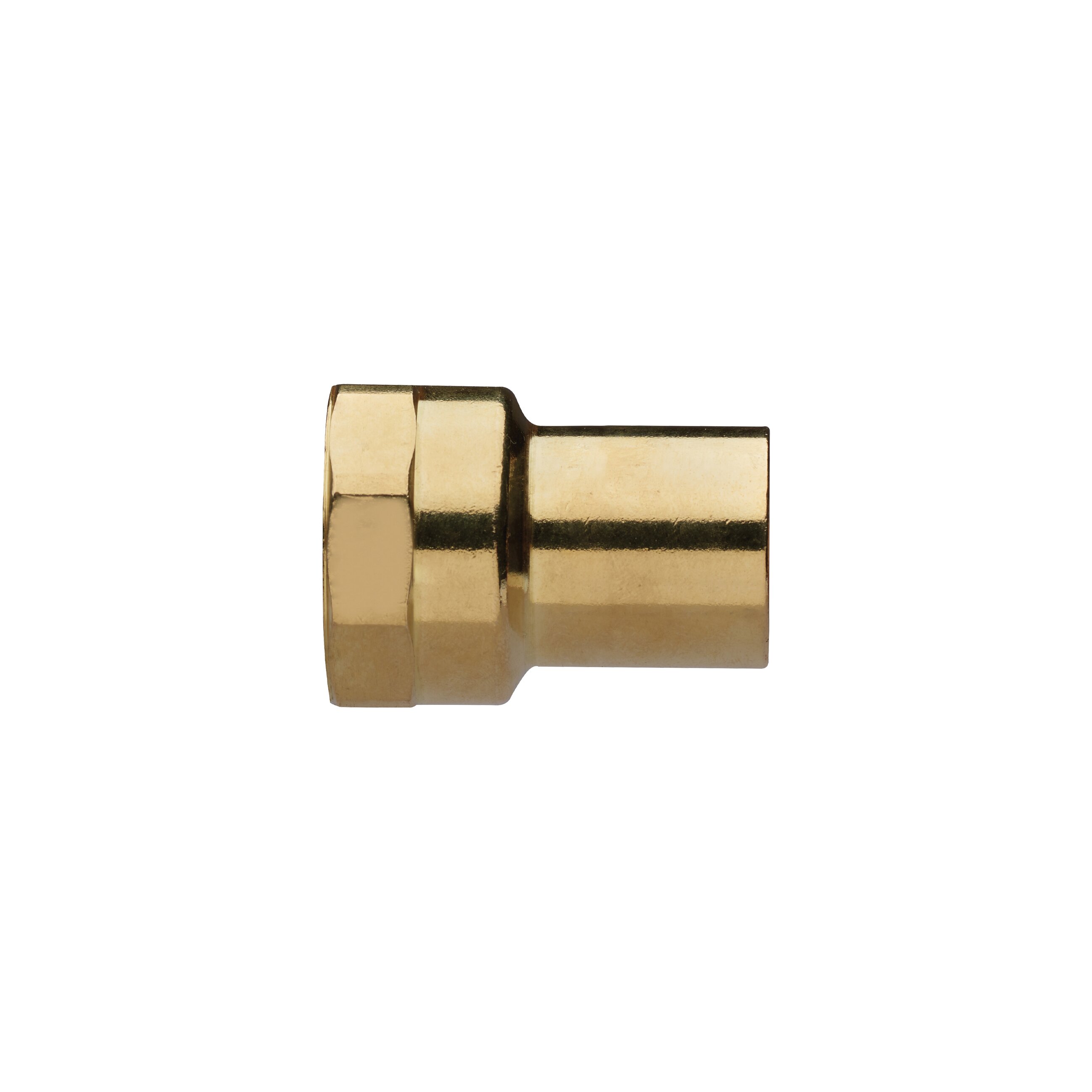

Brass M/female thread adapter.

Technical specifications

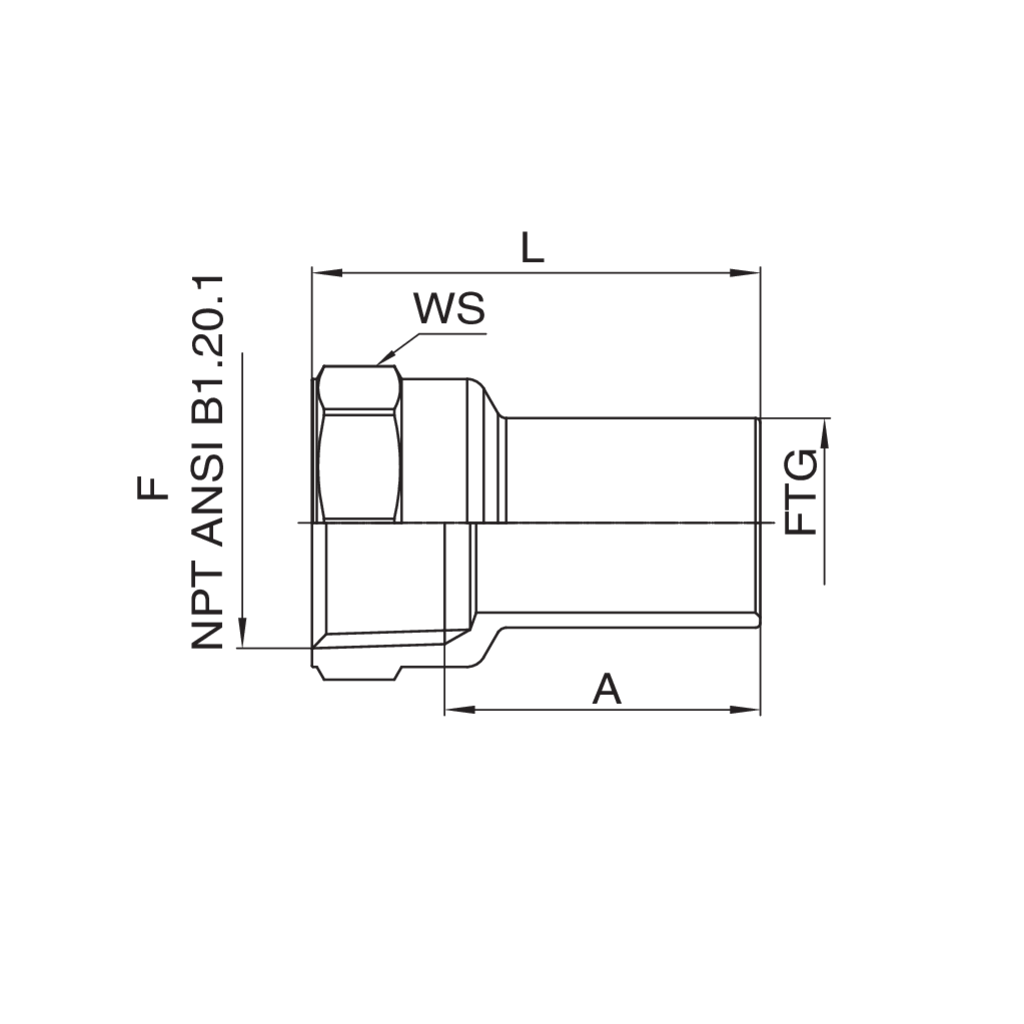

FTG x F	BAG	MASTER BOX	PART NO.	L	A	WS
1/2'' x 1/2''	5	200	5V09000404	1.71	1.18	0.98
1'' x 1''	1	75	5V09000606	2.03	1.37	1.50
1 1/4'' x 1 1/4''	1	50	5V09000707	2.34	1.66	1.89
1 1/2'' x 1 1/2''	1	30	5V09000808	2.68	2.00	2.13
2'' x 2''	1	25	5V09001010	2.87	2.18	2.64
3/4'' x 1/2''	5	150	5V09000504	1.82	1.28	0.98
3/4'' x 3/4''	5	150	5V09000505	1.87	1.32	1.22

Available media and videos

BIM

5V0900_Brass.zip
