5V1300

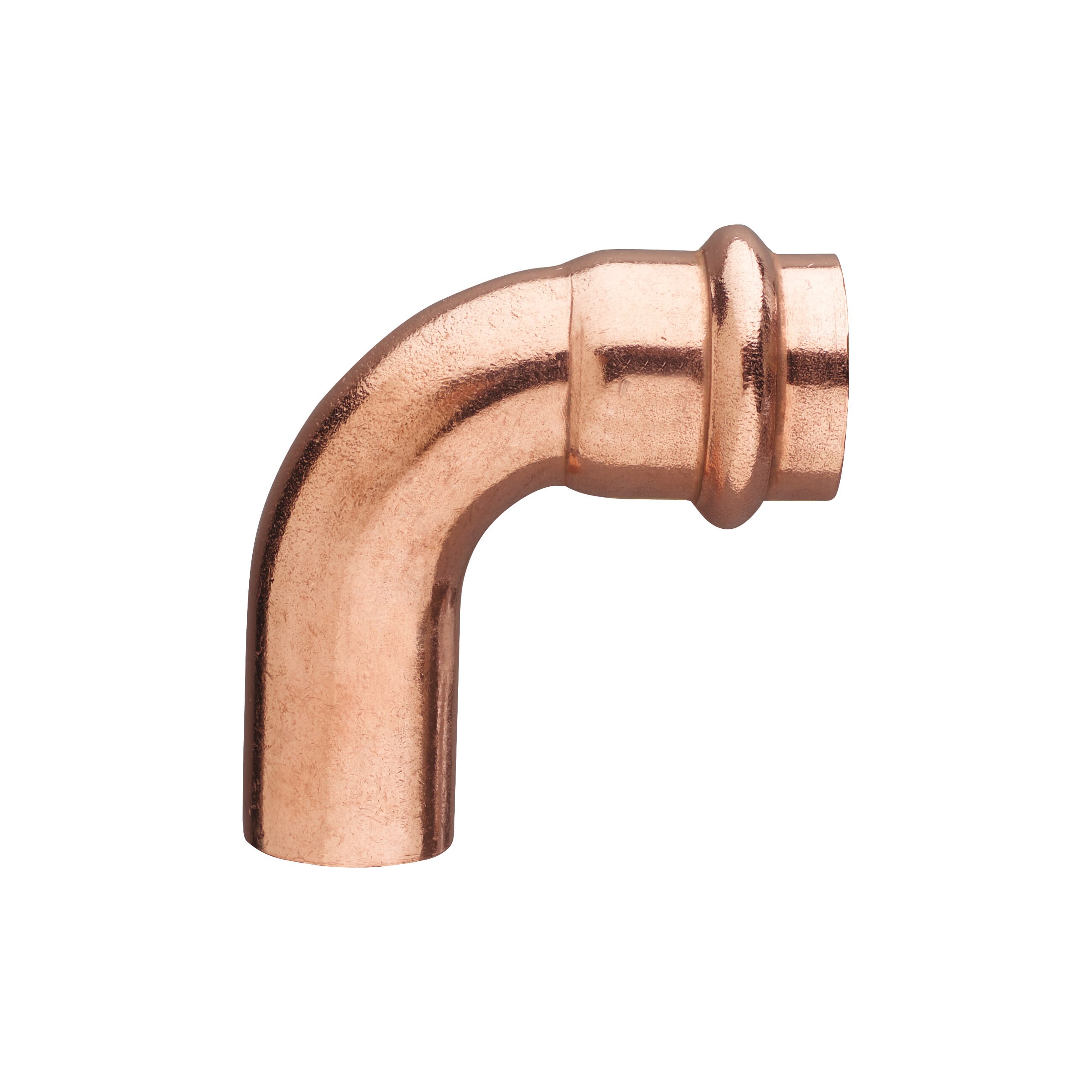

Copper M/F 90° elbow.

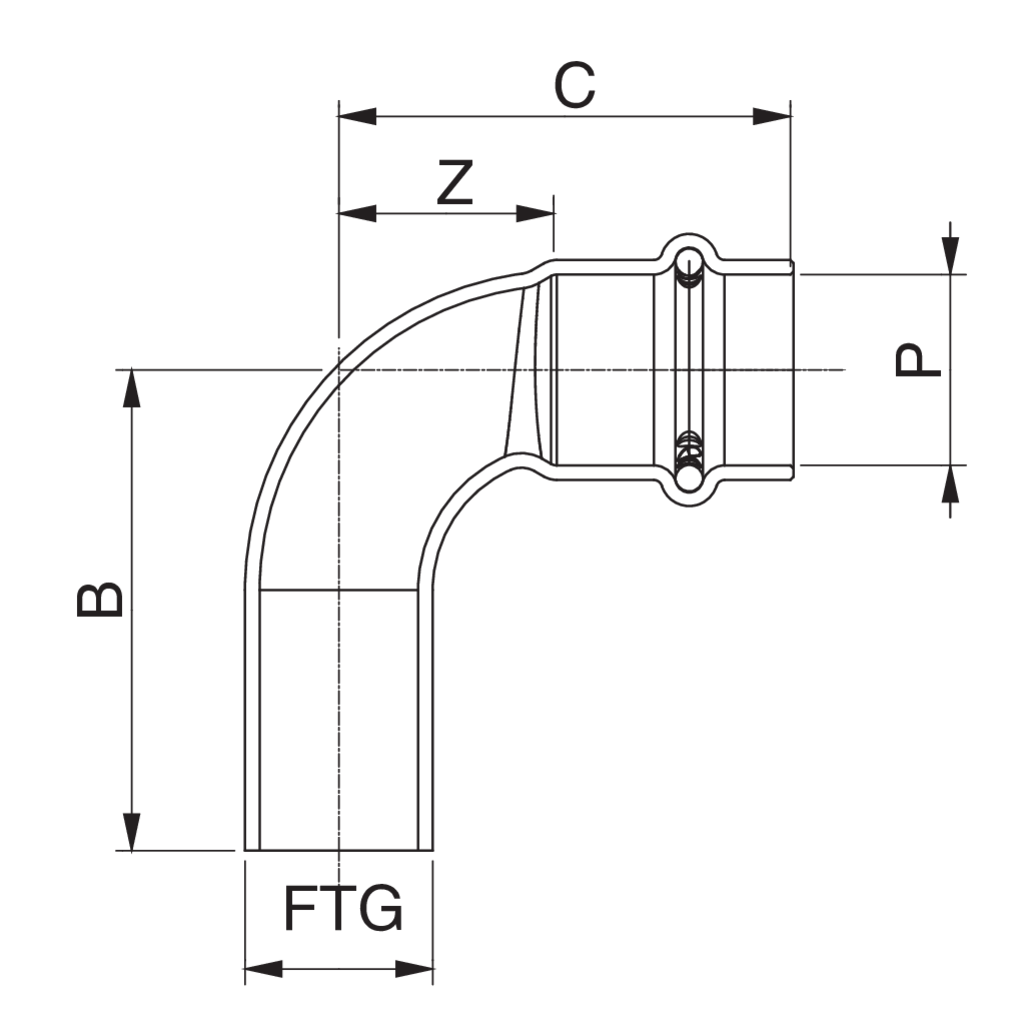

Technical specifications

FTG x P	BAG	MASTER BOX	PART NO.	B	Z	C
1/2'' x 1/2''	10	250	5V130004	1.42	0.63	1.38
1'' x 1''	5	90	5V130006	2.09	1.02	1.93
1 1/4'' x 1 1/4''	5	65	5V130007	2.46	1.30	2.32
1 1/2'' x 1 1/2''	1	20	5V130008	3.07	1.47	2.87
2'' x 2''	1	12	5V130010	3.76	2.03	3.60
3/4'' x 3/4''	10	120	5V130005	1.85	0.79	1.69
