5V1500

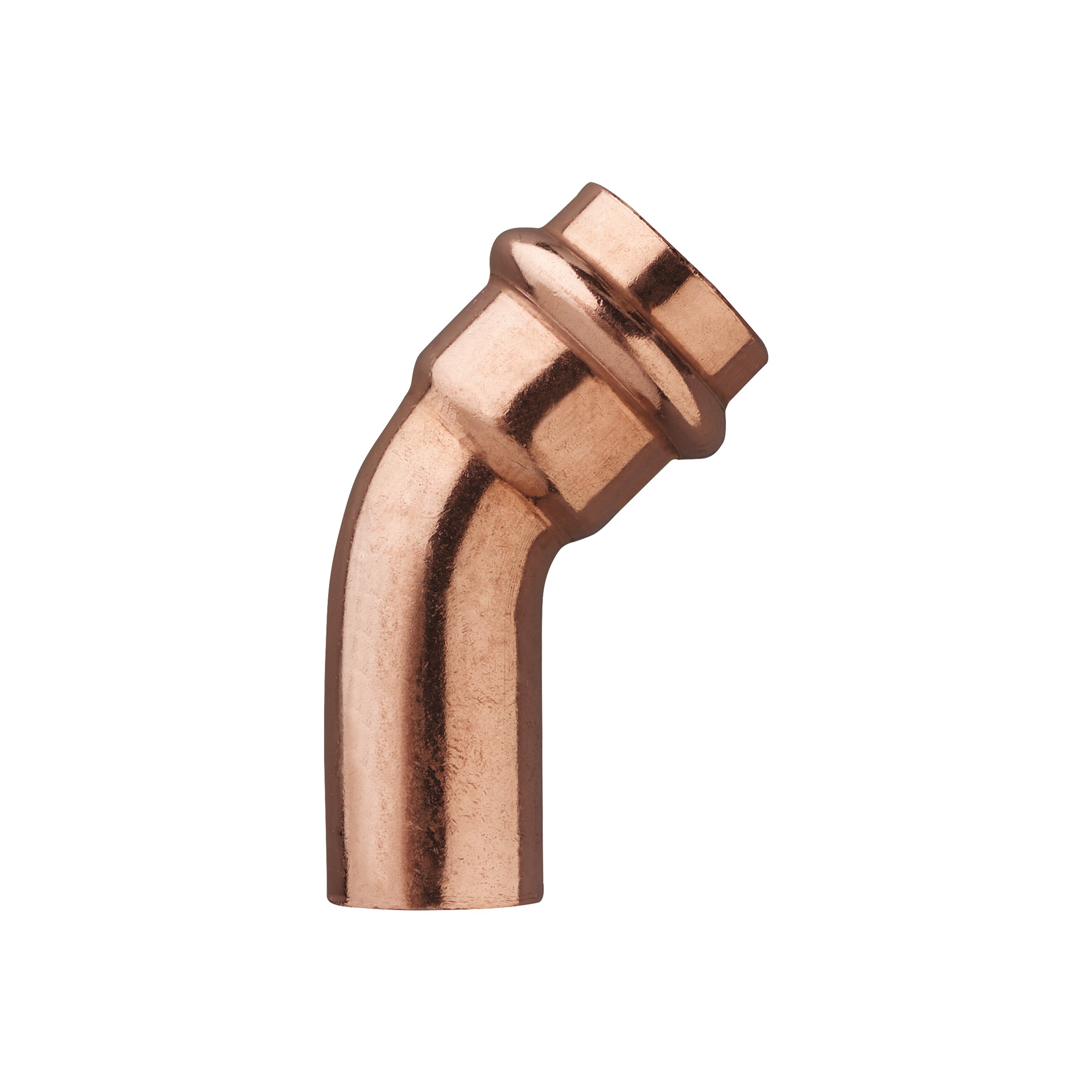

Copper M/F 45° elbow.

Technical specifications

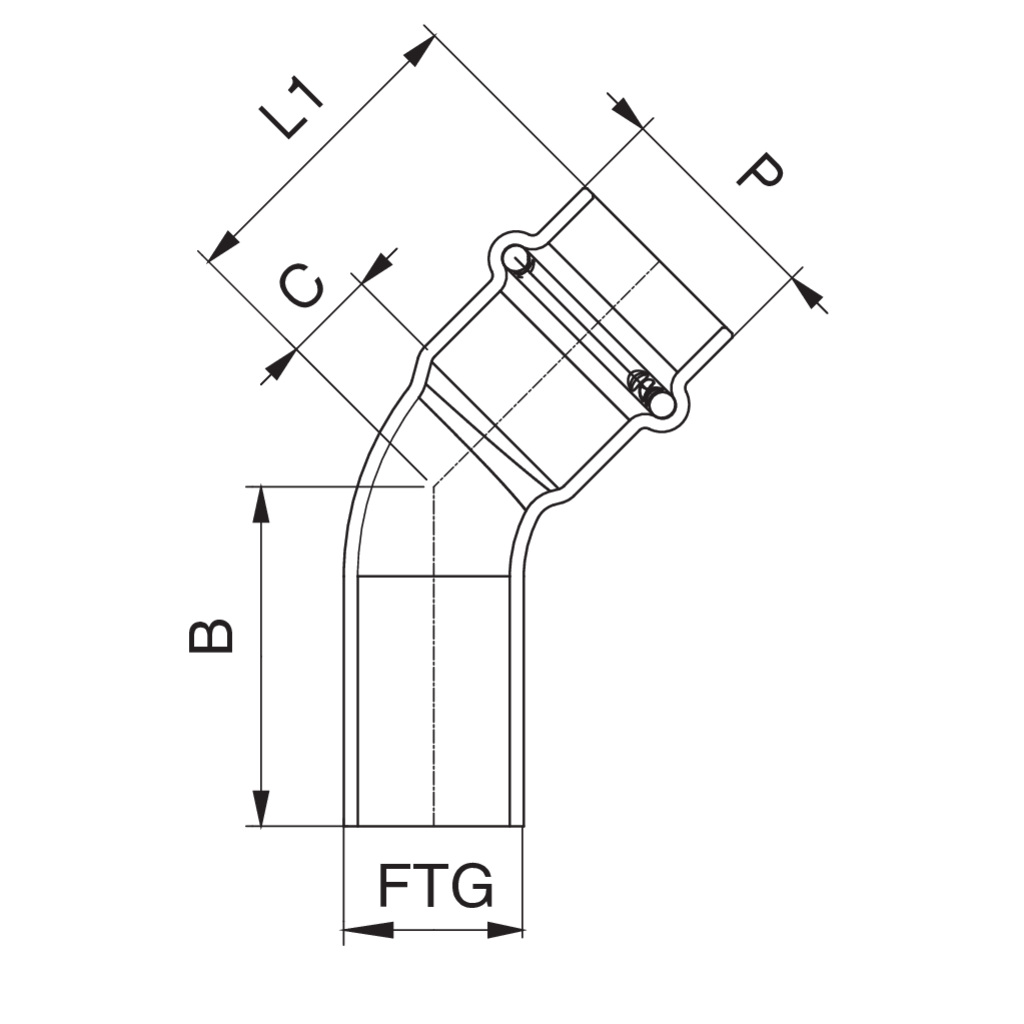

FTG x P	BAG	MASTER BOX	PART NO.	B	C	L1
1/2'' x 1/2''	10	250	5V150004	1.10	0.31	1.06
1'' x 1''	5	60	5V150006	1.48	0.46	1.36
1 1/4'' x 1 1/4''	5	40	5V150007	1.67	0.57	1.59
1 1/2'' x 1 1/2''	1	24	5V150008	2.17	0.67	2.09
2'' x 2''	1	16	5V150010	2.54	0.88	2.46
3/4'' x 3/4''	10	120	5V150005	1.38	0.36	1.26
