5V1500

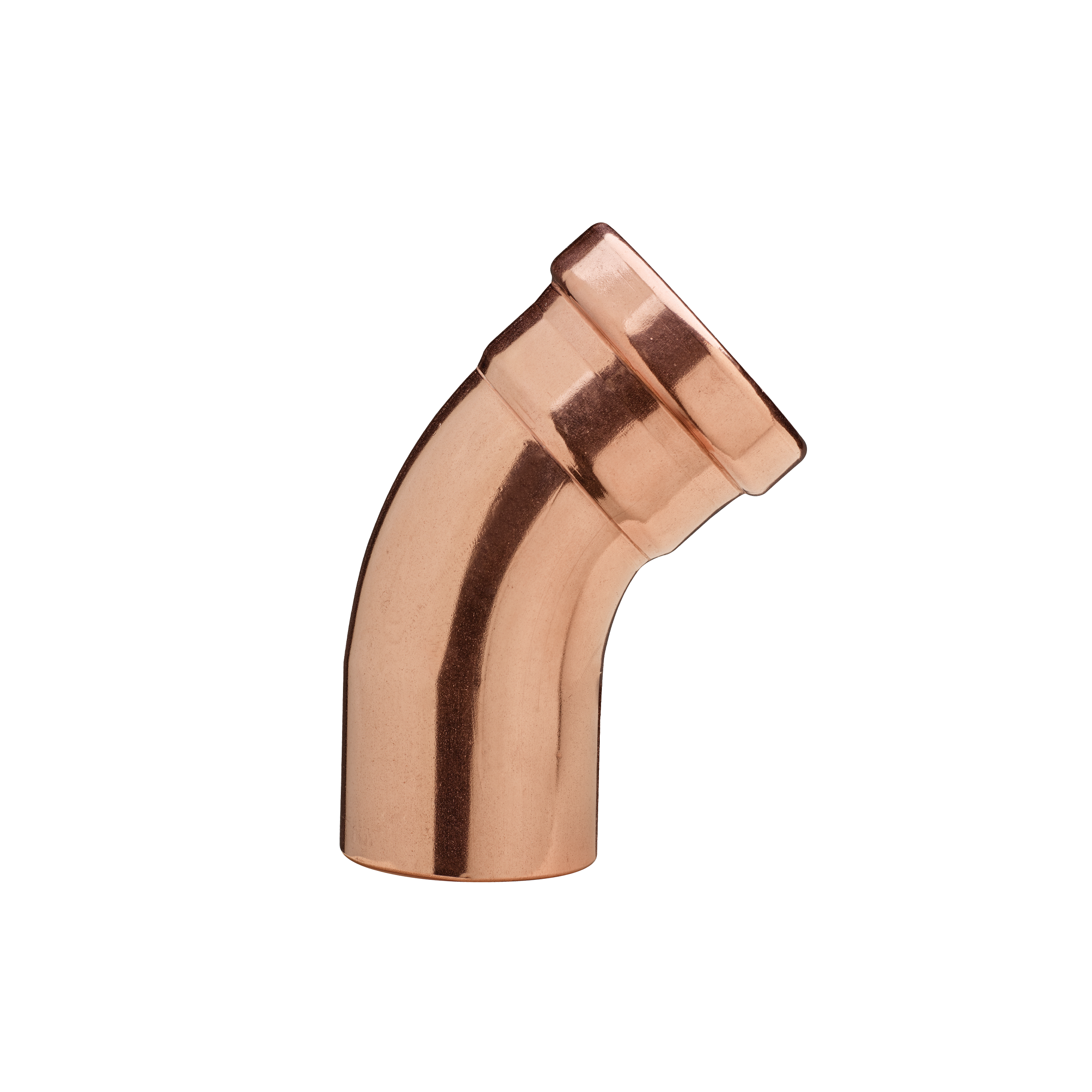

Copper M/F 45° elbow.

Technical specifications

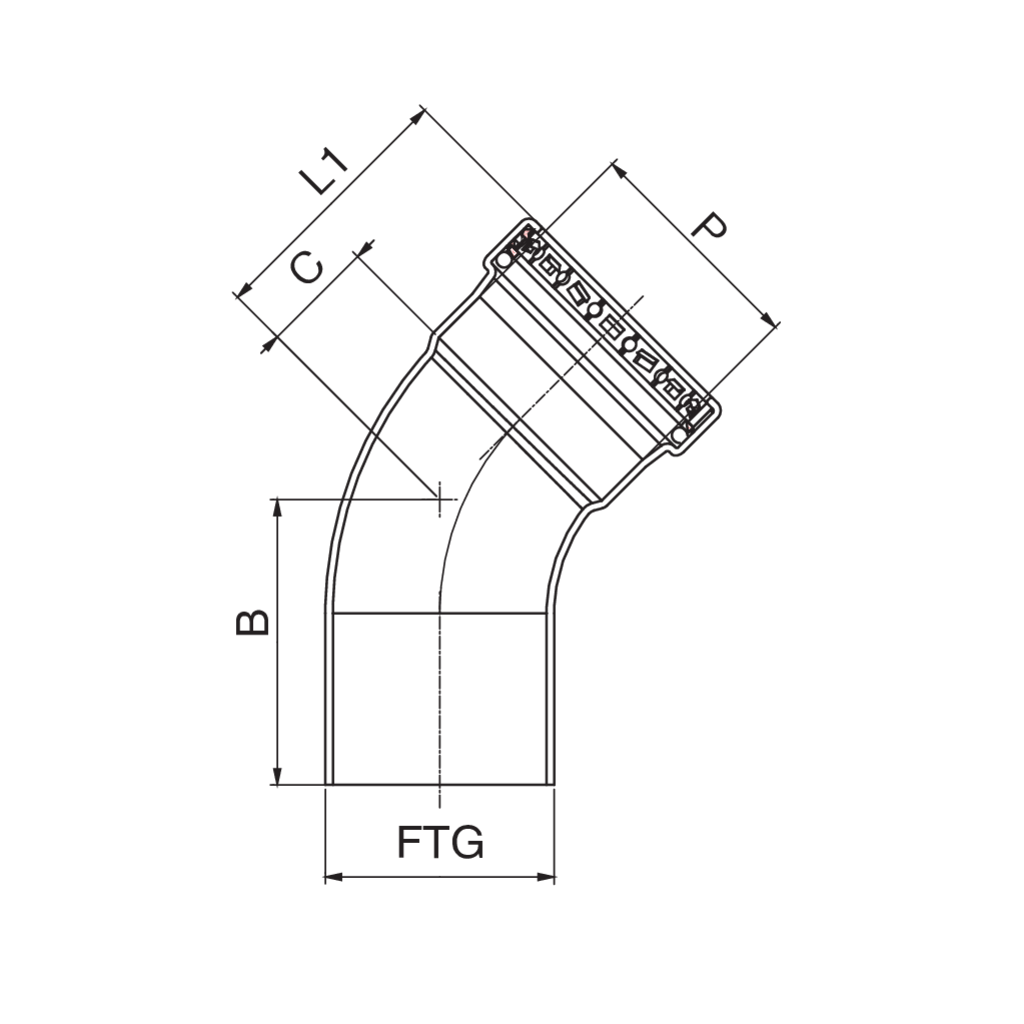

FTG x P	BAG	MASTER BOX	PART NO.	B	C	L1
2 1/2'' x 2 1/2''	1	9	5V150012	3.30	1.30	3.00
3'' x 3''	1	5	5V150014	3.90	1.60	3.50
4'' x 4''	1	3	5V150018	4.60	2.00	4.40

Available media and videos

BIM

5V1300-5V1500_Copper.zip
