5V3200

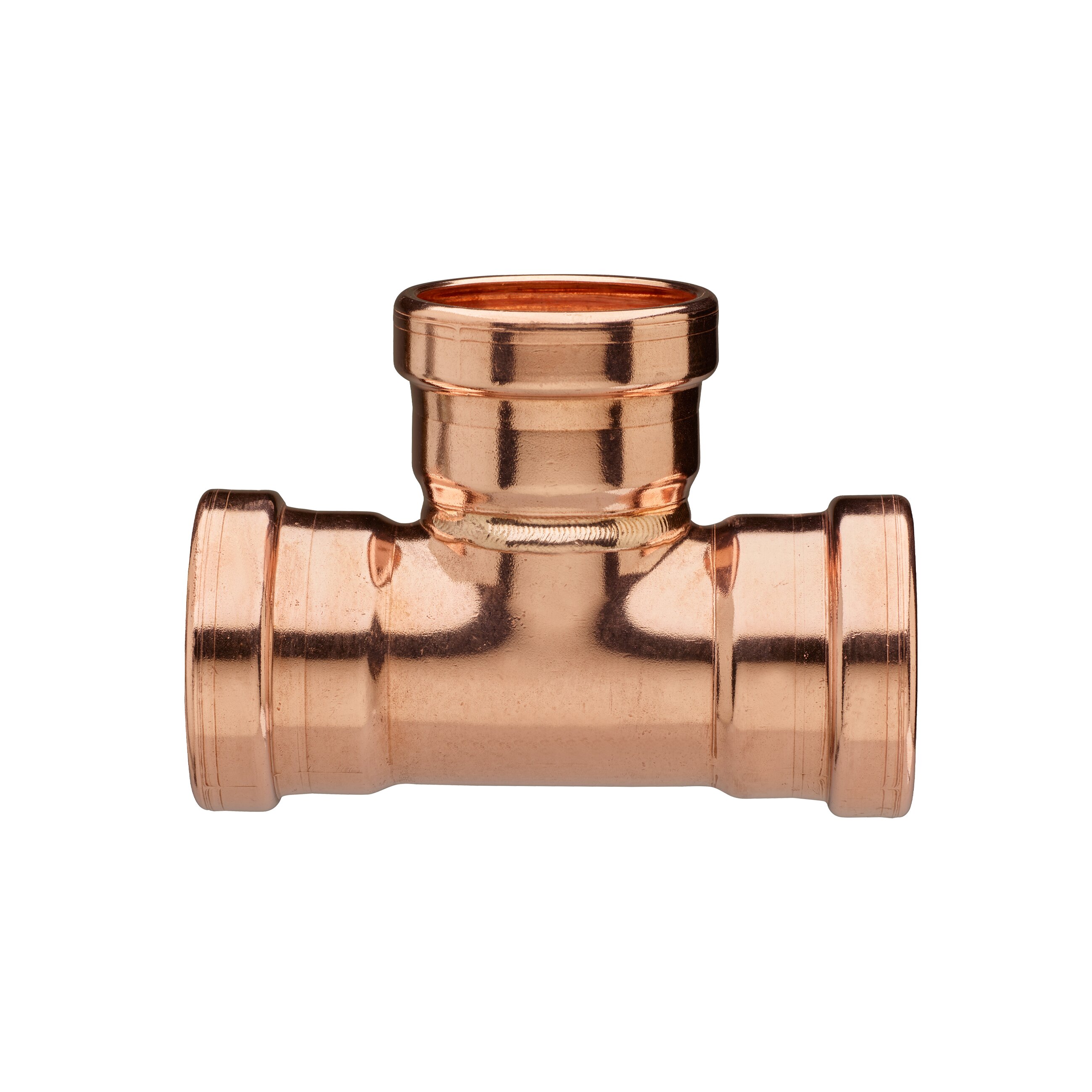

Copper F/F/F tee.

Technical specifications

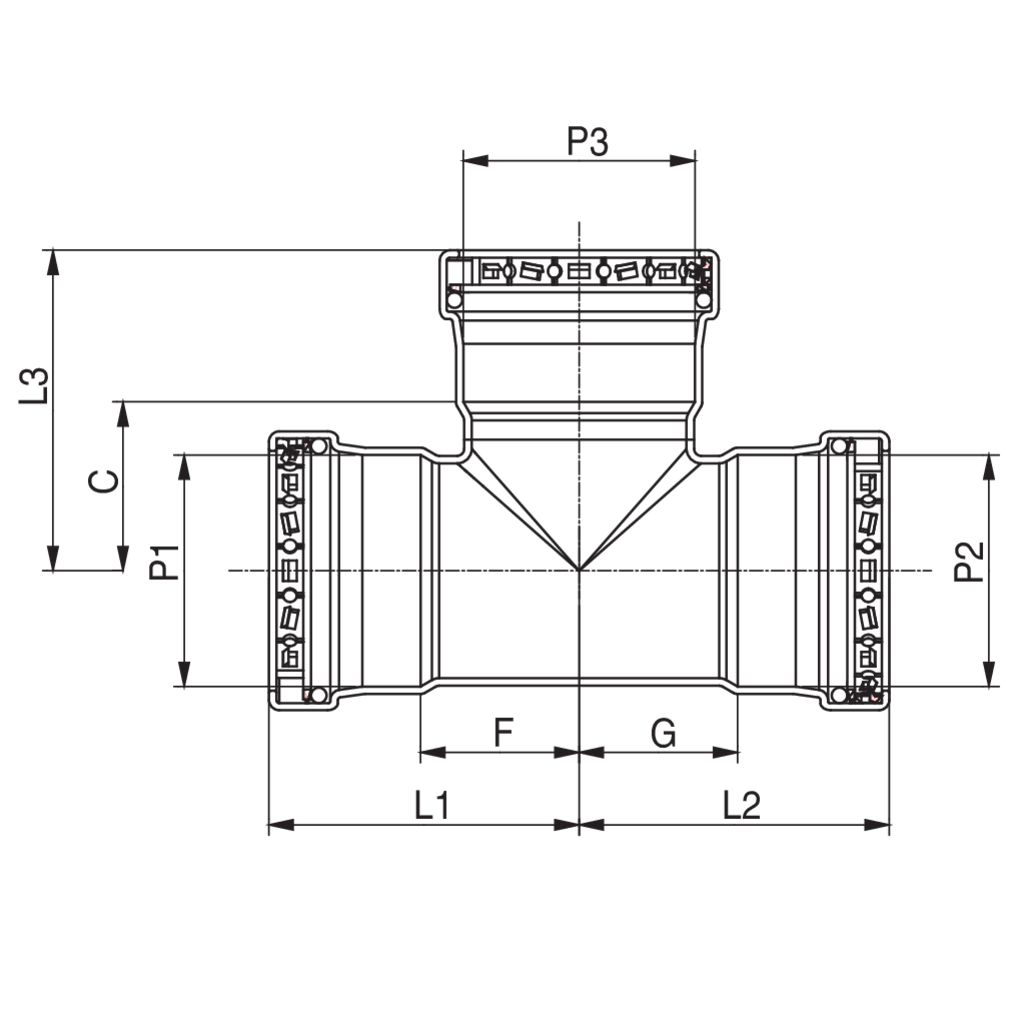

P1 x P2 x P3	BAG	MASTER BOX	PART NO.	L1	F	L2	G	L3	C
2 1/2'' x 2 1/2'' x 2 1/2''	1	8	5V320012	3.54	1.81	3.54	1.81	3.66	1.93
3'' x 3'' x 3''	1	2	5V320014	4.06	2.09	4.06	2.09	4.21	2.24
4'' x 4'' x 4''	1	2	5V320018	4.96	2.56	4.96	2.56	5.12	2.72

Available media and videos

BIM

5V3200_Copper.zip
