5V3300

Made in Italy

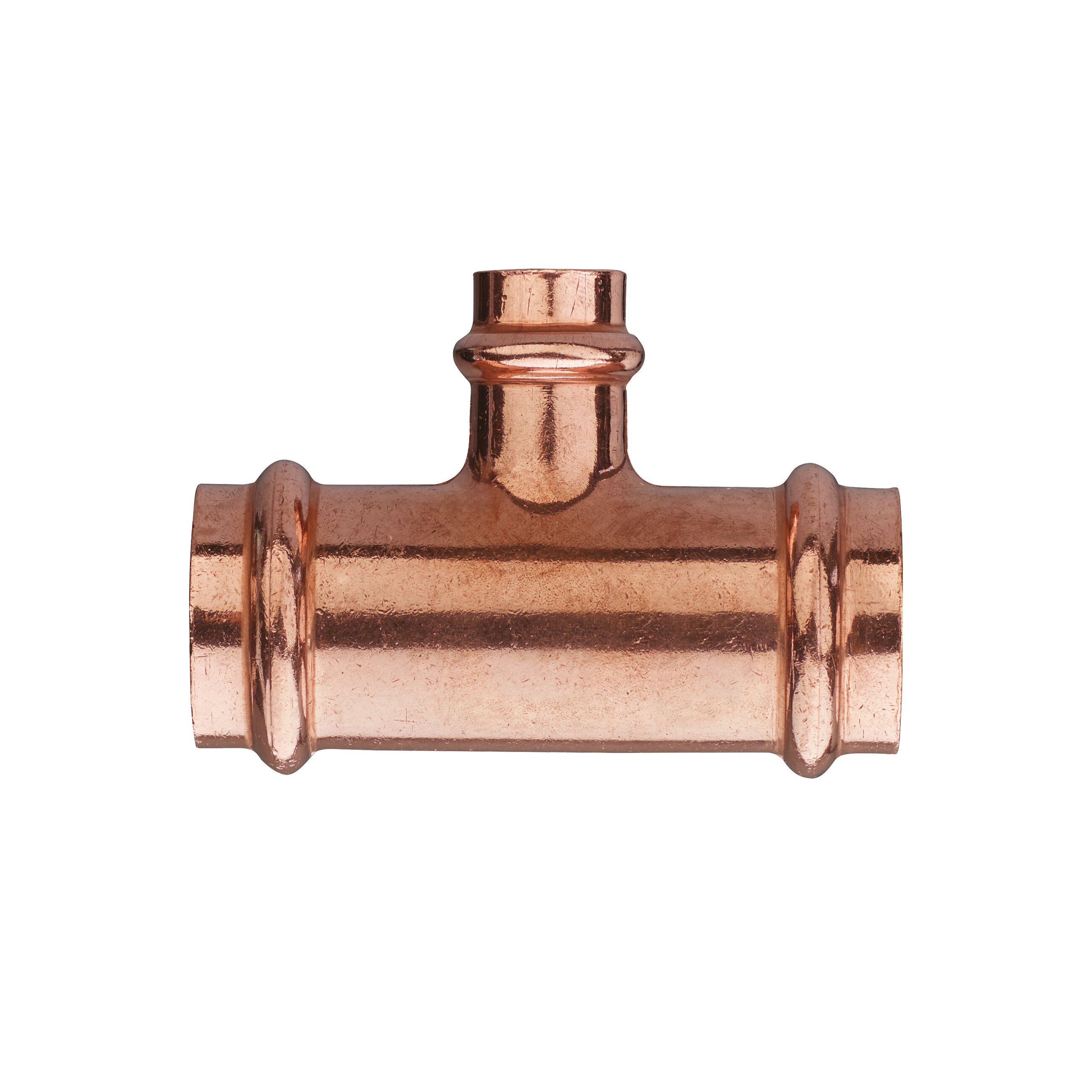

Copper F/F/F reducing tee.

Technical specifications

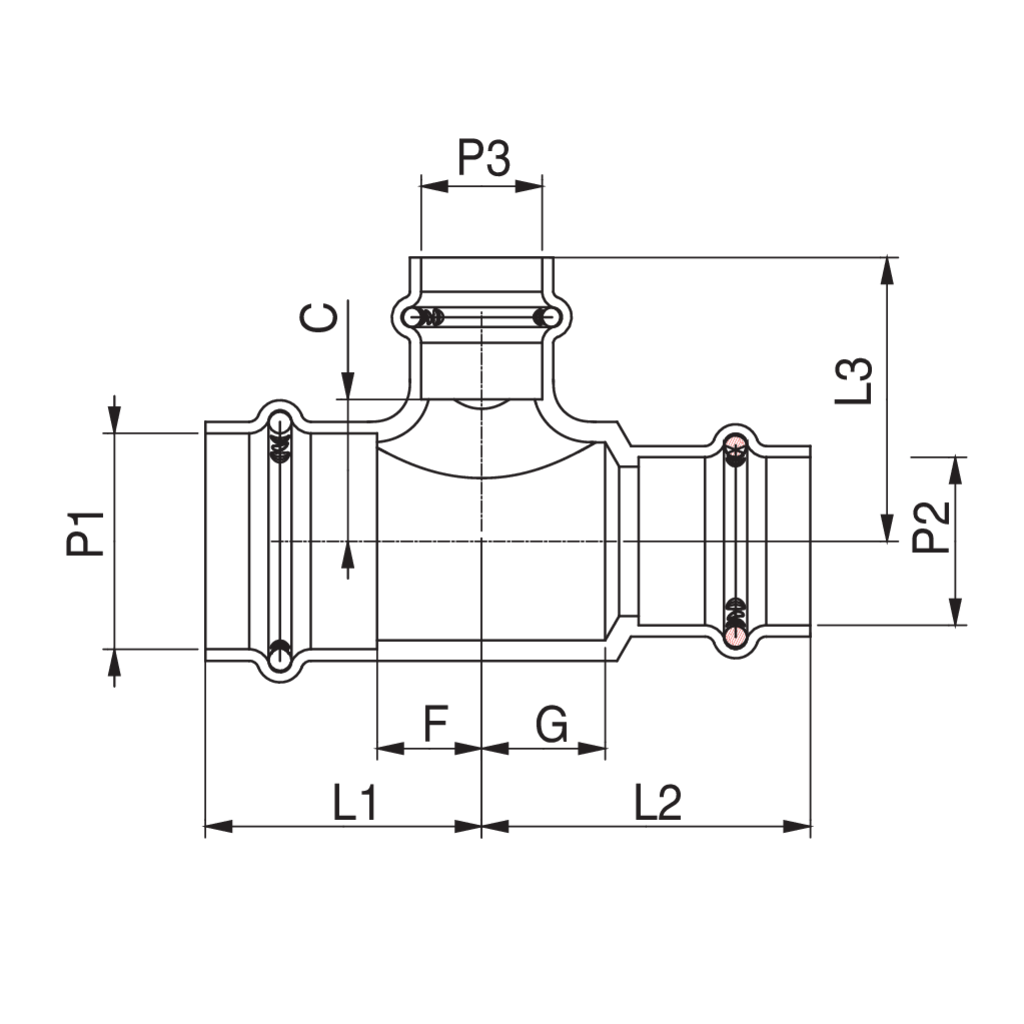

P1 x P2 x P3	BAG	MASTER BOX	PART NO.	L1	F	L2	G	L3	C
1'' x 1'' x 1/2''	5	100	5V3300060604	1.46	0.55	1.46	0.55	1.50	0.75
1 1/4'' x 1 1/4'' x 1/2''	1	40	5V3300070704	1.65	0.63	1.65	0.63	1.61	0.87
1 1/4'' x 1 1/4'' x 1''	1	35	5V3300070706	1.85	0.81	1.85	0.81	1.73	0.83
1 1/2'' x 1 1/2'' x 1/2''	1	24	5V3300080804	2.56	1.14	2.56	1.14	2.17	1.42
1 1/2'' x 1 1/2'' x 1''	1	24	5V3300080806	2.56	1.14	2.56	1.14	2.28	1.38
1 1/2'' x 1 1/2'' x 1 1/4''	1	22	5V3300080807	2.56	1.14	2.56	1.14	2.40	1.38
1'' x 1'' x 3/4''	5	70	5V3300060605	1.63	0.73	1.63	0.73	1.57	0.67
1 1/4'' x 1 1/4'' x 3/4''	1	35	5V3300070705	1.65	0.63	1.65	0.63	1.73	0.83
1 1/2'' x 1 1/2'' x 3/4''	1	26	5V3300080805	2.56	1.14	2.56	1.14	2.28	1.38
2'' x 2'' x 1/2''	1	16	5V3300101004	2.83	1.26	2.83	1.26	2.40	1.65
2'' x 2'' x 1''	1	15	5V3300101006	2.83	1.26	2.83	1.26	2.52	1.61
2'' x 2'' x 1 1/4''	1	14	5V3300101007	2.83	1.26	2.83	1.26	2.64	1.61
2'' x 2'' x 1 1/2''	1	12	5V3300101008	2.83	1.26	2.83	1.26	3.03	1.61
2'' x 2'' x 3/4''	1	16	5V3300101005	2.83	1.26	2.83	1.26	2.52	1.61
3/4'' x 3/4'' x 1/2''	5	100	5V3300050504	1.42	0.51	1.42	0.51	1.38	0.63
