5V3300

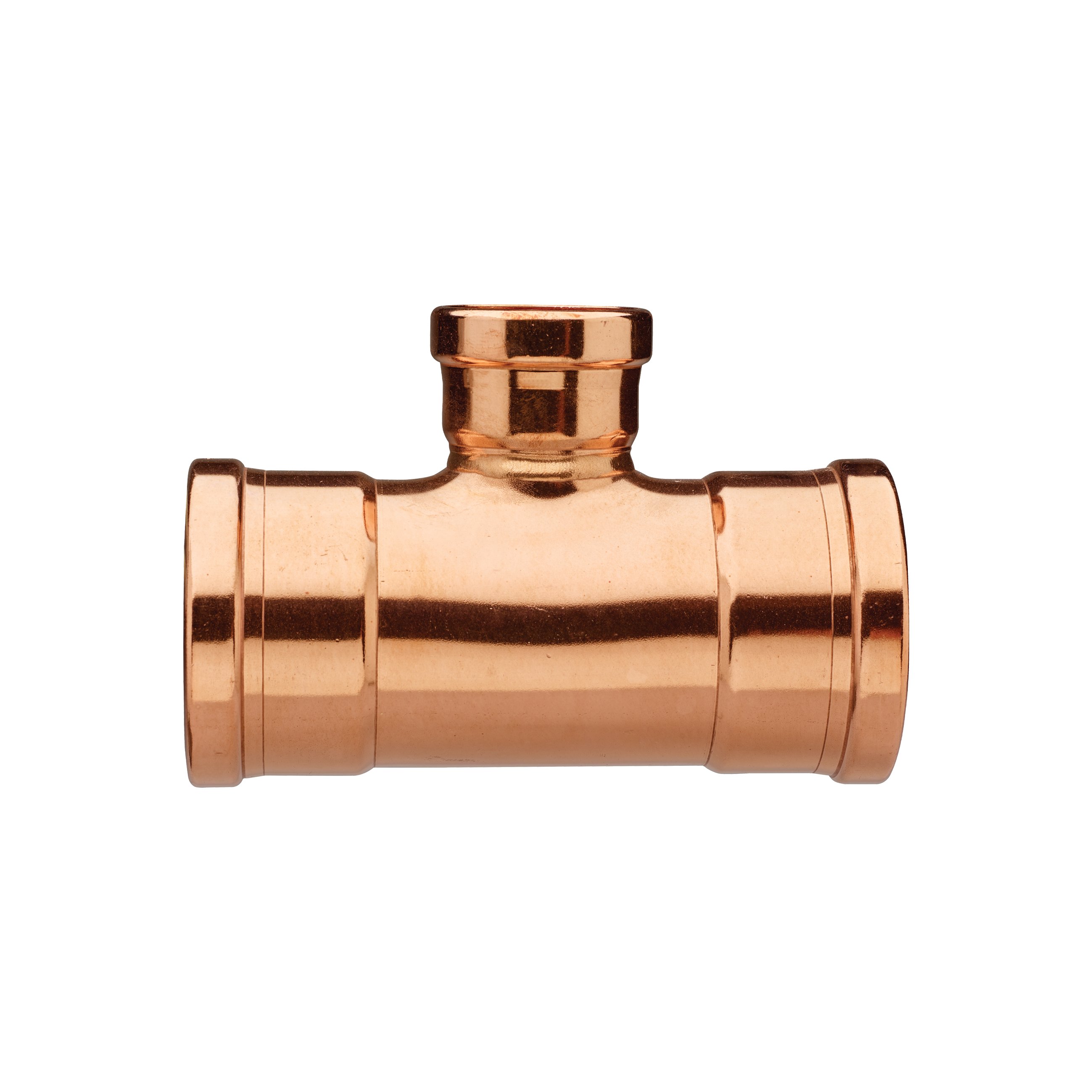

Copper F/F/F reducing tee.

Technical specifications

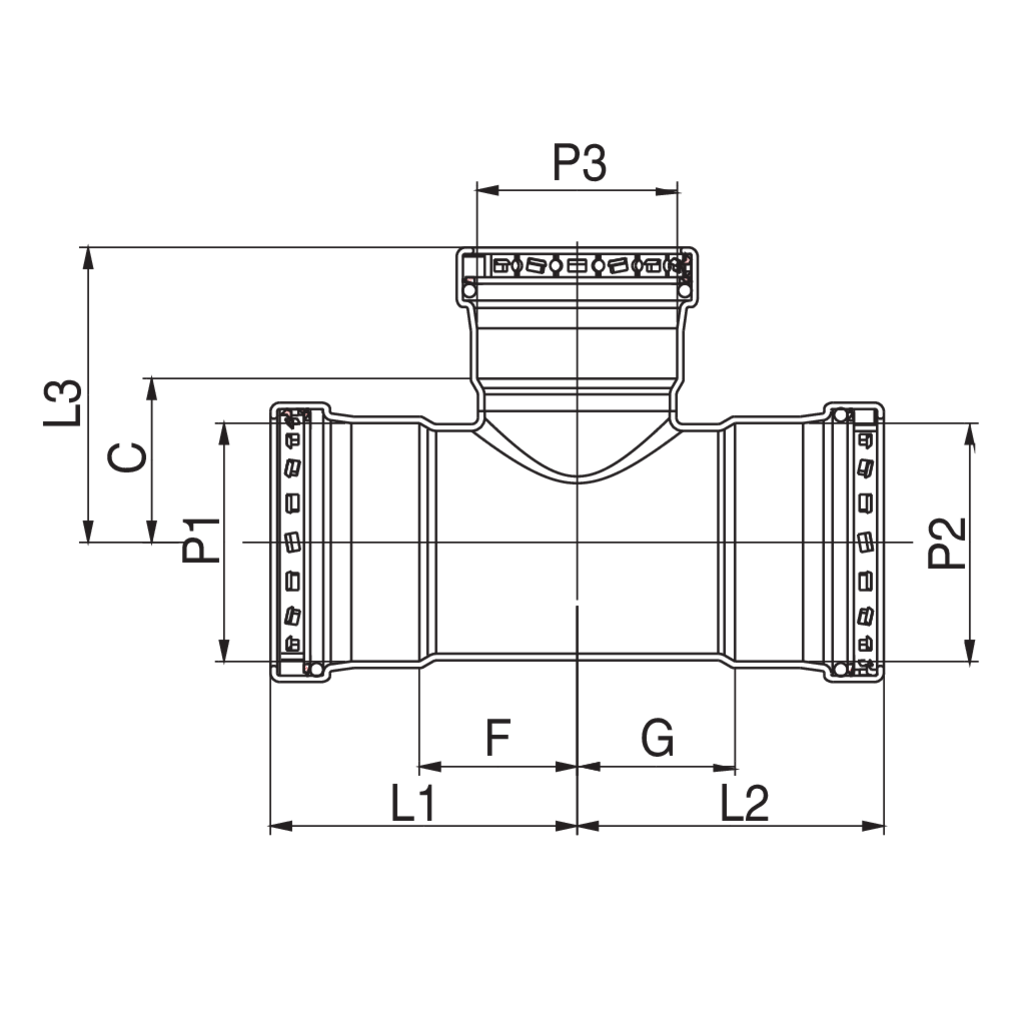

P1 x P2 x P3	BAG	MASTER BOX	PART NO.	L1	F	L2	G	L3	C
3'' x 3'' x 2 1/2''	1	3	5V3300141412	4.06	2.09	4.06	2.09	3.90	2.17
4'' x 4'' x 2 1/2''	1	2	5V3300181812	4.96	2.56	4.96	2.56	4.37	2.64
4'' x 4'' x 3''	1	2	5V3300181814	4.96	2.56	4.96	2.56	4.69	2.72

Available media and videos

BIM

5V3300_Copper.zip
