5V3400

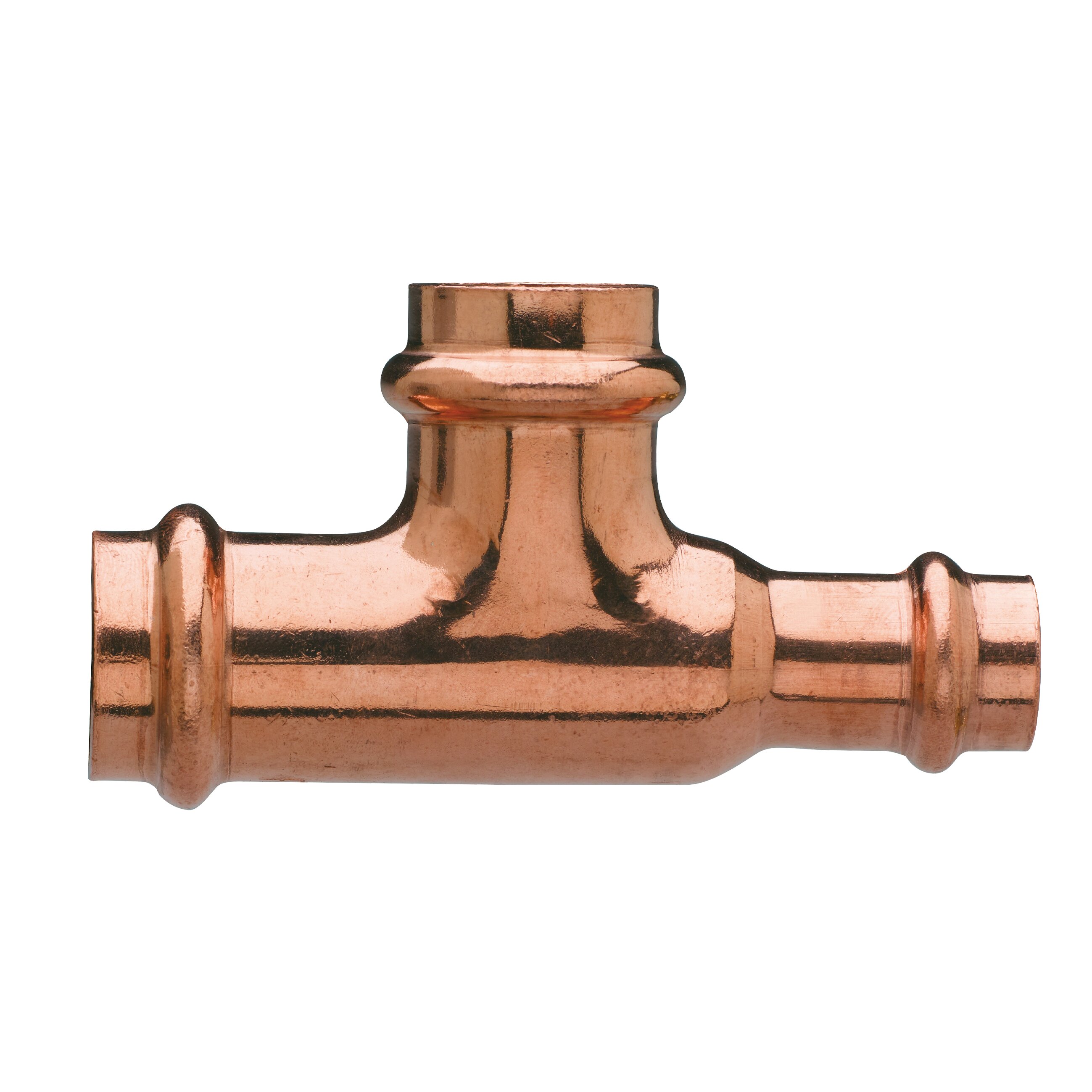

Copper F/F/F reducing T with one of the two lateral ends reduced more than the others.

Technical specifications

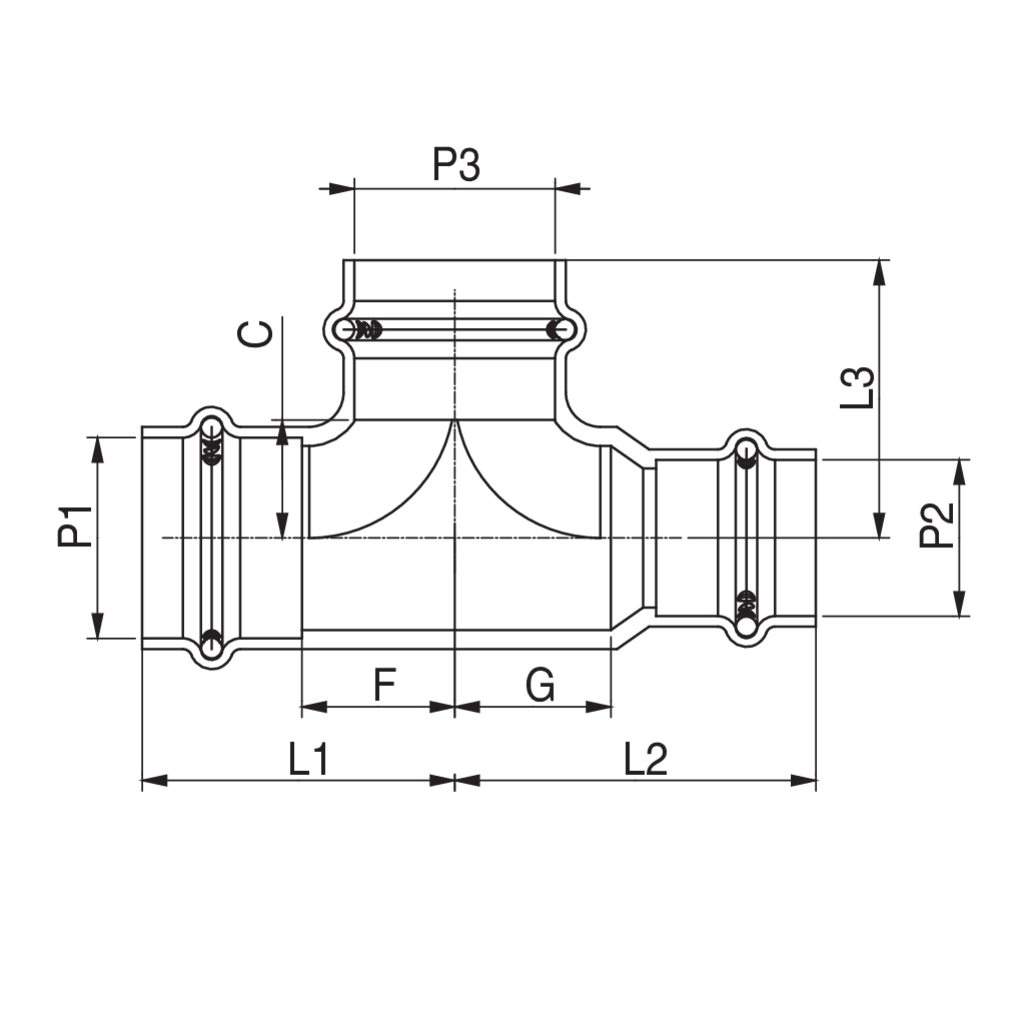

P1 x P2 x P3	BAG	MASTER BOX	PART NO.	L1	F	L2	G	L3	C
1'' x 1/2'' x 1''	5	65	5V3400060406	1.77	0.87	2.05	1.30	1.57	0.67
1 1/2'' x 1'' x 1 1/2''	1	24	5V3400080608	2.56	1.14	2.60	1.69	2.56	1.14
1'' x 3/4'' x 1''	5	60	5V3400060506	1.77	0.87	2.05	1.14	1.57	0.67
3/4'' x 1/2'' x 3/4''	5	100	5V3400050405	1.69	0.79	1.69	0.94	1.46	0.55
