BONOMI PRESS

5V5300

Made in Italy

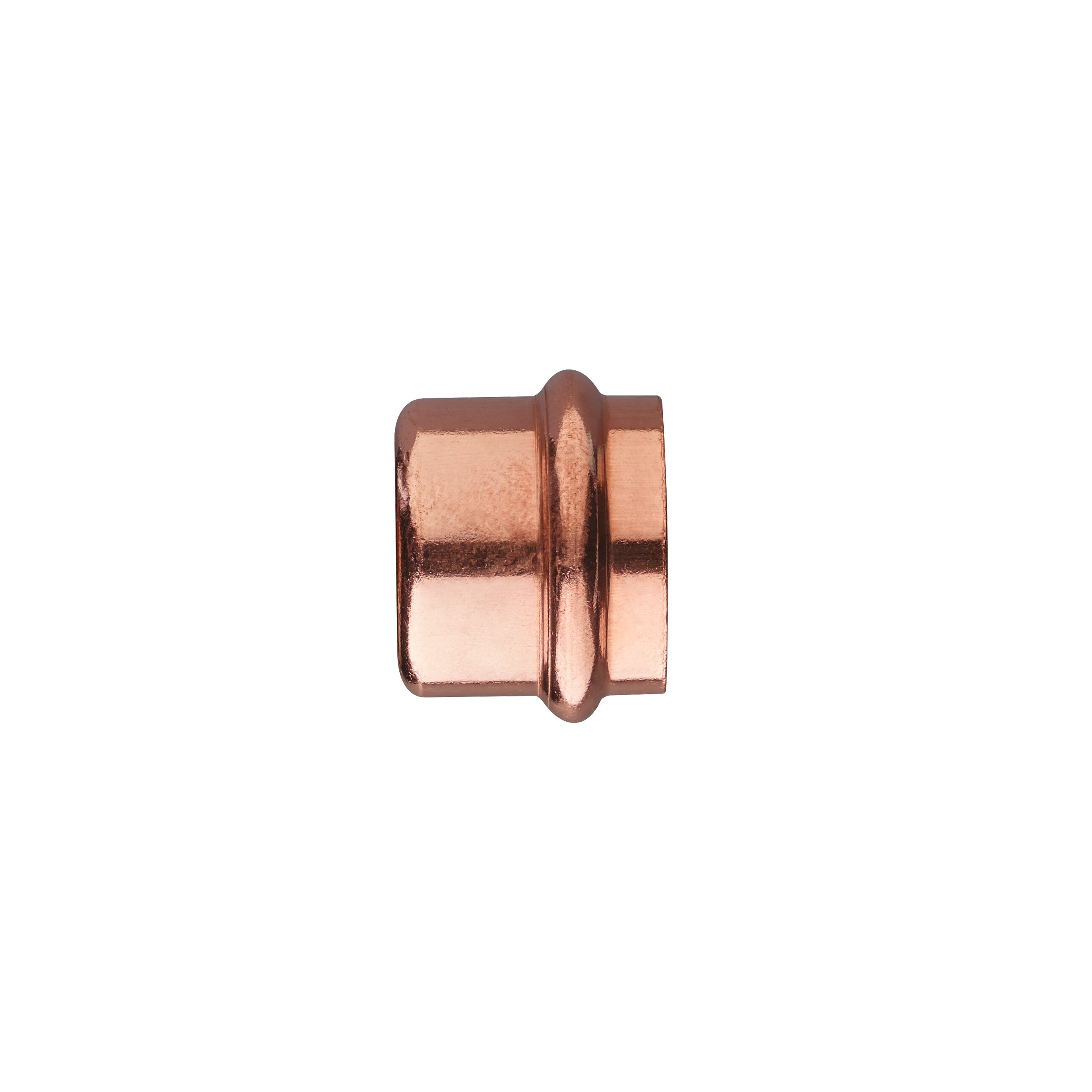

Copper F plug.

Technical specifications

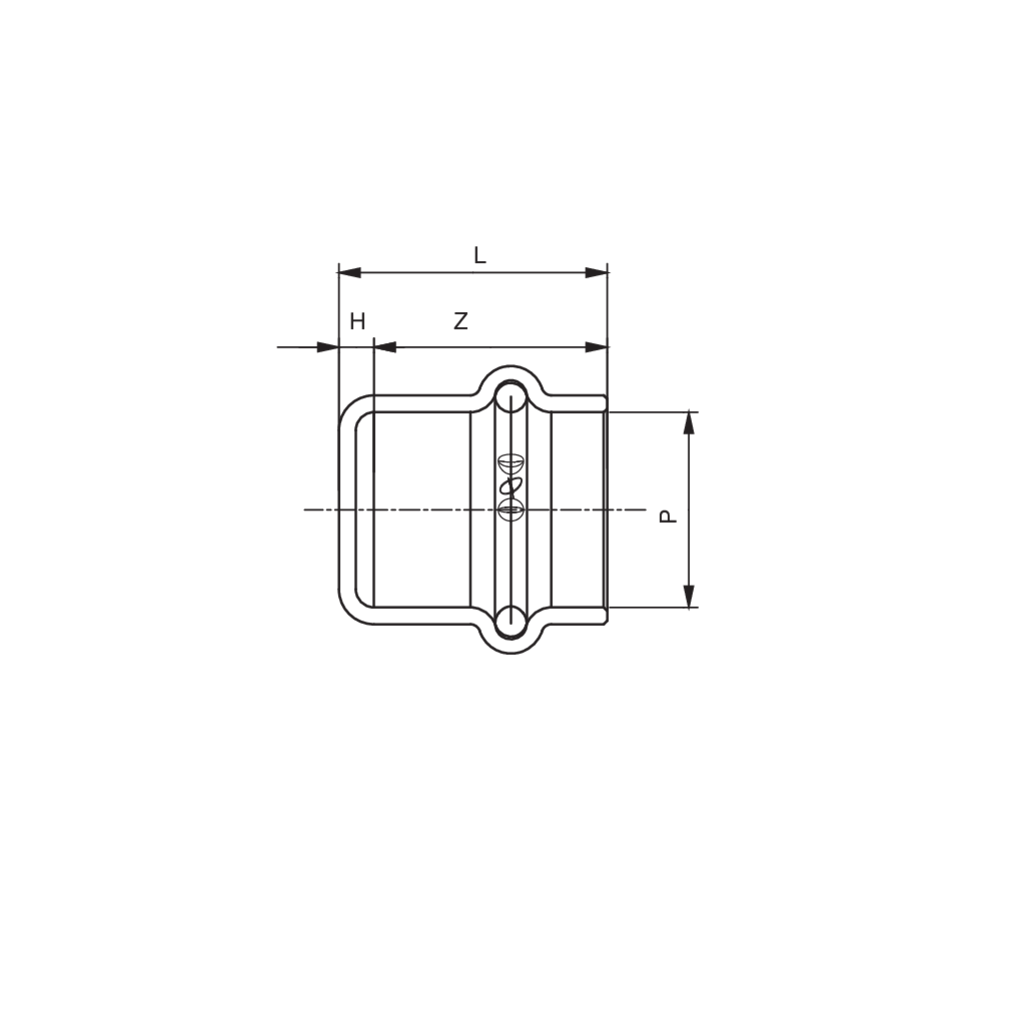

SIZE	P	BAG	MASTER BOX	PART NO.	L	Z	H
1/2''	1/2''	10	250	5V530004	0.87	0.75	0.12
3/4''	3/4''	10	200	5V530005	1.02	0.91	0.12
1''	1''	5	200	5V530006	1.02	0.91	0.12
1 1/4''	1 1/4''	1	100	5V530007	1.14	1.02	0.12
1 1/2''	1 1/2''	1	70	5V530008	1.57	1.42	0.16
2''	2''	1	40	5V530010	1.73	1.57	0.16

Available media and videos

BIM

5V5300_Copper.zip
