BONOMI PRESS

5V5300

Made in Italy

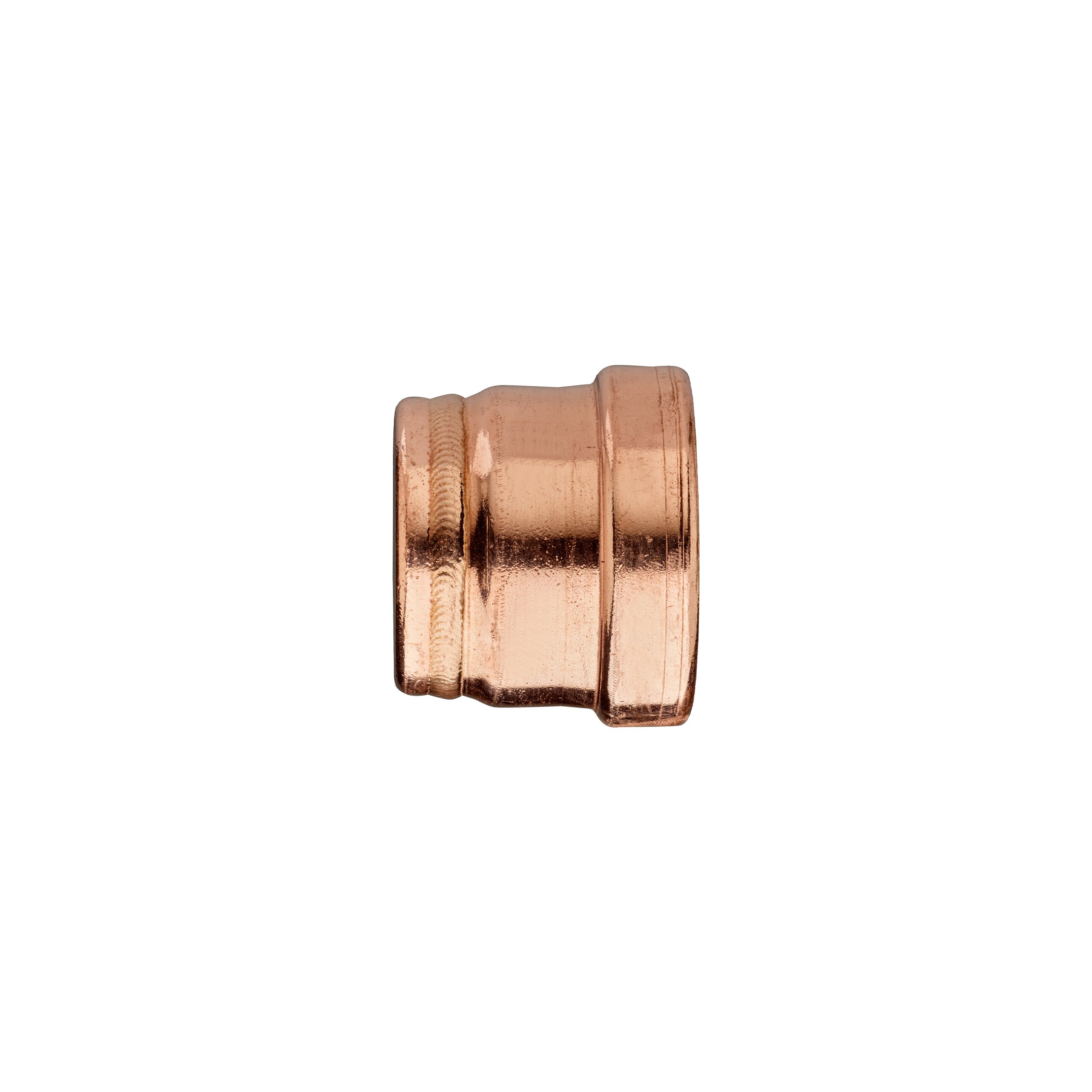

Copper F plug.

Technical specifications

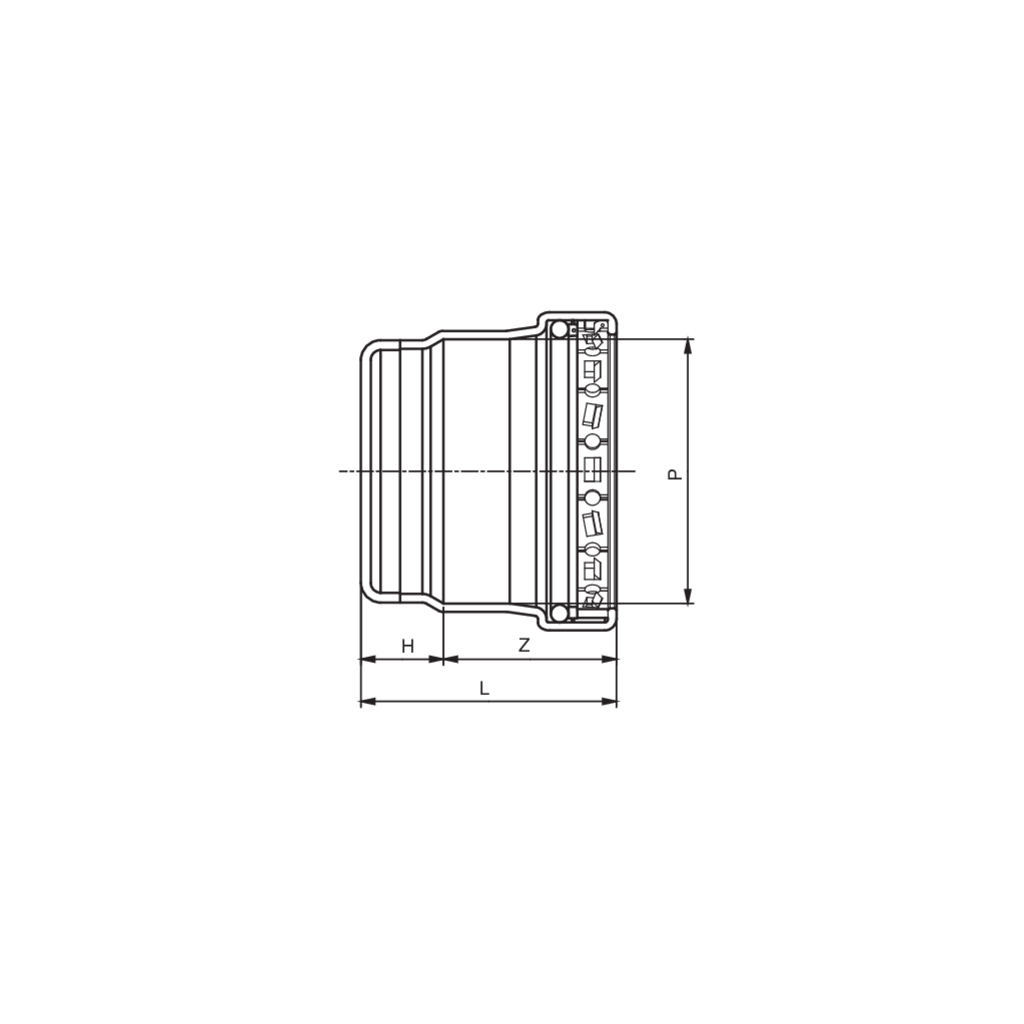

SIZE	P	BAG	MASTER BOX	PART NO.	L	Z	H
2 1/2''	2 1/2''	1	24	5V530012	2.56	1.73	0.83
3''	3''	1	14	5V530014	2.95	1.97	0.98
4''	4''	1	6	5V530018	3.39	2.40	0.98

Available media and videos

BIM

5V5300_Copper.zip
