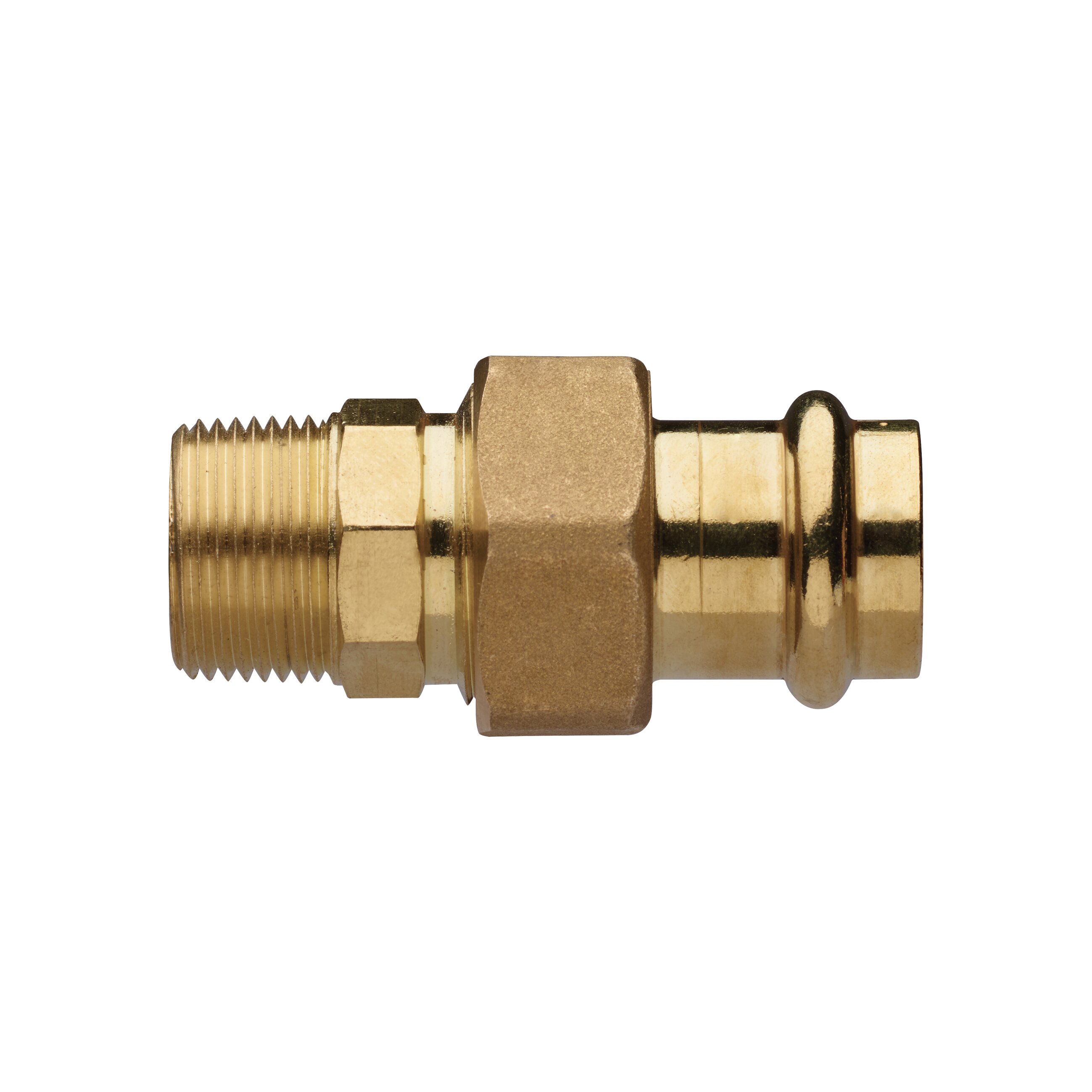

5V5400

Brass F/male thread flat seat union.

Technical specifications

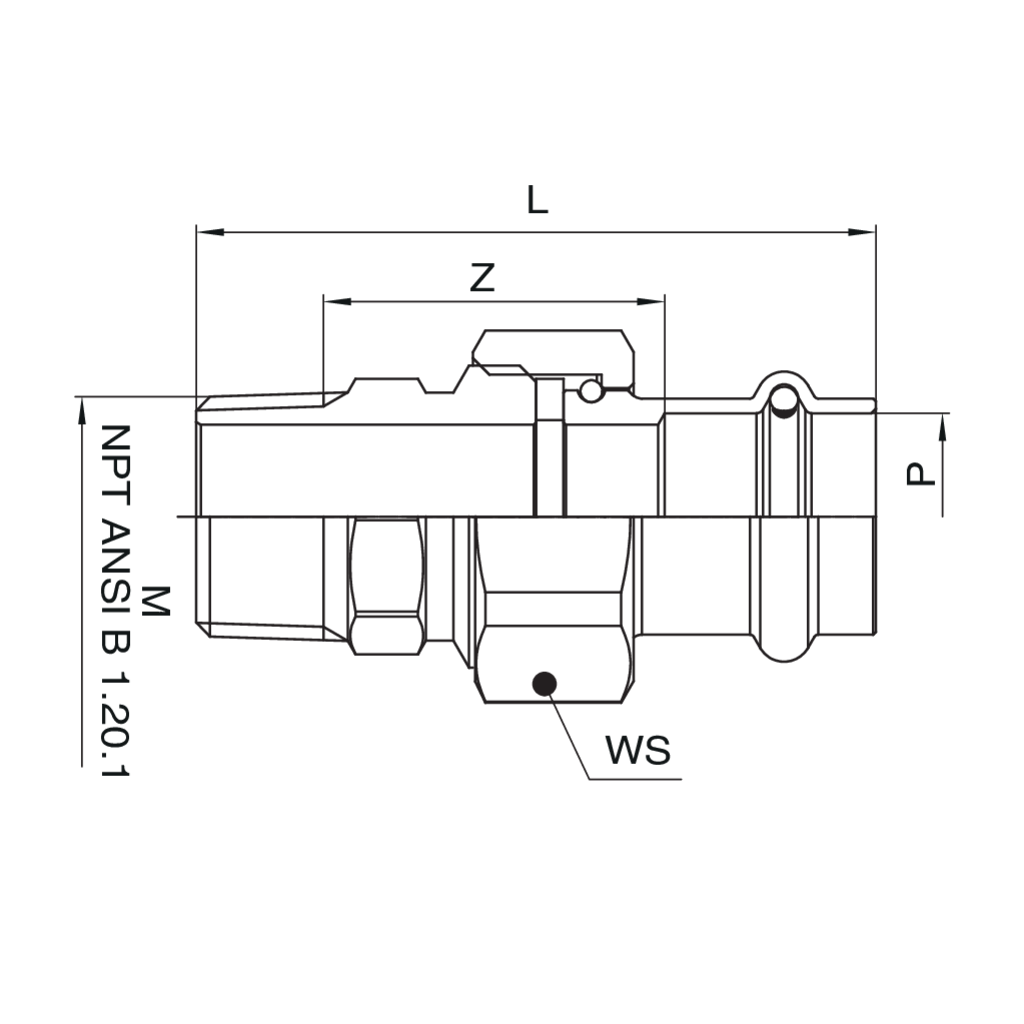

P x M	BAG	MASTER BOX	PART NO.	L	Z	WS
1/2'' x 1/2''	1	150	5V54000404	2.62	1.36	1.18
1'' x 1''	1	60	5V54000606	3.37	1.74	1.85
1 1/4'' x 1 1/4''	1	40	5V54000707	3.50	1.77	2.05
1 1/2'' x 1 1/2''	1	30	5V54000808	3.82	1.79	2.36
2'' x 2''	1	15	5V54001010	4.35	2.03	2.95
3/4'' x 3/4''	1	100	5V54000505	2.91	1.46	1.46

Available media and videos

BIM

5V5400_Brass.zip
