5V5600

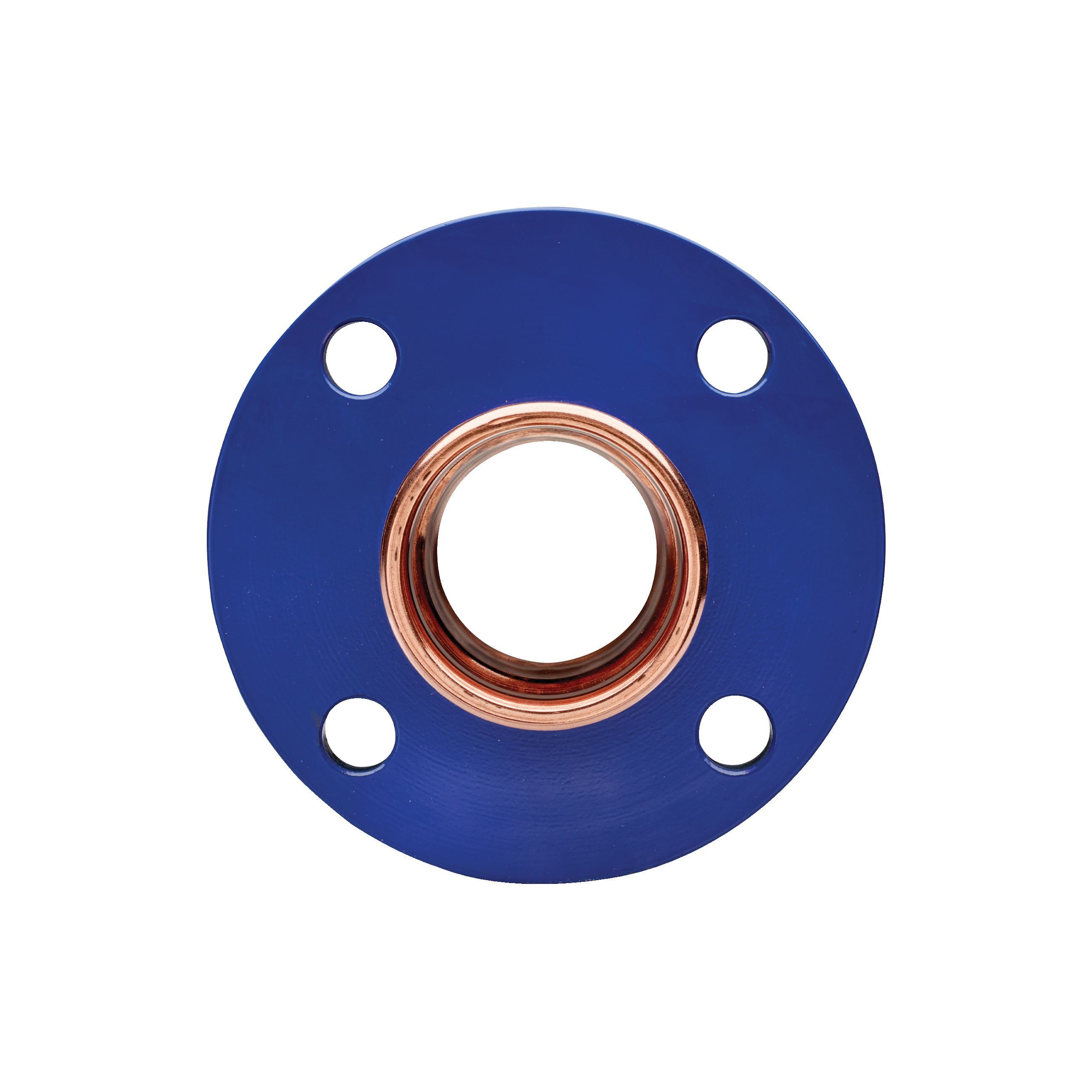

Copper flanged joint.

Technical specifications

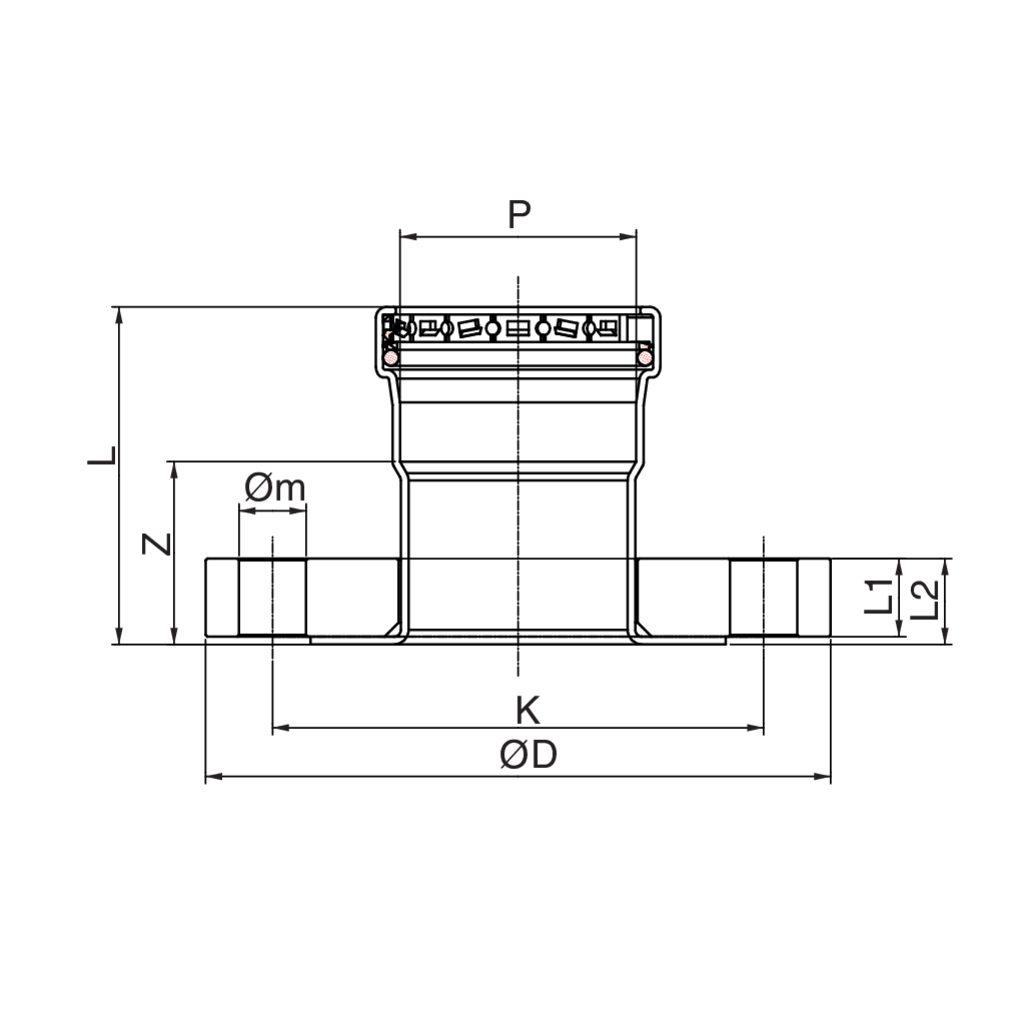

SIZE	P	BAG	MASTER BOX	PART NO.	L	Z	L1	L2	ØD	Øm	K
2 1/2''	2 1/2''	1	2	5V560012	2.83	1.10	0.63	0.71	7.00	0.75	5.50
3''	3''	1	1	5V560014	3.19	1.22	0.75	0.83	7.50	0.75	4.94
4''	4''	1	1	5V560018	3.70	1.30	0.75	0.83	9.00	0.75	7.50
