5V7400

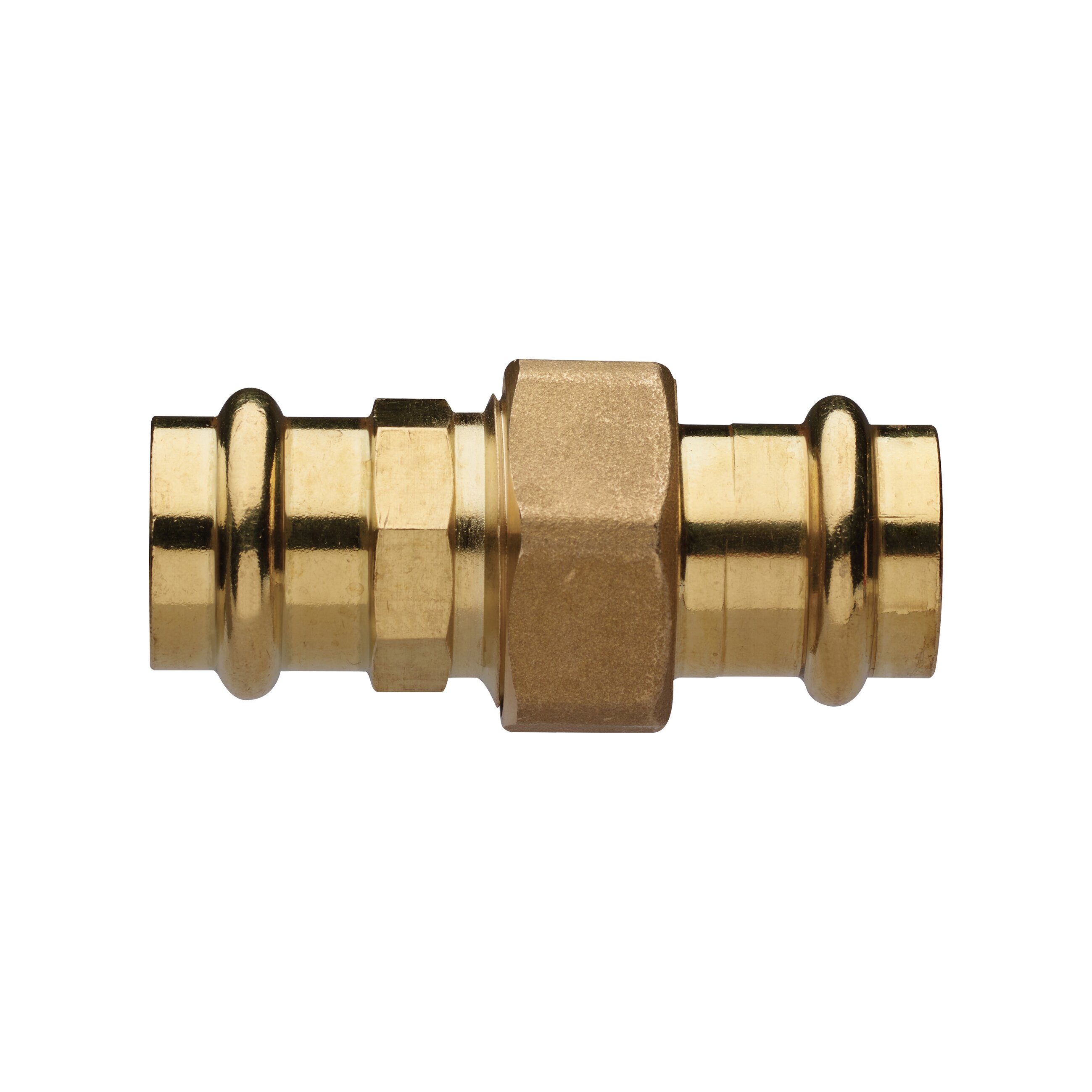

Brass F/F flat seat union.

Technical specifications

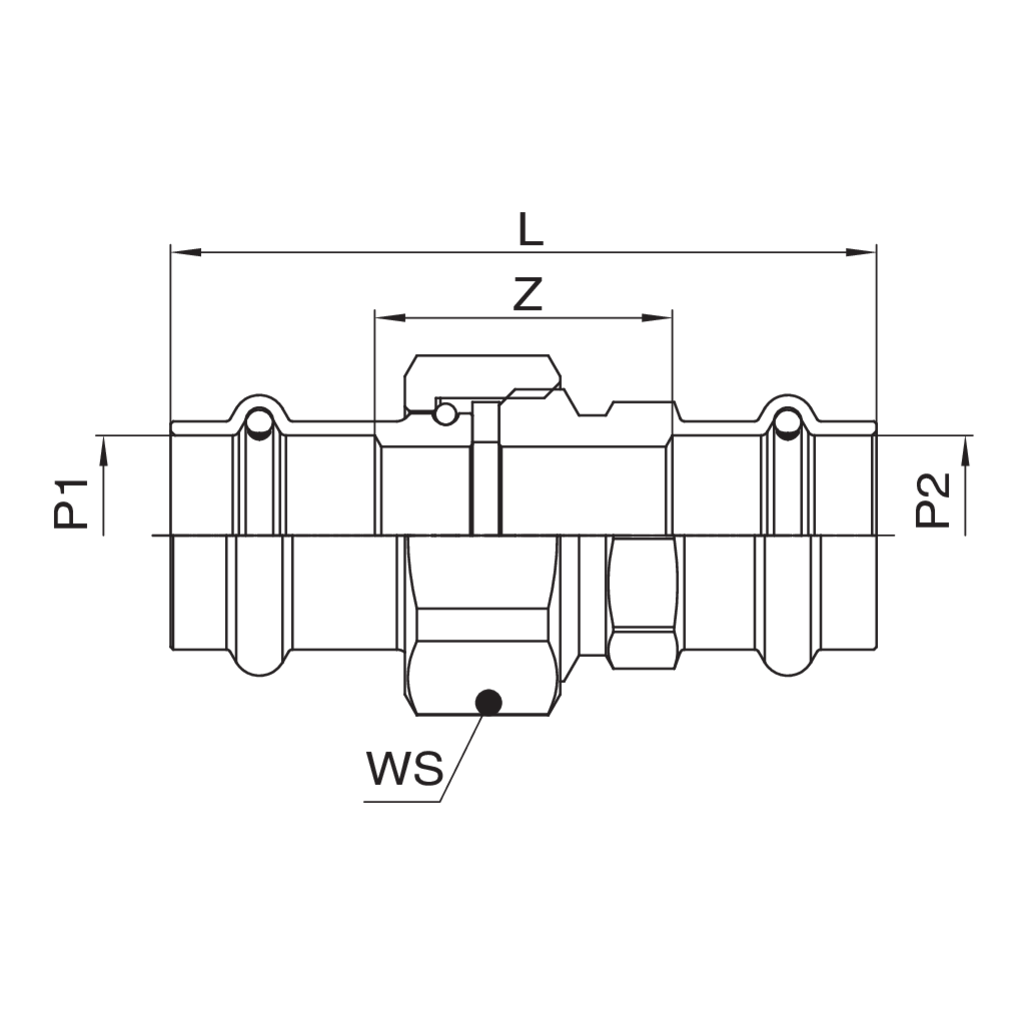

P1 x P2	BAG	MASTER BOX	PART NO.	L	Z	WS
1/2'' x 1/2''	1	150	5V74000404	2.74	1.32	1.18
1'' x 1''	1	60	5V74000606	3.39	1.50	1.85
1 1/4'' x 1 1/4''	1	40	5V74000707	3.79	1.74	2.05
1 1/2'' x 1 1/2''	1	30	5V74000808	4.17	1.46	2.36
2'' x 2''	1	15	5V74001010	4.84	1.69	2.95
3/4'' x 3/4''	1	100	5V74000505	3.13	1.32	1.46

Available media and videos

BIM

5V7400_Brass.zip
