BONOMI PRESSMAX GAS

5L01

Made in Italy

Carbon steel adapter FPT/P from 1/2'' to 2''.

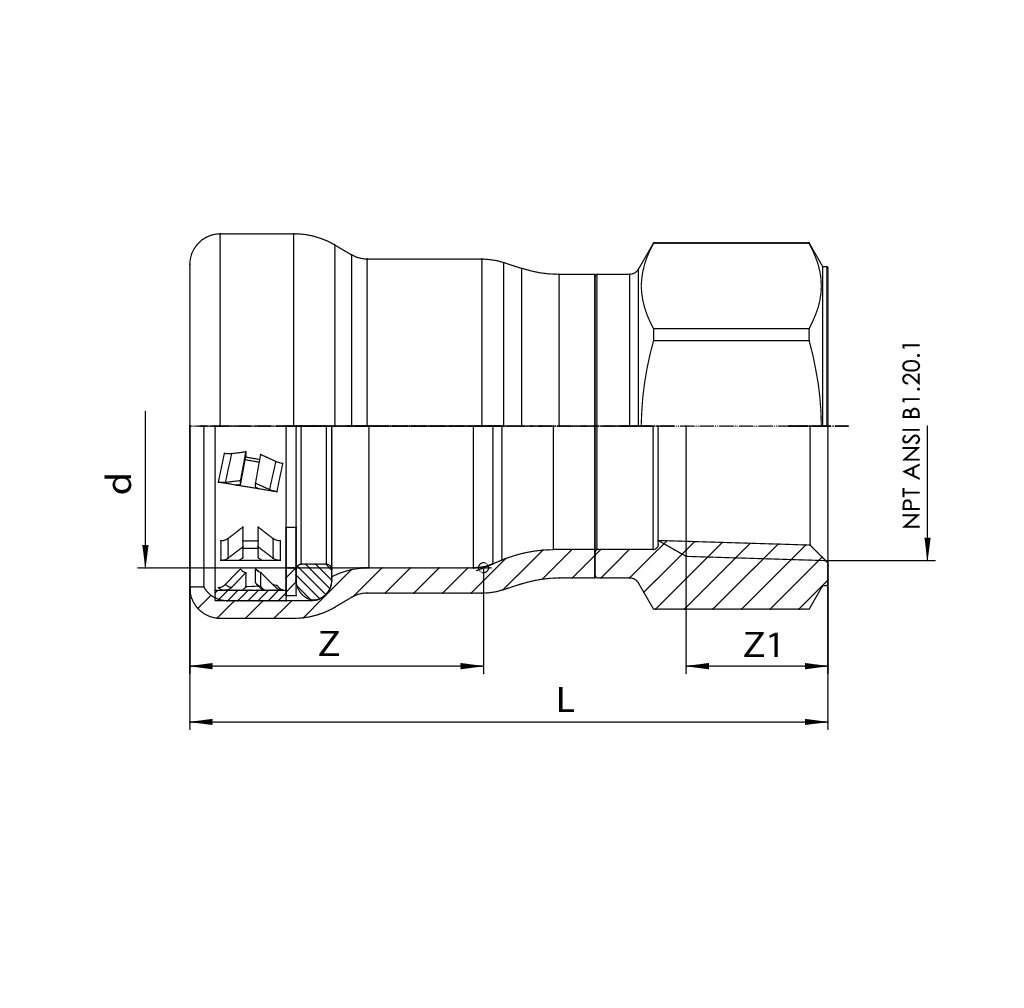

Technical specifications

d x NPT	L	Z	Z1
1 1/2'' x 1 1/2''	3.37	1.89	0.68
1 1/2'' x 1''	3.72	1.89	0.66
1 1/4'' x 1 1/4''	3.27	1.81	0.68
1 1/4'' x 1''	3.33	1.81	0.66
1'' x 1''	2.74	1.34	0.66
1'' x 1/2''	2.91	1.34	0.54
1/2'' x 1/2''	2.30	1.06	0.54
1 1/2'' x 3/4''	3.70	1.89	0.55
1 1/4'' x 3/4''	3.48	1.81	0.55
1'' x 3/4''	2.68	1.34	0.55
2'' x 2''	3.44	1.97	0.70
2'' x 3/4''	4.07	1.97	0.55
3/4'' x 1/2''	2.44	1.14	0.54
3/4'' x 3/4''	2.48	1.14	4.49
