BONOMI PRESSMAX GAS

5L49

Made in Italy

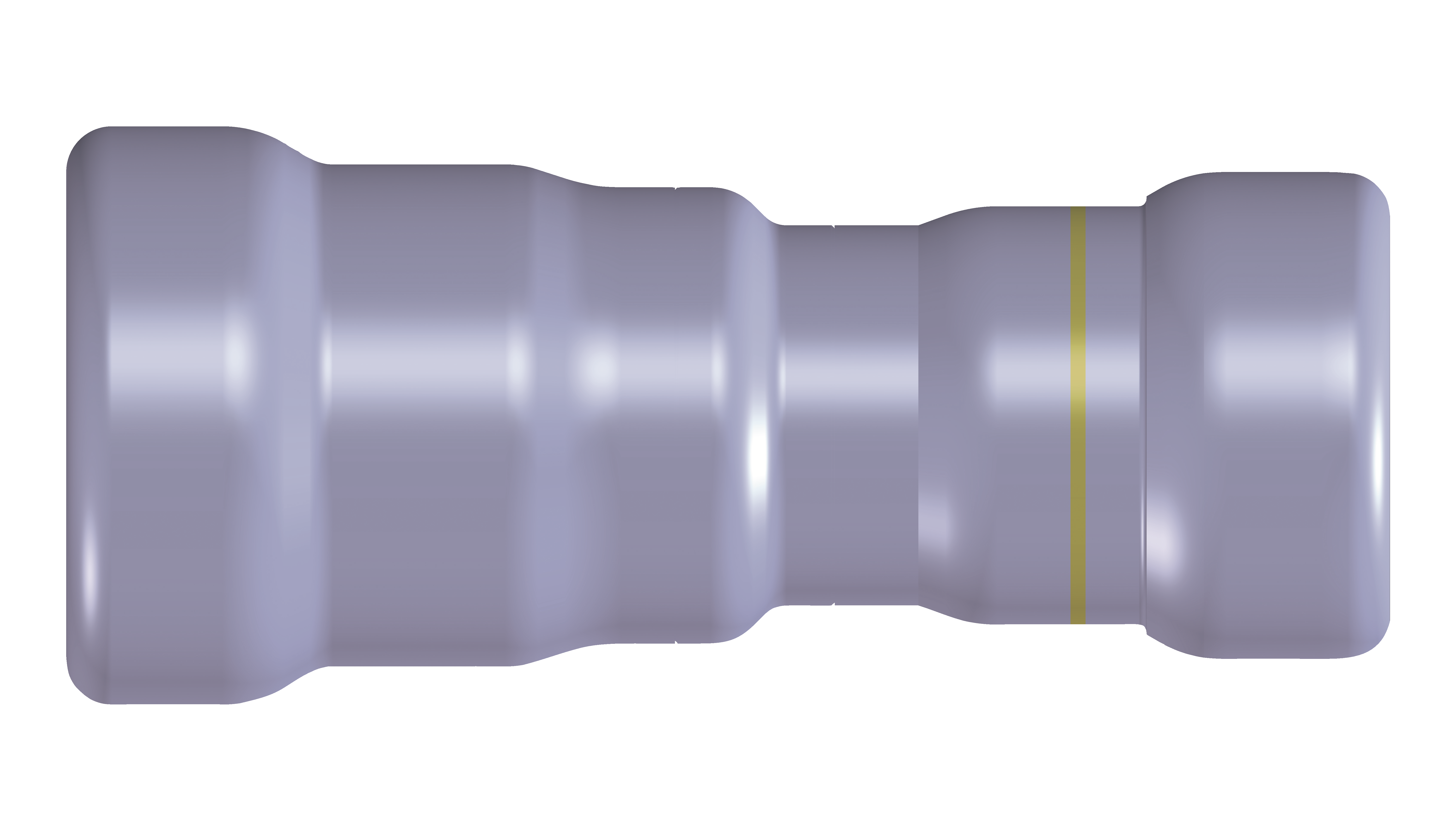

Carbon steel P/P reducing coupling from 1/2'' to 2''.

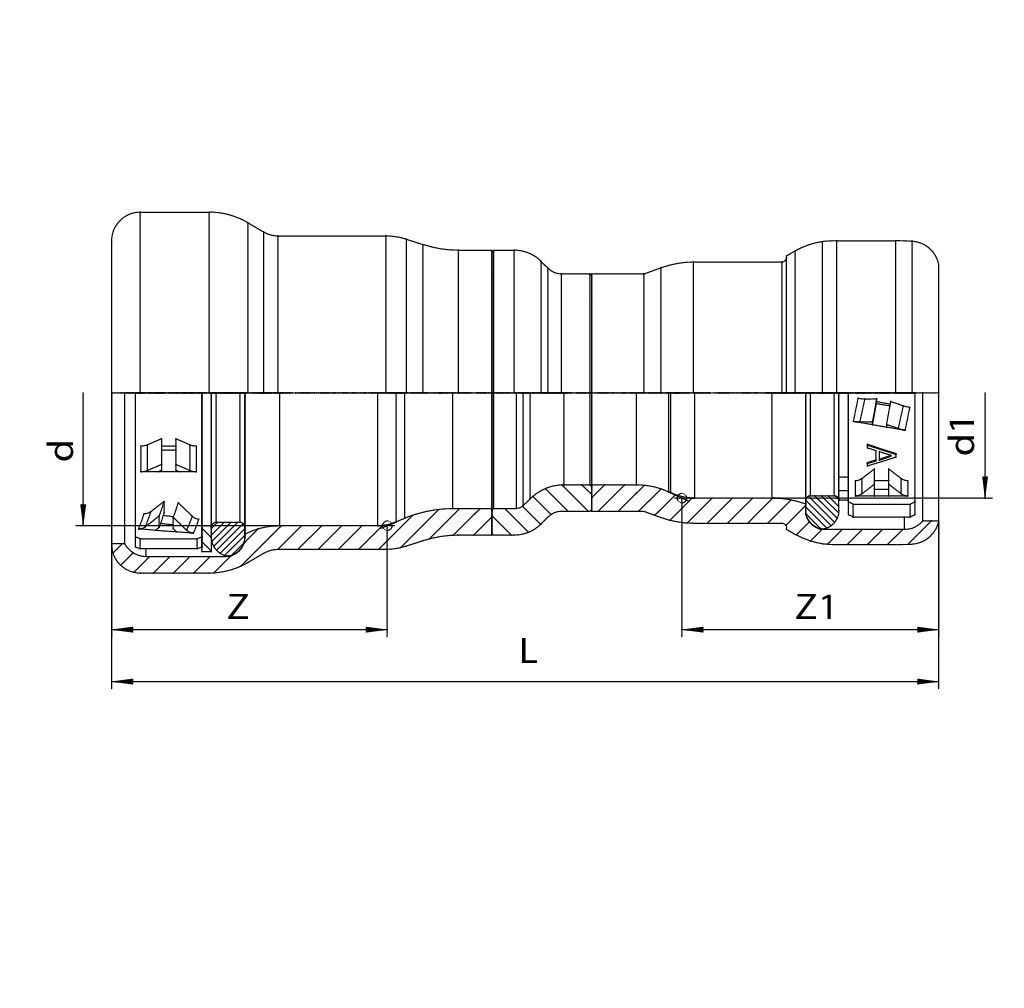

Technical specifications

d x d1	L	Z	Z1
1 1/2'' x 1 1/4''	5.10	1.89	1.81
1 1/4'' x 1''	4.41	1.81	1.34
1'' x 1/2''	3.78	1.34	1.06
1 1/4'' x 3/4''	4.33	1.81	1.14
1'' x 3/4''	3.74	1.34	1.14
2'' x 1 1/2''	5.28	1.97	1.89
2'' x 1 1/4''	5.28	1.97	1.81
3/4'' x 1/2''	3.43	1.14	1.06
