BONOMI PRESSMAX

5M74

Made in Italy

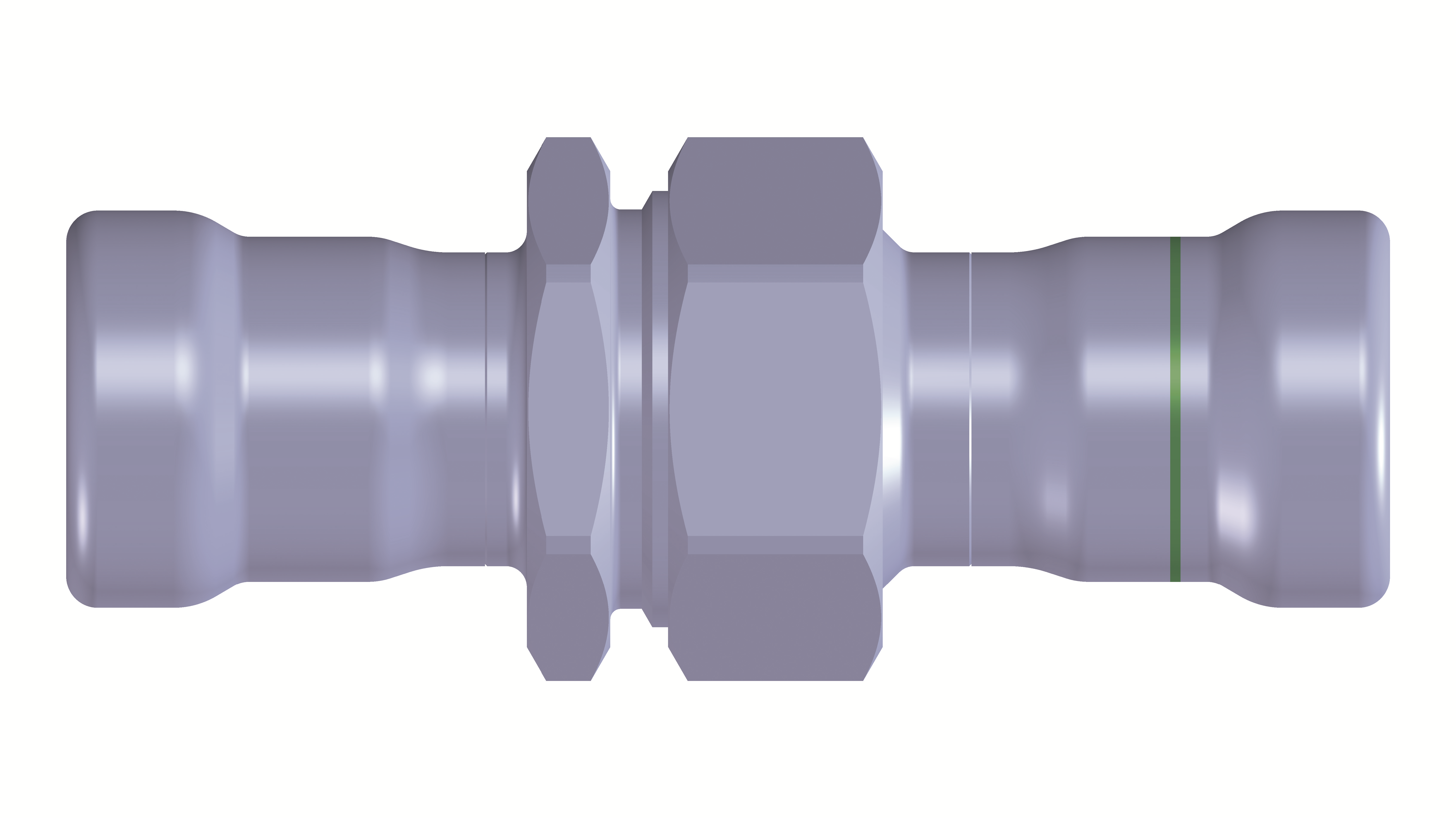

Carbon steel P/P union from 1/2" to 2".

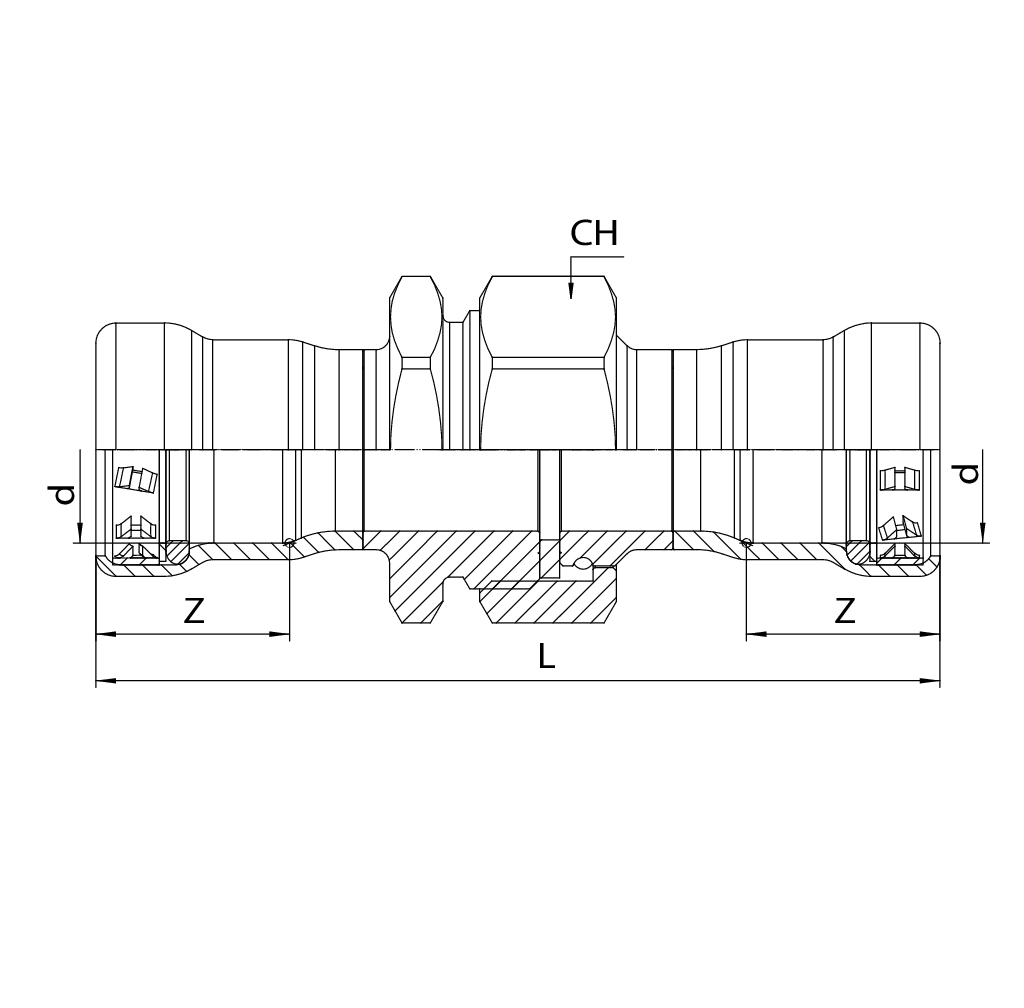

Technical specifications

SIZE	L	Z	CH
1/2''	4.51	1.06	1.50
3/4''	4.98	1.14	1.81
1''	5.37	1.34	2.05
1 1/4''	6.46	1.81	2.36
1 1/2''	6.79	1.89	2.95
2''	7.87	1.97	3.46
