BUTTERFLY VALVES

551P

PTFE COATED SS DISC

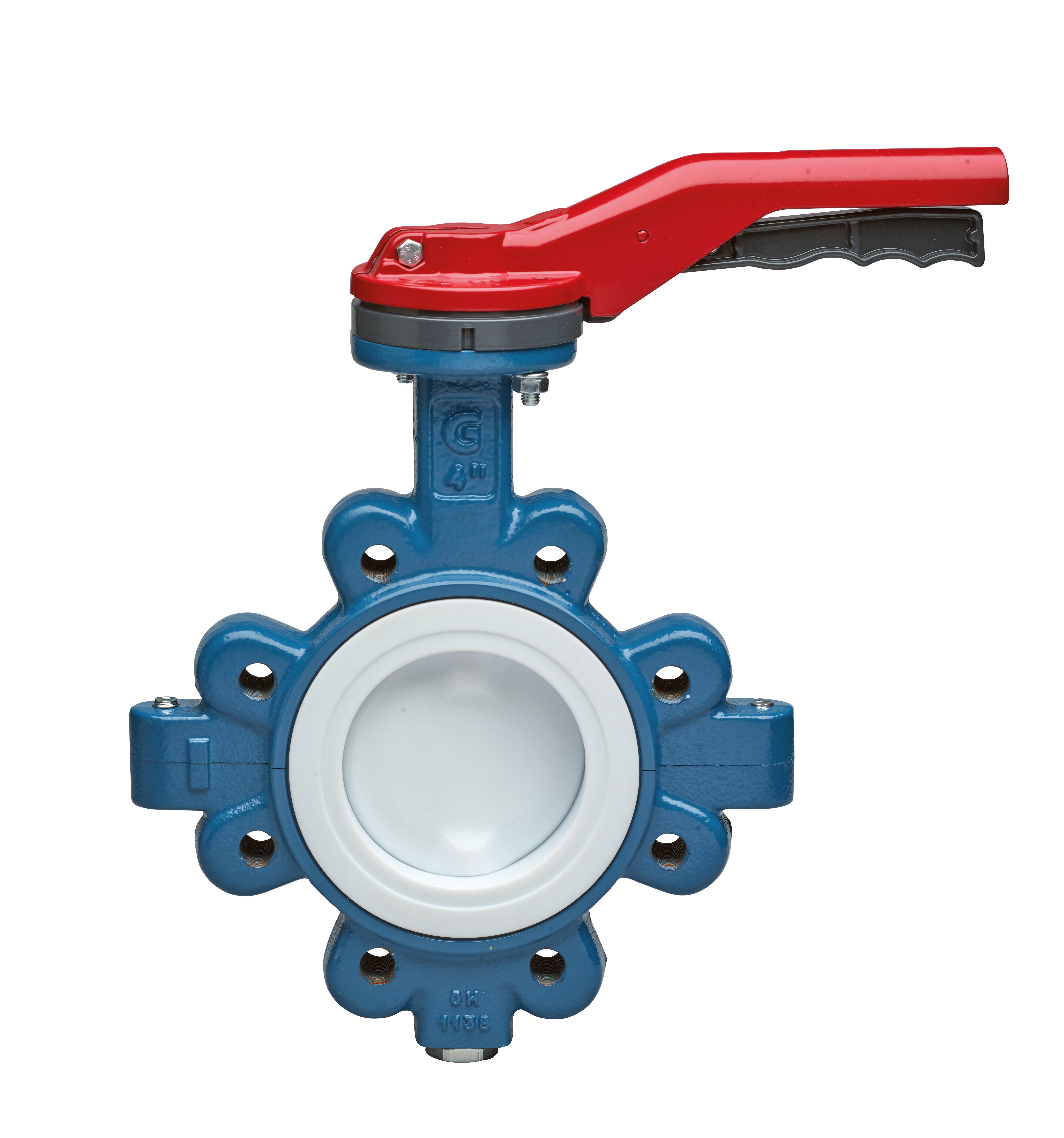

Manually operated Lug butterfly valves.
• Epoxy coated ductile iron (EN-GJS 400-15) Lug body.
• 551P - sizes 2” to 12”.
• ISO 5211 direct mounting pad/square stem.
• PTFE seat -70°F to +392°F.
• API 609 face to face flange.
• Floating dual shaft disc design.
• Pressure rating: 250 psi 2”-8” and 150 psi: 10”-12”.
• MSS SP 67 compliant.
• No pins in disc prevent potential leak points.
• FDA approved PTFE coating.
551P: size 2” to 12”.
G551P: GEAR OPERATED VERSION size 2” to 12”.

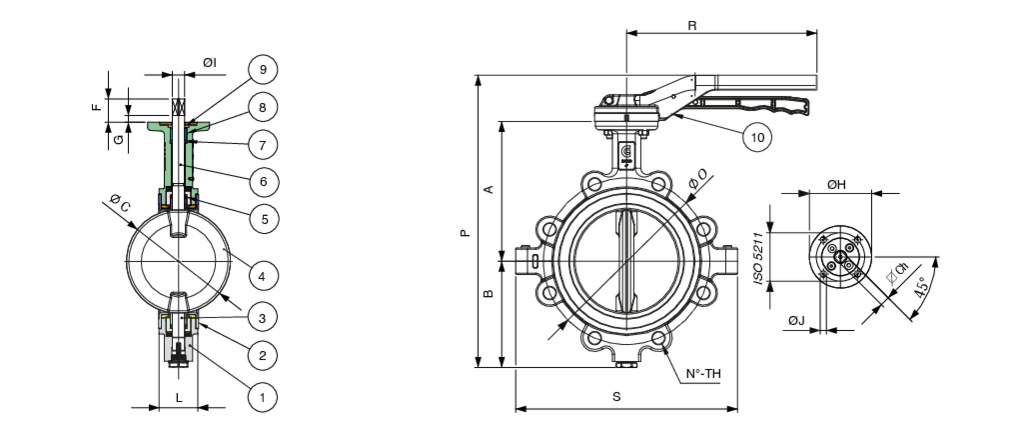

Technical specifications

Position	Part name	Material	N.° pieces
1	BODY	DUCTILE IRON	1
2	SEAT	PTFE	1
3	LOWER SHAFT	A630	1
4	DISC	S.S. PTFE LINED	1
5	SECONDARY SEAL	PTFE	2
6	UPPER SHAFT	A630	1
7	O-RING	VITON	1
8	BUSHING	PTFE	1
9	STOP RING	SPRING STEEL	1
10	HANDLEVER	ALUMINIUM	1

SIZE	ISO 5211	⧄Ch	A	B	ØC	F	G	ØH	ØI	ØJ	L	N°-D	P	R	S	Weight Lbs	Seat Torque 100 psi	Seat Torque 250 psi	Cv (GPM@ 1 psi) 50% OP	Cv (GPM@ 1 psi) 100% OP
10"*	F10	22 mm	10.63	8.66	9.84	1.50	0.39	4.92	1.18	0.43	2.68	12-7/8"-9	21.93	-	18.58	66.14	1947	-	730.5	5191.8
12"*	F10	22 mm	11.81	9.72	11.73	1.50	0.39	4.92	1.18	0.43	3.07	12-7/8"-9	24.17	-	21.26	99.21	2478	-	1054.8	8169
2"	F07	11 mm	5.43	3.19	2.17	1.34	0.39	3.54	0.55	0.35	1.69	4-5/8"-11	11.26	8.66	6.50	12.57	142	221	31.8	134.9
2 1/2"	F07	11 mm	5.67	3.86	2.68	1.34	0.39	3.54	0.55	0.35	1.81	4-5/8"-11	12.17	8.66	7.32	14.33	177	248	48	254.2
3"	F07	11 mm	6.22	4.33	3.19	1.34	0.39	3.54	0.55	0.35	1.81	4-5/8"-11	13.19	8.66	9.53	20.72	354	487	72.6	431.5
4"	F07	11 mm	6.81	5.04	3.98	1.34	0.39	3.54	0.63	0.35	2.05	8-5/8"-11	14.49	8.66	10.63	22.49	451	584	109.1	689.5
5"	F07	14 mm	7.32	5.51	4.96	1.34	0.39	3.54	0.71	0.35	2.20	8-3/4"-10	15.47	10.83	11.69	29.21	531	752	173.2	1200
6"	F07	14 mm	7.95	6.10	5.91	1.34	0.39	3.54	0.71	0.35	2.20	8-3/4"-10	16.69	10.83	12.64	32.96	620	885	260.7	1756.1
8"	F10	17 mm	9.45	7.48	7.87	1.50	0.39	4.92	0.87	0.43	2.36	8-3/4"-10	19.57	-	16.54	55.12	1283	1938	482.4	3105.2

* 10” - 12” available in bare stem or gear operated version only
