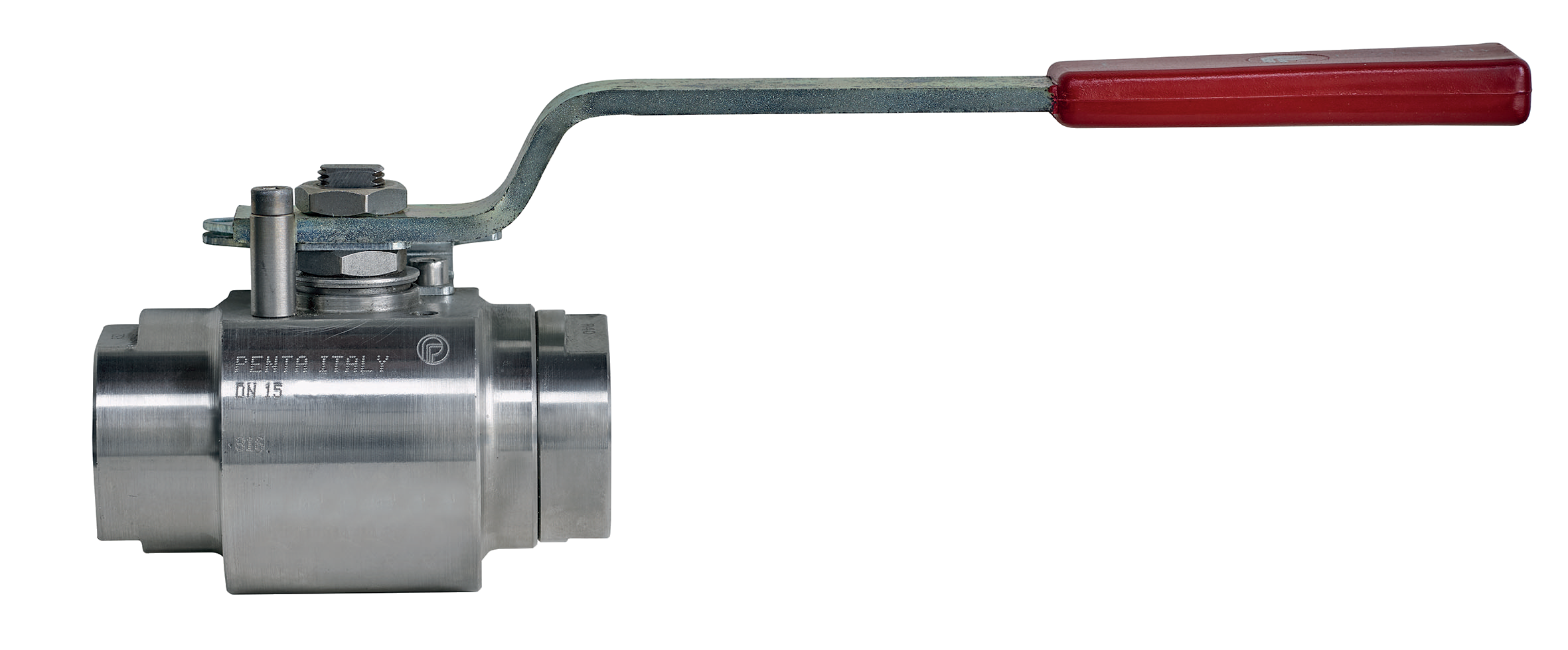

CLASS 800 METAL SEATED

AP20PCS - AP20PSS

CARBON STEEL - STAINLESS STEEL BALL VALVE 2-PIECES SCREWED HIGH TEMPERATURE

Metal seated floating ball valves, CLASS 800 bi-directional.
• 2-piece screwed body from barstock.
• Temperature range carbon steel valve -20°F to +662°F.
• Temperature range stainless steel valve -40°F to +662°F.
• Blow-out proof stem.
• PENTAFITE standard ball seats, other metal seats on request.
• API 598 Bubble Tight (exceed ANSI B16.104/FCI70-2 CL.VI).
• Consult factory for temperatures between -50°F and +750°F.
• Adjustable, live-loaded graphite packing.
• NPT threaded female Std, SW on request.
• NACE MR 0175 compliant materials.
• 100 mm stem elongation on request.
• Butt welding ends with integral nipples available on request.
• Locking lever operator available on request.

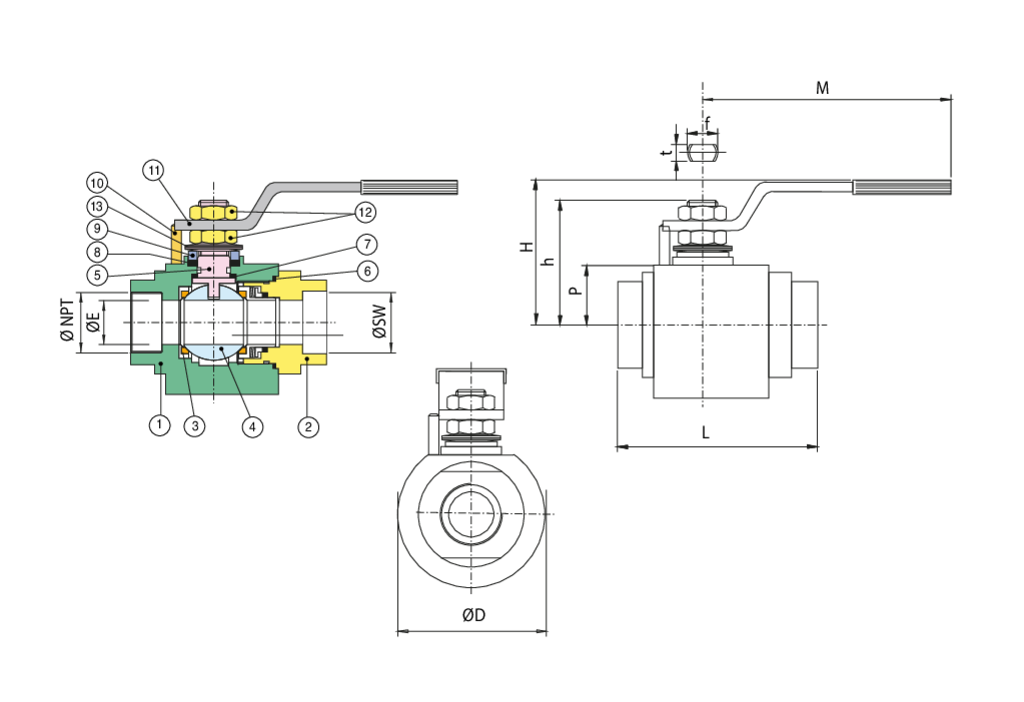

Technical specifications

Position	Part name	Material	N.° pieces
1	BODY	F316-A105	1
2	END CAP	F316-A105	1
3	SEAT	PENTAFITE/WC/ST6/CRC/LIVE LOADED PEEK	2
4	BALL	F316-CF8M	1
4	BALL COATING	HARD CHROMIUM NITRIDES (HCR) HVOF TUNGSTEN CARBIDES (WC) HVOF STELLITE GR.6 (ST6) HVOF CHROME CARBIDES (CRC)	1
5	STEM	17-4-PH	1
6	SEAL BODY	GRAPHITE	1
7	PRIMARY STEM SEAL	GRAPHITE	1
8	SECONDARY STEM SEAL	GRAPHITE	1
9	GLAND BOLT	304 SST	1
10	STOP PLATE	304 SST	1
11	HANDLE	CARBON ST./S.S.	1
12	STEM NUTS	304 SS	2
13	STEM SPRING	UNS S30100	1

SIZE	DN	ØE	L (NPT)	L (SW)	L (BW)	ØD	M	H	h	P	f/t	ISO 5211	Cv	Torque (in-Lbs) PENTAFITE seats	Weight (Lbs)
1/2''	15	12.5	80	70	270	58	145	70	50	24	10/6	F03	30	464	1.20
3/4''	20	19	90	85	285	64	145	75	53	27	10/6	F03	64	653	1.50
1''	25	24	110	105	305	78	275	83	63	32	16/10	F05	120	740	2.50
1 1/2''	40	38	130	125	325	104	380	123	91.5	42	22/14	F07	247	2234	5.30
2''	50	51	155	140	350	138	380	120	102	61	22/14	F07	510	3336	11.50
