3-way brass ball valve with ISO 5211 pad for actuator, standard port, FNPT.
• Pressure rating 400 WOG-100 WSP.
• Temperature range -4°F to +366°F.
• ANSI B1.20.1 connections.
• Blow-out proof stem, chrome plated brass ball anddouble O-ring stem packing.
• PTFE seats with O-ring backing for low operating torque.
• 100% electronically tested in the open and closed position at 80 psi.
• Not to be used for drinking water.
• Four seat design for sealing between pressurized ports.
355N: LEVER HANDLE - size 1/4” to 3”, “T” flow pattern.
365N: LEVER HANDLE - size 1/4” to 3”, “L” flow pattern.
MEETS THE DESIGN CRITERIA OF MSS SP-110.
The Buna O-ring is fitted to the stem of the valve as the best possible protection against potential gas leakage underextreme duty or low pressure applications.
A secondary PTFE stem seal will also assure that the valve is suitable for use up to 366°F.

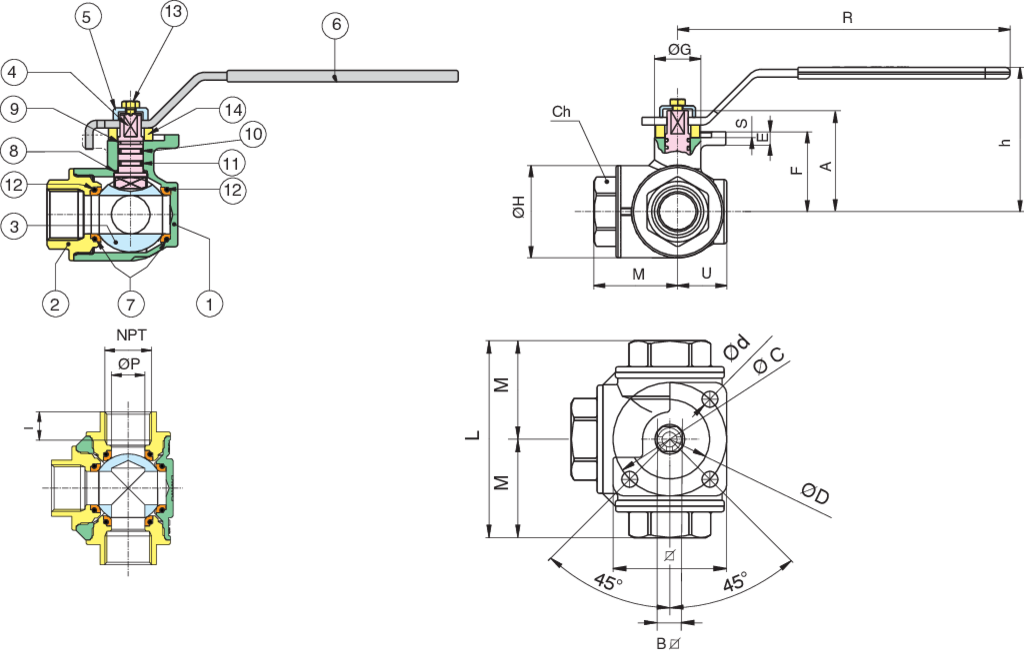

| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | BRASS C37700 | 1 |
| 2 | END CONNECTION | BRASS C37700 | 3 |
| 3 | BALL | BRASS C37700 | 1 |
| 4 | STEM | BRASS C38500 | 1 |
| 5 | BUSH | BRASS C38500 | 1 |
| 6 | HANDLE | FE DD 11 UNI EN 10111 | 1 |
| 7 | BALL SEAT | PTFE | 4 |
| 8 | THRUST WASHER | PTFE | 1 |
| 9 | THRUST WASHER | PTFE | 1 |
| 10 | O-RING | EPDM | 1 |
| 11 | O-RING | FKM (VITON) | 1 |
| 12 | O-RINGS BODY | FKM (VITON) | 4 |
| 13 | SCREW | STEEL CL 8.8 | 1 |
| 14 | WASHER | NYLON (PA6) | 1 |
| SIZE | ØP | ØH | I | L | M | CH | R | h | ØG | Ød | 〼 | ØC | U | E | F | A | 〼B | Cv 355N-365N | psi | Weight (Lbs) | Break Torque (in/Lbs)* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4" | 0.39 | 1.34 | 0.39 | 2.64 | 1.32 | 0.87 | 4.72 | 2.44 | 0.87 | 0.24 | 1.5 | 1.42 | 0.77 | 0.2 | 1.2 | 0.35 | 0.35 | 3.24 | 400 | 1.23 | 35.4 |
| 3/8" | 0.43 | 1.34 | 0.41 | 2.64 | 1.32 | 0.87 | 4.72 | 2.44 | 0.87 | 0.24 | 1.5 | 1.42 | 0.77 | 0.2 | 1.2 | 0.35 | 0.35 | 3.47 | 400 | 1.16 | 35.4 |
| 1/2" | 0.43 | 1.34 | 0.54 | 2.87 | 1.44 | 1.06 | 4.72 | 2.44 | 0.87 | 0.24 | 1.5 | 1.42 | 0.77 | 0.2 | 1.2 | 0.35 | 0.35 | 4.16 | 400 | 1.21 | 35.4 |
| 3/4" | 0.55 | 1.54 | 0.55 | 3.19 | 1.59 | 1.26 | 4.72 | 2.52 | 0.87 | 0.24 | 1.5 | 1.42 | 0.87 | 0.2 | 1.29 | 0.35 | 0.35 | 7.05 | 400 | 1.48 | 35.4 |
| 1" | 0.75 | 1.89 | 0.66 | 3.74 | 1.87 | 1.61 | 6.79 | 2.95 | 0.94 | 0.28 | 1.97 | 1.97 | 1 | 0.28 | 1.63 | 0.43 | 0.43 | 12.83 | 400 | 2.7 | 70.81 |
| 1 1/4" | 0.95 | 2.36 | 0.68 | 4.39 | 2.19 | 1.97 | 6.79 | 3.17 | 0.94 | 0.28 | 1.97 | 1.97 | 1.22 | 0.28 | 1.85 | 0.43 | 0.43 | 18.73 | 400 | 4.15 | 88.51 |
| 1 1/2" | 1.18 | 2.83 | 0.68 | 4.86 | 2.43 | 2.17 | 6.79 | 3.66 | 1.26 | 0.28 | 1.97 | 1.97 | 1.49 | 0.28 | 2.34 | 0.43 | 0.43 | 29.71 | 400 | 6.22 | 106.21 |
| 2" | 1.5 | 3.39 | 0.7 | 5.73 | 2.86 | 2.76 | 9.06 | 4.37 | 1.46 | 0.35 | 2.76 | 2.76 | 1.75 | 0.31 | 2.91 | 0.59 | 0.55 | 43.81 | 400 | 11.07 | 177.02 |
| 2 1/2" | 1.95 | 4.37 | 0.93 | 6.93 | 3.46 | 3.35 | 9.06 | 4.8 | 1.46 | 0.35 | 2.76 | 2.76 | 2.2 | 0.31 | 3.35 | 0.59 | 0.55 | 70.05 | 400 | 19.78 | 265.52 |
| 3" | 1.95 | 4.45 | 1.02 | 7.09 | 3.54 | 4.13 | 9.06 | 4.8 | 1.46 | 0.35 | 2.76 | 2.76 | 2.2 | 0.31 | 3.35 | 0.59 | 0.55 | 70.05 | 400 | 19.63 | 265.52 |
* Torque values in the table are measured in laboratory tests under the following conditions:
TEMPERATURE: 68°F - PRESSURE: 0 psi - FLUID: purified water
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
