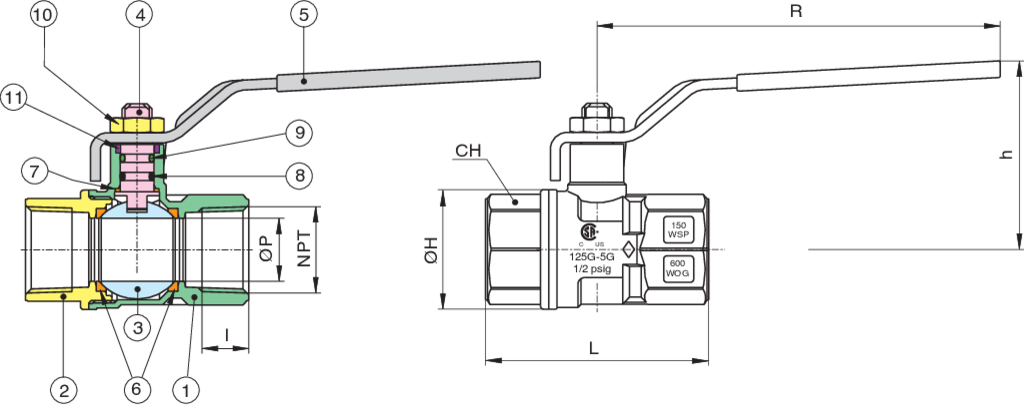

Lead free brass ball valve, FNPT threaded, full port.
• Pressure rating 600 WOG-150 WSP.
• Temperature range -4°F to 366°F.
• ANSI B1.20.1 connections.
• Blow-out proof stem, SLT coated LF brass ball.
• PTFE seats and double O-ring stem packing.
• 100% electronically tested in the open and closed position at 80 psi.
• Valve to be used in fully open or fully closed position.
161N LF: LEVER HANDLE - size 1/2” to 4”.
162N LF: T- HANDLE - size 1/2” to 1”.
Sizes 1/4” and 3/8” see 171N LF.
MEETS THE DESIGN CRITERIA OF MSS SP-110.
The Buna O-ring is fitted to the stem of the valve as the best possible protection against potential gas leakage under extreme duty, or low pressure applications. A secondary P.T.F.E stem seal will also assure that the valve is suitable for use up to 366°F.
* Lead free refers to the wetted surface of pipe, fittings and fixtures in potable water systems that have a weighted average lead content not more than 0.25%. Source: California health & Safety code (116875). Vermont Act 193.
