LEAD FREE

1715 LF- 1725 LF

COMMERCIAL STYLE

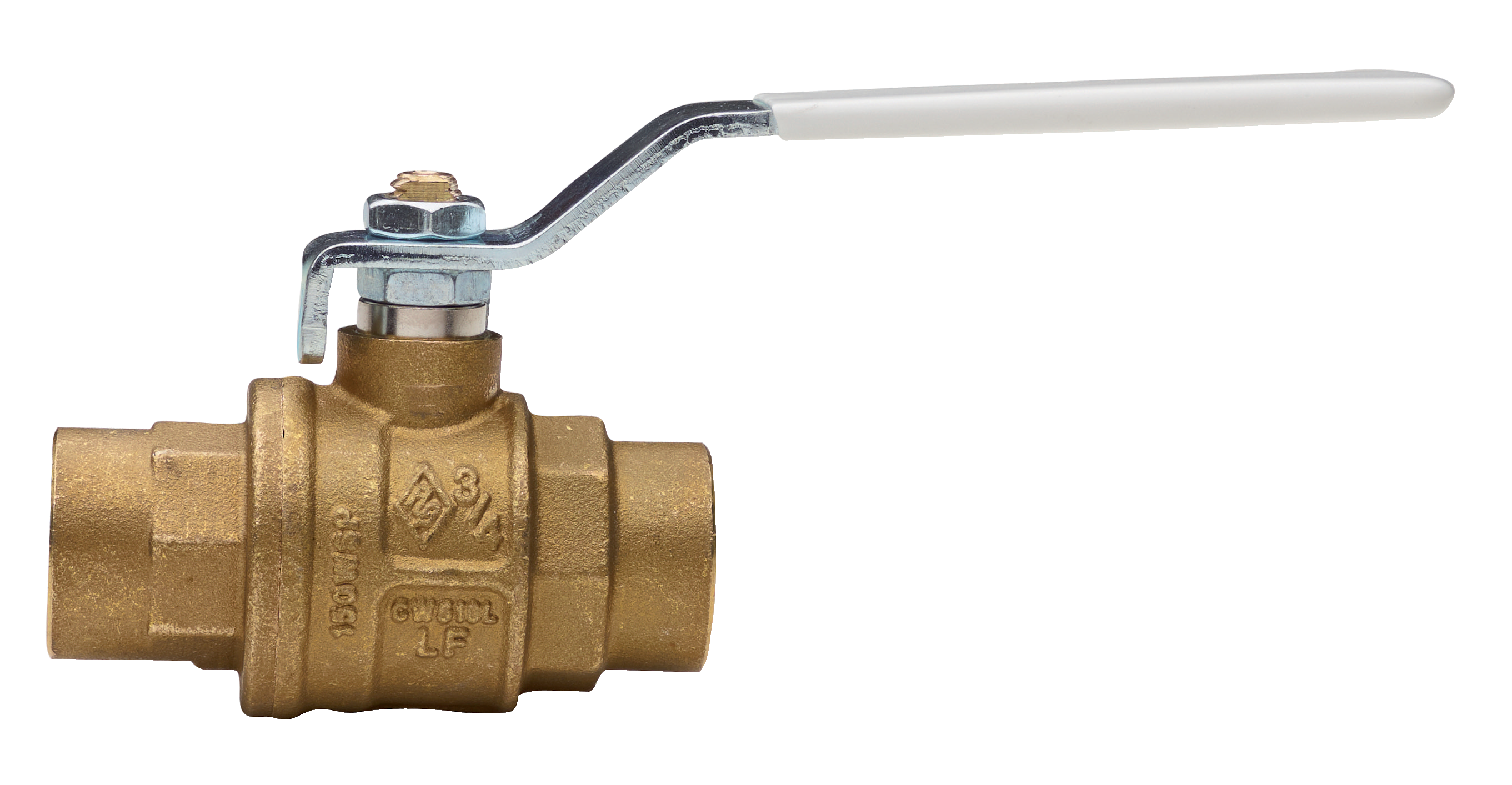

Lead free brass ball valve with solder ends, full port.
• Pressure rating 600 WOG-150 WSP.
• Temperature range -4°F to 366°F.
• ANSI B16.18 connections.
• Blow-out proof stem, STL coated LF brass ball.
• PTFE seats, seals, and thrust washer.
• Adjustable stem packing.
• 100% electronically tested in the open and closed position at 80 psi.
• Valve to be used in fully open or fully closed position.
1715 LF: LEVER HANDLE - size 1/2” to 2”.
1725 LF: T-HANDLE - size 1/2” to 1”.

Technical specifications

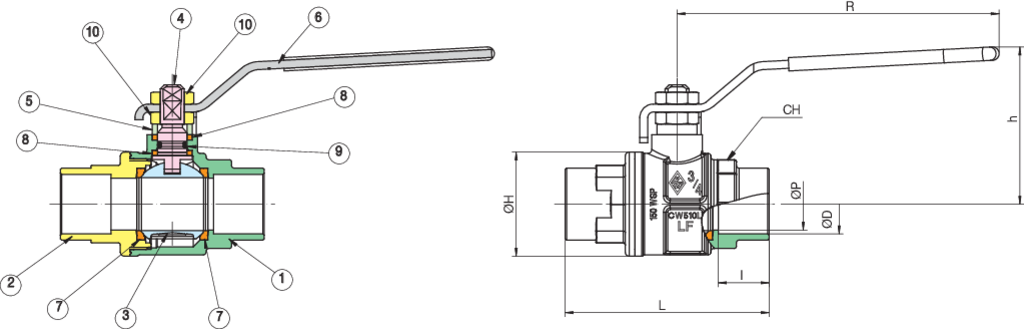

Position	Part name	Material	N.° pieces
1	BODY	LF BRASS C28500 *	1
2	END CONNECTION	LF BRASS C28500 *	1
3	BALL	LF BRASS C28500 *	1
4	STEM	LF BRASS C28500 *	2
5	PACKING GLAND	BRASS C38500	2
6	HANDLE	STEEL DD11	1
7	BALL SEAT	PTFE	1
8	THRUST WASHER/STEM SEAT	PTFE	2
9	O-RING	NBR	1
10	NUT	STEEL CL04	1

* Lead free refers to the wetted surface of pipe, fittings and fixtures in potable water systems that have a weighted average lead content not more than 0.25%. Source: California health & Safety code (116875). Vermont Act 193.

SIZE	ØP	I	CH	ØD	ØH	L	h	R	Cv	psi	Weight (Lbs)
1/2"	0.59	0.5	0.98	0.63	1.3	2.58	1.85	3.78	18.84	600	0.49
3/4"	0.79	0.75	1.22	0.88	1.54	3.01	2.32	4.76	34.1	600	0.79
1"	0.98	0.91	1.5	1.13	1.93	3.56	2.48	4.76	49.71	600	1.17
1 1/4"	1.26	0.97	1.89	1.38	2.32	4.09	2.99	5.94	102.89	600	2.14
1 1/2"	1.57	1.1	2.13	1.63	2.87	4.57	3.25	5.94	265.9	600	3.19
2"	1.95	1.34	2.64	2.13	3.43	5.47	3.78	6.3	306.36	600	5.18

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Certifications

UL certified

HEALTH EFFECTS

TSSA
