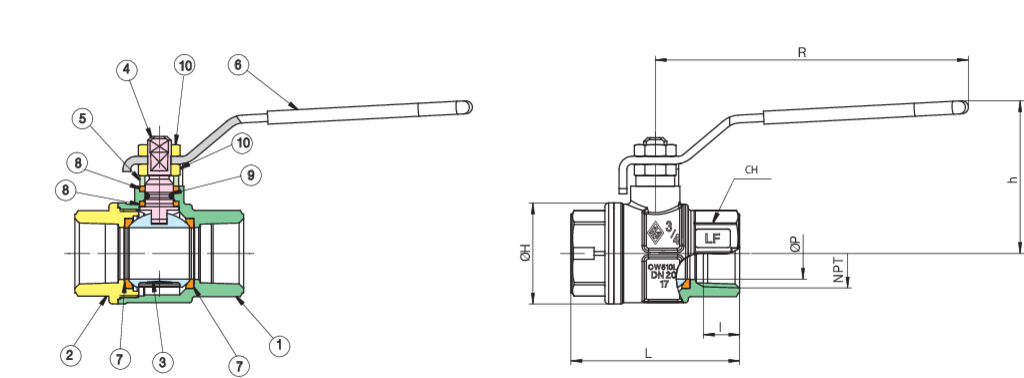

Lead free brass ball valve, FNPT threaded, full port.
• Pressure rating 600 WOG-150 WSP.
• Temperature range -4°F to 366°F.
• ANSI B1.20.1 connections.
• Blow-out proof stem, STL coated LF brass ball.
• PTFE seats, seals, and thrust washer.
• Adjustable stem packing.
• 100% electronically tested in the open and closed position at 80 psi.
• Valve to be used in fully open or fully closed position.
171N LF: LEVER HANDLE - size 1/4” to 2”.
171L LF: LOCKING HANDLE - size 1/4” to 2”.
172N LF: T-HANDLE - size 1/4” to 1”.
171S LF: Ball and stem in stainless steel AISI 316 - size 1/4” to 2”.
For sizes 2 1/2”, 3” and 4” see 161N LF.
MEETS THE DESIGN CRITERIA OF MSS SP-110.
* Lead free refers to the wetted surface of pipe, fittings and fixtures in potable water systems that have a weighted average lead content not more than 0.25%. Source: California health & Safety code (116875). Vermont Act 193.
