VALBIA
/
ELECTRIC ACTUATORS - SERIES 85
/
MOD. VB010
ELECTRIC ACTUATORS - SERIES 85

MOD. VB010

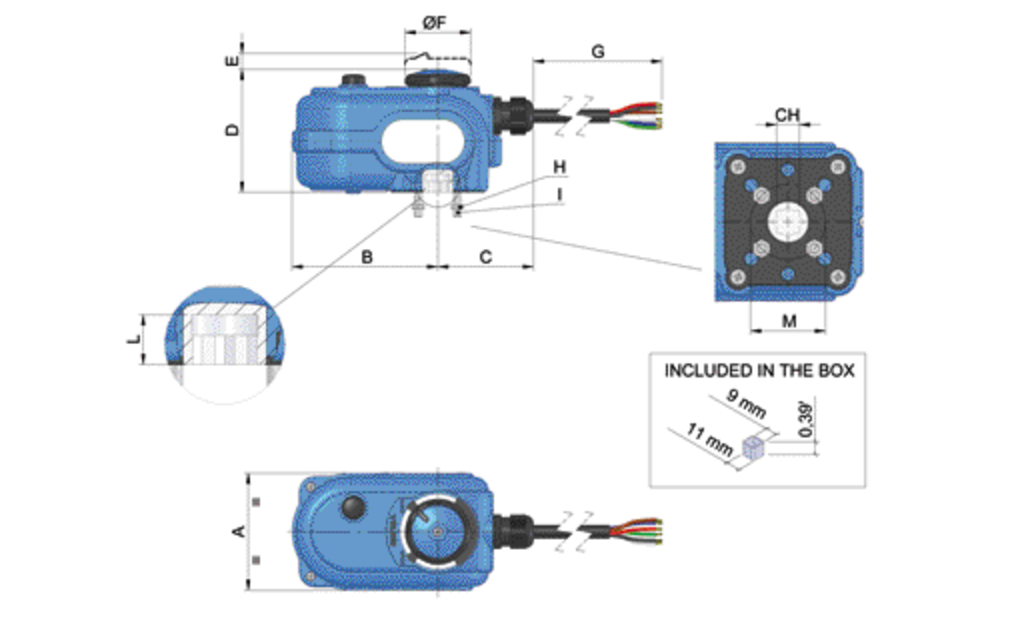

Technical specifications
SIZE PATTERN ISO 5211 CH A B C D E F G H I L M
VB010 F03-F05 9 or 11 2.99 3.72 2.44 3.15 0.28 1.69 31.5 M5 M5x0.63* 0.47 1.42

*Pre-mounted screw.

Available media and videos
PNEUMATIC AND ELECTRIC ACTUATED VALVE PACKAGES
CAT245100 USA RB-VP-VB
