ELECTRIC ACTUATORS

8E072(L)

Electric actuator with 3 way “L” stainless steel ball valve, full port, direct mount (Bonomi NA 966).

OPERATING CONDITIONS: fluid H2O - T 68°F

Technical specifications

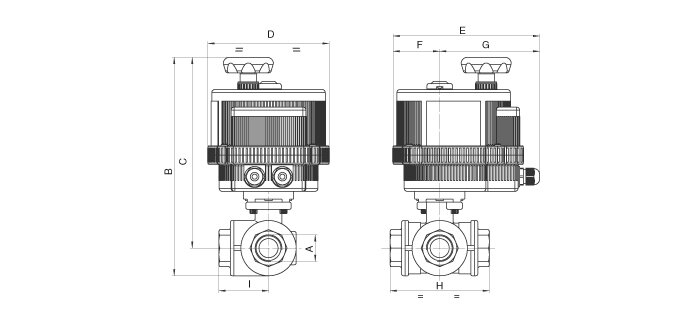

SIZE	PSI	DN - A standard port	B	C	D	E	F	G	H	I	ACT.
1/4''	1000	-	7.80	7.02	4.84	6.41	1.67	4.74	2.83	1.41	VB 015
3/8''	1000	1/2''	7.80	7.02	4.84	6.41	1.67	4.74	2.83	1.41	VB 015
1/2''	1000	3/4''	9.96	9.05	6.18	7.50	2.38	5.12	3.26	1.63	VB 030
3/4''	1000	1''	10.15	9.05	6.18	7.50	2.38	5.12	3.89	1.94	VB 030
1''	1000	1''1/4	11.97	10.64	7.28	8.43	2.66	5.77	4.40	2.20	VB 060
1''1/4	800	1''1/2	12.47	10.94	7.28	8.43	2.66	5.77	4.92	2.46	VB 060
1''1/2	800	2''	13.90	12.02	8.31	9.33	3.31	6.02	5.86	2.93	VB 110
2''	800	-	15.13	12.77	8.31	9.33	3.31	6.02	6.85	3.42	VB 190
