E500S
ELECTRIC ACTUATORS
E500S

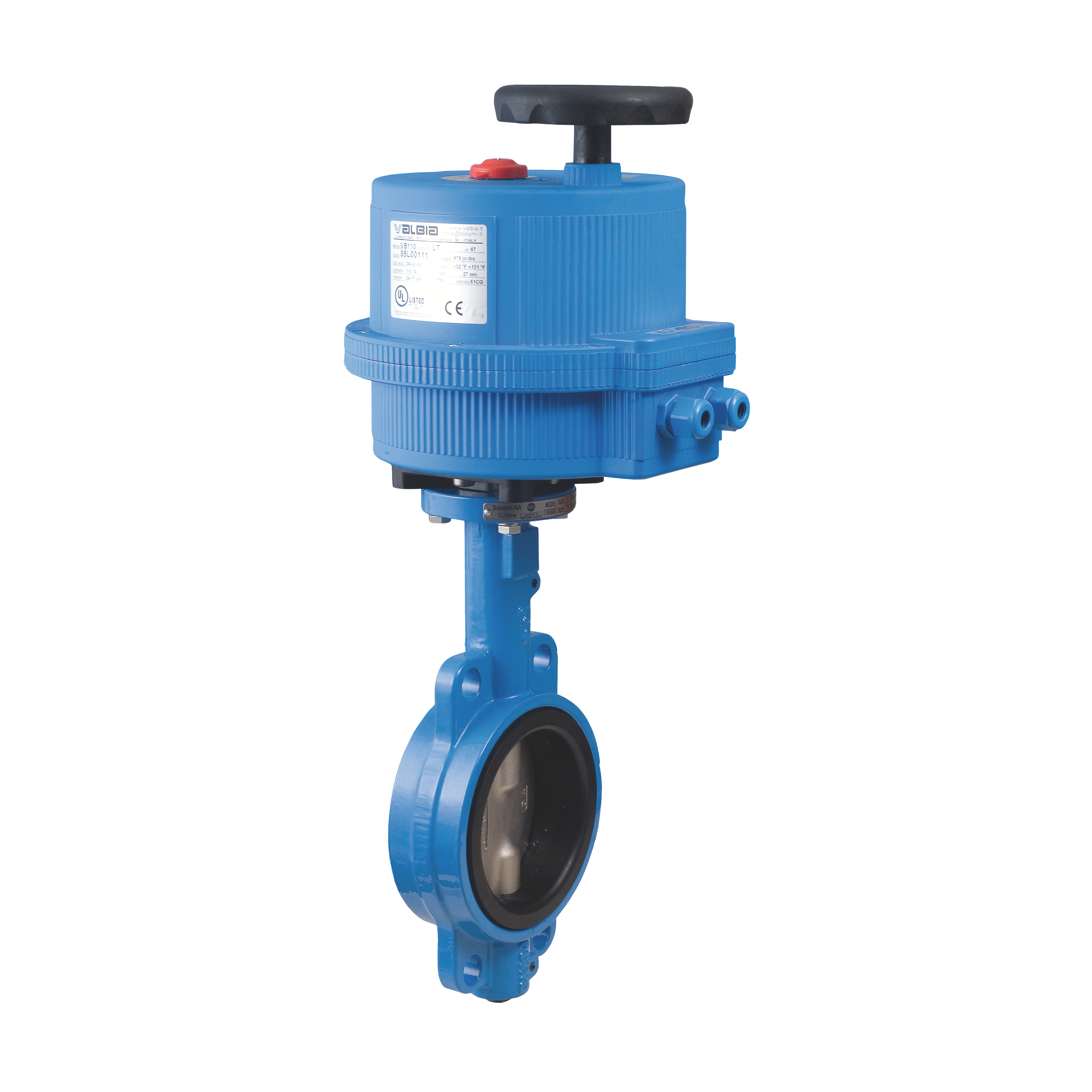

Electric actuator with d
irect mount, Wafer style EPDM seats, stainless steel disc butterfly valve.

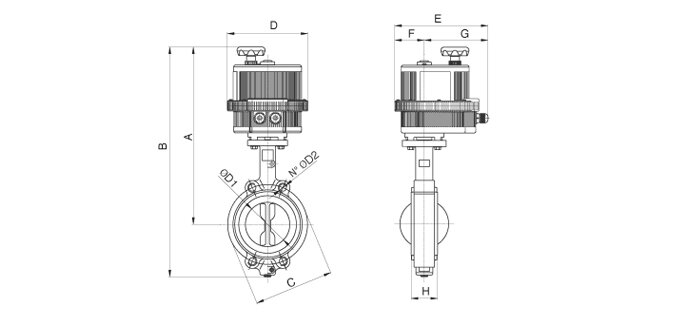

Technical specifications
SIZE
Wt/Lbs
A
B
C
D
E
F
G
H
N°
ØD2
ØD1
ACT.
12''
*
*
*
17.00
*
*
*
*
3.03
4
1.00
11.87
*
10''
55.5
20.69
26.68
14.25
8.74
9.72
3.03
6.69
2.58
4
1.00
9.86
VB 350
1 1/2''
9.9
13.11
16.08
4.74
6.18
7.50
2.38
5.12
1.61
4
0.75
1.67
VB 030
2''
10.6
13.40
16.89
4.74
6.18
7.50
2.38
5.12
1.65
4
0.75
2.02
VB 030
2 1/2''
12.2
14.29
17.79
5.49
6.18
7.50
2.38
5.12
1.76
4
0.75
2.54
VB 030
3''
13.5
14.53
18.27
6.00
6.18
7.50
2.66
5.12
1.78
4
0.75
3.10
VB 030
4''
18.1
16.33
20.82
7.50
7.28
8.43
2.66
5.77
2.05
4
0.75
4.09
VB 060
5''
22.7
16.80
21.80
8.50
7.28
8.43
3.31
6.02
2.14
4
0.87
4.85
VB 110
6''
28.00
18.04
23.51
9.50
8.31
9.33
3.31
6.02
2.20
4
0.87
6.13
VB 110
8''
39.9
19.38
26.27
11.75
8.31
9.33
3.03
6.02
2.34
4
0.87
7.97
VB 190
