ELECTRIC ACTUATORS

E501N

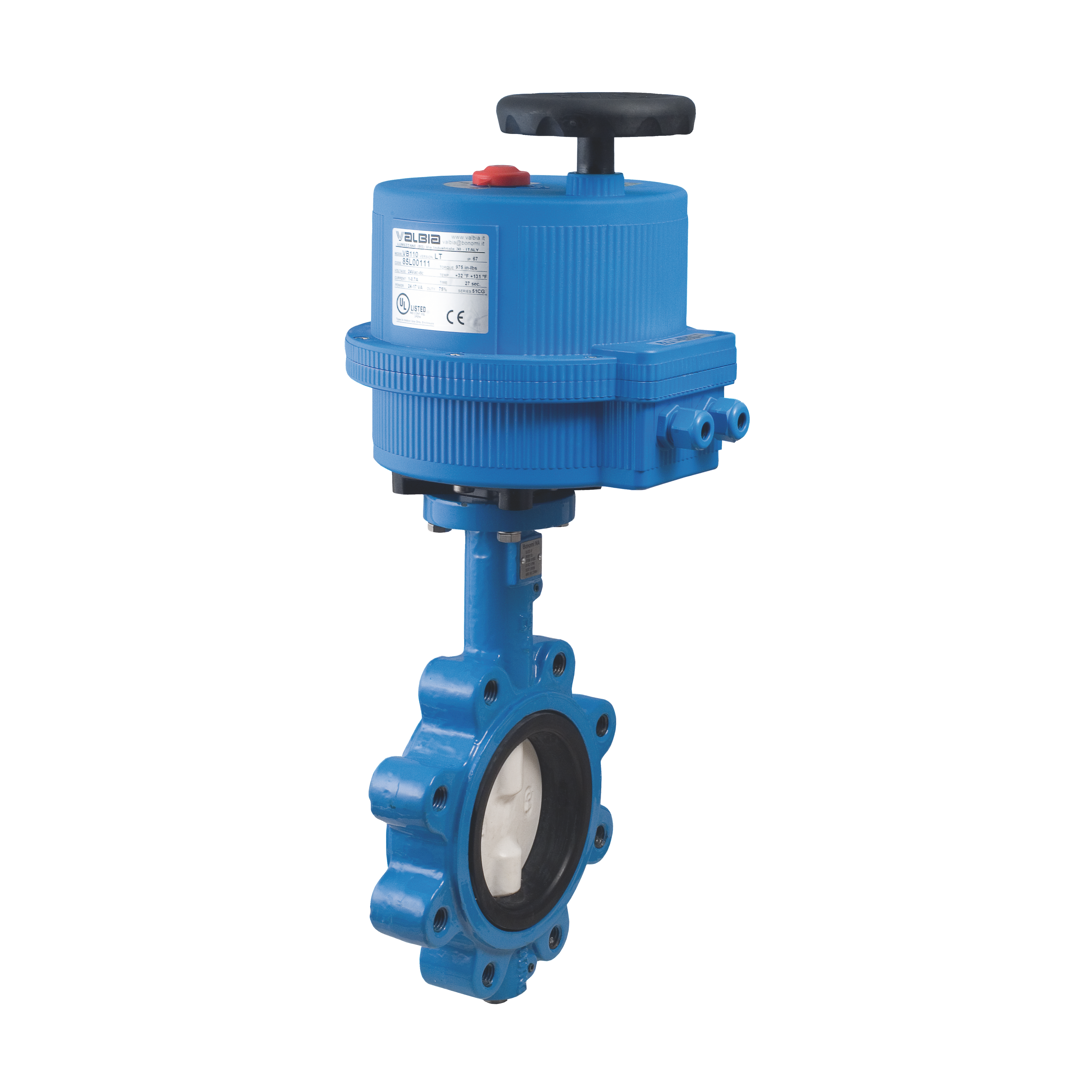

Electric actuator with direct mount, Lug style EPDM seats, nylon coated ductile iron disc butterfly valve.

Technical specifications

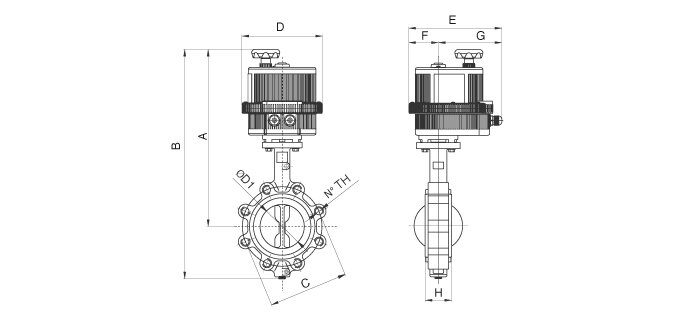

SIZE	Wt/Lbs	A	B	C	D	E	F	G	H	N°	TH	ØD1	ACT.
12''	*	*	*	17.00	*	*	*	*	3.03	12	7/8-9	11.87	*
10''	72.4	20.69	26.68	14.25	8.74	9.72	3.03	6.69	2.58	12	7/8-9	9.86	VB 350
1 1/2''	12.2	13.11	16.08	4.74	6.18	7.50	2.38	5.12	1.61	4	5/8-11	1.67	VB 030
2''	13.5	13.40	16.89	4.74	6.18	7.50	2.38	5.12	1.65	4	5/8-11	2.02	VB 030
2 1/2''	14.4	14.29	17.79	5.49	6.18	7.50	2.38	5.12	1.76	4	5/8-11	2.54	VB 030
3''	15.5	14.53	18.27	6.00	6.18	7.50	2.66	5.12	1.78	4	5/8-11	3.10	VB 030
4''	27.1	16.33	20.82	7.50	7.28	8.43	2.66	5.77	2.05	8	5/8-11	4.09	VB 060
5''	31.3	16.80	21.80	8.50	7.28	8.43	3.31	6.02	2.14	8	3/4-10	4.85	VB 060
6''	42.1	18.04	23.51	9.50	8.31	9.33	3.31	6.02	2.20	8	3/4-10	6.13	VB 110
8''	50.90	19.38	26.27	11.75	8.31	9.33	3.03	6.02	2.34	8	3/4-10	7.97	VB 190
