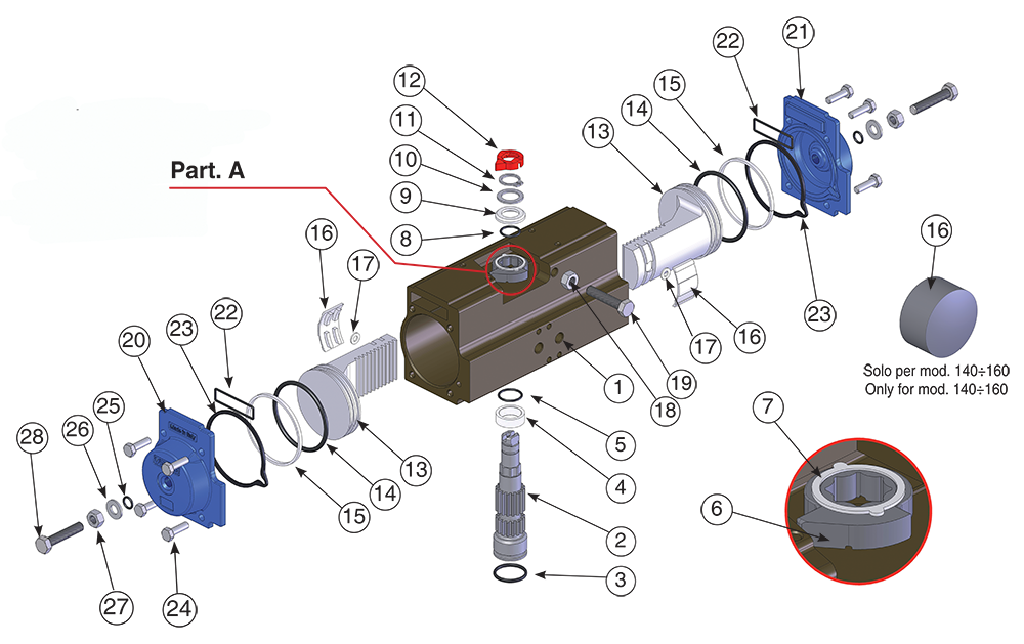

| Position | Part name | Material | Treatment | N.° pieces |
|---|---|---|---|---|
| 1 | Body | Extruded aluminium | Ossidato duro - Hard anodized | 1 |
| 2 | Anti-blowout pinion | Steel | Nichelato - Nickel plated | 1 |
| 3* | O-ring | FKM (VITON) | - | 1 |
| 4* | Spacer ring | POM | - | 1 |
| 5* | O-ring | FKM (VITON) | - | 1 |
| 6 | Cam | Stainless steel | - | 1 |
| 7 | Spacer | POM | - | 1 |
| 8* | O-ring | FKM (VITON) | - | 1 |
| 9* | Spacer | POM | - | 1 |
| 10 | Washer | Stainless steel | - | 1 |
| 11** | Snap ring | Steel | Nichelato - Nickel plated | 1 |
| 12 | Position indicator | Thermoplastic rubber TPE | - | 1 |
| 13 | Piston | Die cast aluminium | - | 2 |
| 14* | O-ring | FKM (VITON) | - | 2 |
| 15* | Antifriction ring | POM | - | 2 |
| 16* | Thrust block | POM | - | 2 [4] |
| 17 | Washer | Stainless steel | - | 2 [0] |
| 18 | Stop bolt retaining nut | Stainless steel | - | 1 |
| 19 | Stop bolt | Stainless steel | - | 1 |
| 20 | Left end cap | Die cast aluminium | Verniciato - Painted | 1 |
| 21 | Right end cap | Die cast aluminium | Verniciato - Painted | 1 |
| 22 | O-ring | FKM (VITON) | - | 2 |
| 23 | End cap seats | FKM (VITON) | - | 2 |
| 24 | End cap fixing screw | Stainless steel | - | 8 |
| 25* | O-ring | FKM (VITON) | - | 2 |
| 26 | Washer | Stainless steel | - | 2 |
| 27 | Stop bolt retaining nut | Stainless steel | - | 2 |
| 28 | Stop bolt | Stainless steel | - | 2 |

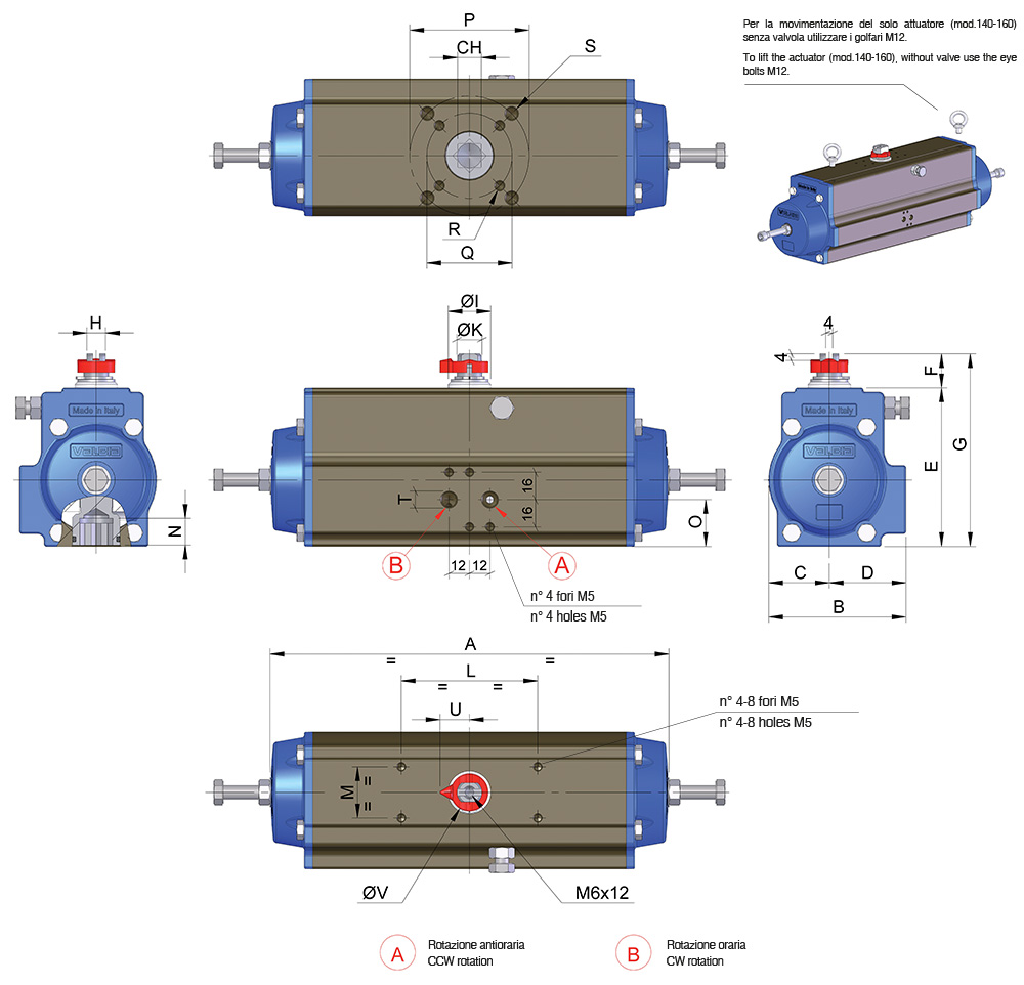

| SIZE | PATTERN ISO 5211 | CH | A | B | C | D | E | F | G | H | ØI | ØK | L | M | N | O | P | Q | R | S | T BSPT | U | ØV |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 115 | F07 - F10 | 22 | 18.78 | 5.39 | 2.52 | 2.87 | 6.39 | 1.18 | 7.57 | 0.87 | 1.93 | 1.26 | 3.15/5.12 | 1.18 | 0.94 | 1.97 | 4.02 | 2.76 | M8X12 | M10x15 | 1/4” | 1.26 | 1.73 |
*Parts subject to wear
** Reinforced series DIN 471-UNI7436
(4) (0) valid for mod. 140-160 only.
The length of the adjustment bolts changes according to the angle of rotation needed.
