VALBIA
/
PNEUMATIC PACKAGES
/
SR500N
PNEUMATIC PACKAGES
SR500N

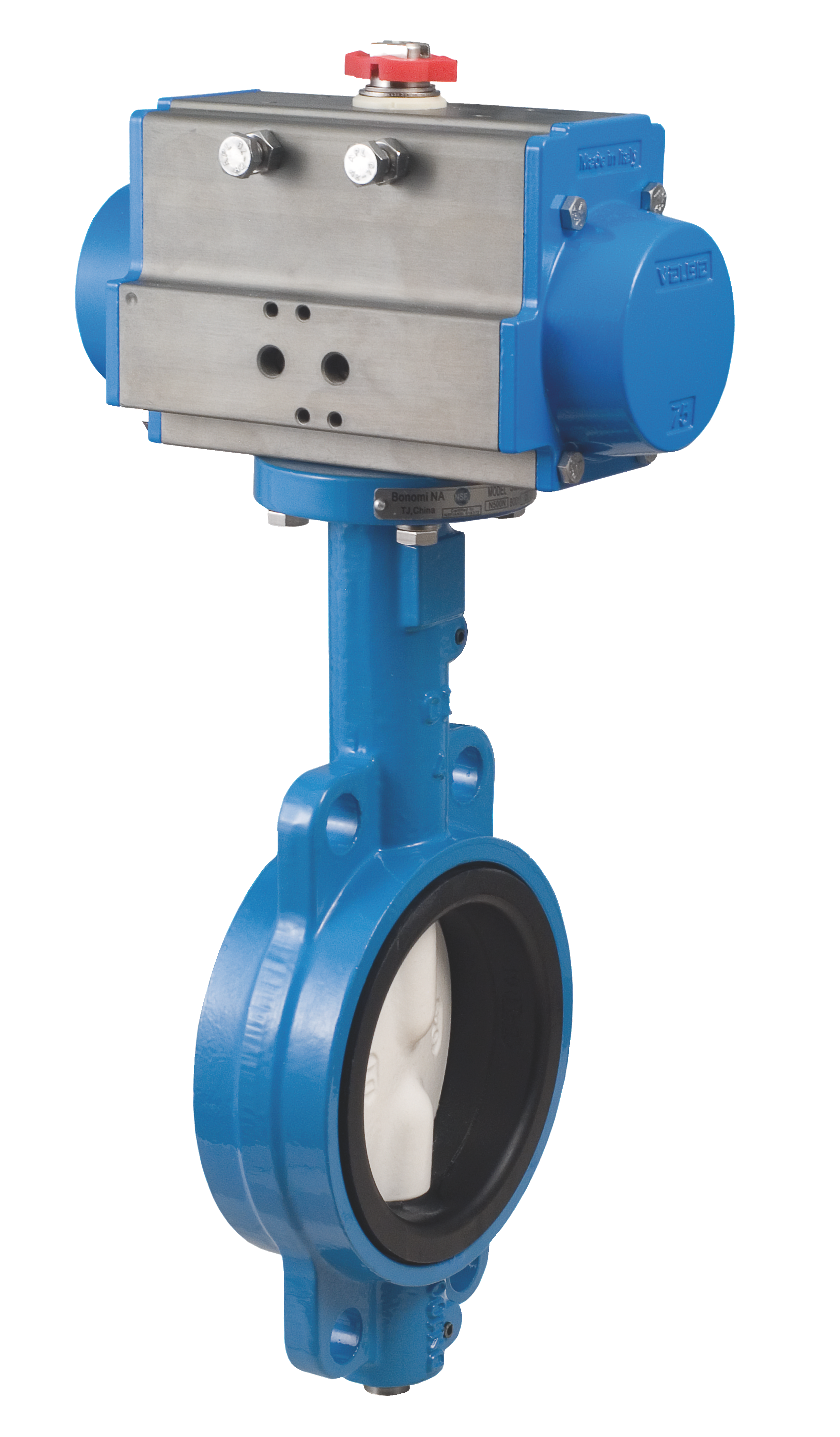

DA-SR actuator, direct mount, Wafer body EPDM seats, nylon coated disc butterfly valve with double acting actuator.

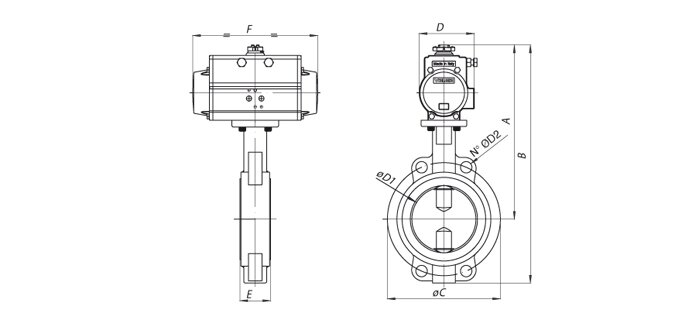

Technical specifications
SIZE
ACT.
A
B
C
D
E
F
N°
ØD2
ØD1
Wt/Lbs
12''
*
-
-
17.00
-
-
-
4
1.00
11.87
-
10''
SR 200
22.09
30.08
14.25
8.58
2.58
22.64
4
1.00
9.86
153
2''
SR 75
10.95
14.10
4.74
3.72
1.65
8.15
4
0.75
2.07
12.4
2 1/2''
SR 75
11.50
15.00
5.49
3.72
1.76
8.15
4
0.75
2.54
14.00
3''
SR 85
12.19
15.93
6.00
4.17
1.78
9.35
4
0.75
3.10
17.7
4''
SR 100
13.44
17.93
7.50
4.84
2.05
10.69
4
0.75
4.09
25.2
5''
SR 115
15.09
20.09
8.50
5.39
2.14
12.91
4
0.87
4.85
39.3
6''
SR 125
1701
22.48
9.50
6.46
2.19
16.85
4
0.87
6.13
62.5
8''
SR 160
18.82
25.71
11.75
7.36
2.38
20.55
4
0.87
7.97
94.1
