VALBIA
/
PNEUMATIC PACKAGES
/
SR501S
PNEUMATIC PACKAGES
SR501S

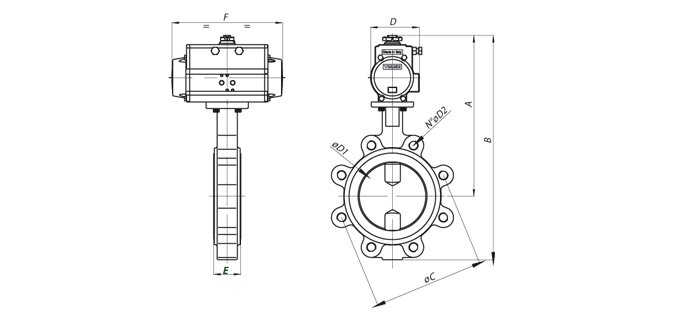

DA-SR actuator, direct mount, Lug body EPDM seats, SS disc butterfly valve with double acting actuator.
Technical specifications
SIZE
ACT.
A
B
C
D
E
F
N°
ØD2
ØD1
Wt/Lbs
12''
*
-
-
17.00
-
-
-
12
7/8-9
11.87
*
10''
SR 200
22.09
30.08
14.25
8.58
2.58
22.64
12
7/8-9
9.86
170
2''
SR 75
10.95
14.10
4.74
3.72
1.65
8.15
4
5/8-11
2.07
15.3
2 1/2''
SR 75
11.50
15.00
5.49
3.72
1.76
8.15
4
5/8-11
2.54
16.2
3''
SR85
12.19
15.93
6.00
4.17
1.78
9.35
4
5/8-11
3.10
17.3
4''
SR 100
13.44
17.93
7.50
4.84
2.05
10.69
8
5/8-11
4.09
34.2
5''
SR 115
15.09
20.09
8.50
5.39
2.14
12.91
8
3/4-10
4.85
47.9
6''
SR 125
1701
22.48
9.50
6.46
2.19
16.85
8
3/4-10
6.13
76.6
8''
SR 160
18.82
25.71
11.75
7.36
2.38
20.55
8
3/4-10
7.97
105.0
