EURO-INOX

700023

Made in Italy

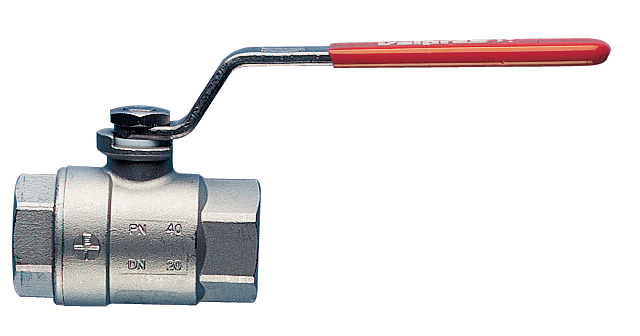

STAINLESS STEEL BALL VALVE

2-piece stainless steel FNPT threaded ball valve, full port.
• Pressure rating 1000 psi - 150 psi steam.
• Temperature range -4°F to +366°F.
• Blow-out proof stem.
• PTFE seats, packing, and thrust washer.
• 100% electronically tested in the open and closed position at 80 psi.
• ANSI B1.20.1 connections.
700023: size 1/4” to 2”.

COMPLIES WITH NACE MR 0175/ISO 15156 AND NACE MR 0103.

Technical specifications

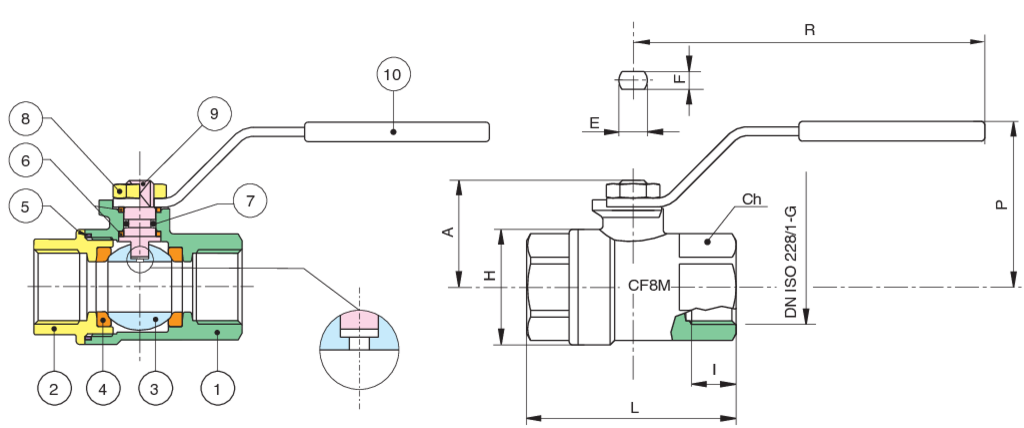

Position Part name Material N.° pieces
1 BODY CF8M 1
2 END CONNECTION CF8M 1
3 BALL AISI 316-CF8M 1
4 BALL SEAT PTFE 2
5 SEAT PTFE 1
6 STEM SEAL PTFE 2
7 O-RING FKM 1
8 NUT AISI 304 1
9 STEM AISI 316 1
10 HANDLE AISI 430 1
SIZE A H L R Ch I E F P Cv psi Weight Lbs
1/4" 1.1 1.18 2.1 4.35 0.86 0.39 0.31 0.19 1.75 6.36 1000 0.48
3/8" 1.1 1.18 2.1 4.35 0.86 0.39 0.31 0.19 1.75 9.83 1000 0.44
1/2" 1.2 1.27 2.36 4.35 1.06 0.51 0.31 0.19 1.85 22.21 1000 0.55
3/4" 1.45 1.57 2.75 5.17 1.25 0.55 0.39 0.27 2.14 40.5 600 1
1" 1.61 1.92 3.11 5.17 1.61 0.66 0.39 0.27 2.3 74.63 600 1.88
1 1/4" 1.96 2.44 3.58 6.87 1.96 0.74 0.47 0.31 0.27 120.1 350 2.66
1 1/2" 2.24 2.95 4.05 6.87 2.16 0.76 0.47 0.31 3.01 201.32 350 4
2" 2.59 3.74 4.88 6.87 2.75 0.88 0.47 0.31 3.38 348.6 350 6
