A Bonomi Group company
Stainless steel, ANSI class 150 flanged ends V-ball valve 30-60, 60, 90 degrees V-ports.
• Temperature range -4°F to +406°F.
• Blow-out proof stem, adjustable stem packing.
• RPTFE seats, packing and thrust washer.
• Standard grounded stem and ball.
• Thermal relief hole in the ball.
• 100% tested.
• PED 97/23/CE.
• Locking handle plate.
• ANSI B16.5, B16.10, B16.34 design.
• Fire Safe API 6FA-API 607.
• Antistatic Device.
• ISO 5211 mounting pad and double “D” stem.
760021V36 - 760021V6 - 760021V9: size 1/2” to 6”.
COMPLIES WITH NACE MR 0175/ISO 15156 AND NACE MR 0103.

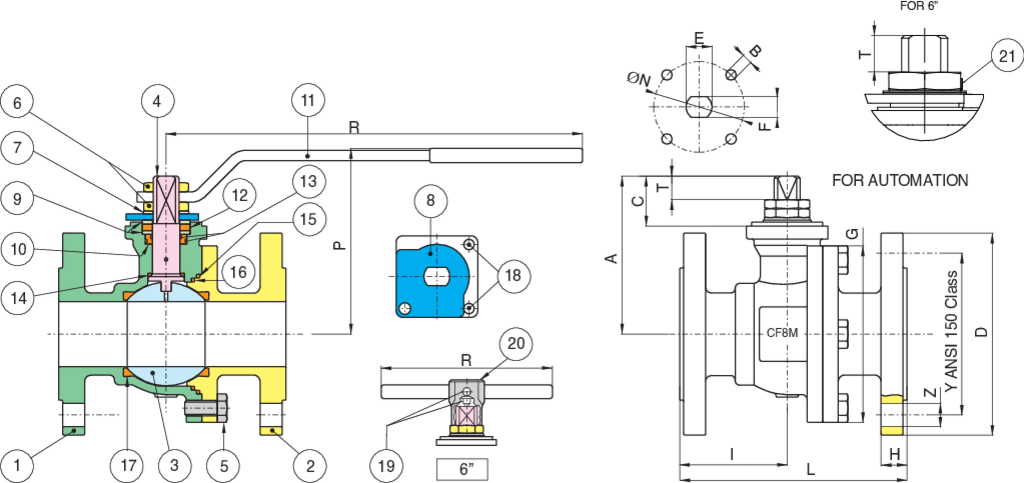

| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | A351-CF8M | 1 |
| 2 | END CONNECTION | A351-CF8M | 1 |
| 3 | BALL | A479-316/A351-CF8M | 1 |
| 4 | STEM | A479-316 | 1 |
| 5 | SCREW | STAINLESS STEEL (1/2''-2'') | 4 |
| 5 | SCREW | STAINLESS STEEL (3''-6'') | 8 |
| 6 | NUT | STAINLESS STEEL (1/2''-4'') | 2 |
| 6 | NUT | STAINLESS STEEL (1/2''-4'') | 1 |
| 7 | SPRING WASHER | STAINLESS STEEL | 2 |
| 8 | TRAVEL STOP | STAINLESS STEEL | 1 |
| 9 | PACKING GLAND | STAINLESS STEEL | 2 |
| 10 | STEM SEAL | PTFE | 1 |
| 11 | HANDLE | STAINLESS STEEL | 1 |
| 12 | STEM SEAL | GRAPHOIL | 1 |
| 13 | O-RING | FKM (Viton) | 2 |
| 14 | THRUST WASHER | RPTFE | 1 |
| 15 | SEAL | GRAPHOIL | 1 |
| 16 | SEAL | PTFE | 1 |
| 17 | BALL SEATS | RPTFE | 2 |
| 18 | SCREW | STAINLESS STEEL | 2 |
| 19 | SCREW | STAINLESS STEEL | 2 |
| 20 | BODY HANDLE | CAST IRON | 1 |
| 21 | Unscrewing grower | A182-F316 | 1 |
| SIZE | D | Y | Z | H | I | L | G | P | R | A | C | T | E | F | ISO 5211 ØN | B | Weight (Lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 3.54 | 2.38 | 4xØ0.63 | 0.45 | 1.83 | 4.25 | 2.80 | 3.46 | 5.16 | 2.05 | 0.75 | 0.31 | M10 | 0.28 | 1.65-F04 | M5 | 4.21 |
| 3/4" | 3.94 | 2.76 | 4xØ0.63 | 0.51 | 2.09 | 4.61 | 2.89 | 3.66 | 5.16 | 2.20 | 0.75 | 0.31 | M10 | 0.28 | 1.65-F04 | M5 | 5.36 |
| 1" | 4.33 | 3.13 | 4xØ0.63 | 0.57 | 2.34 | 5.00 | 3.56 | 3.50 | 6.85 | 2.85 | 1.08 | 0.51 | M12 | 0.31 | 1.97-F05 | M6 | 8.15 |
| 1 1/2" | 5.12 | 3.88 | 4xØ0.63 | 0.69 | 3.03 | 6.50 | 4.49 | 5.24 | 9.84 | 4.17 | 1.18 | 0.39 | M16 | 0.39 | 1.97-F05 | M6 | 15.65 |
| 2" | 5.91 | 4.74 | 4xØ0.63 | 0.77 | 3.39 | 7.01 | 5.37 | 5.67 | 12.64 | 4.80 | 1.52 | 0.71 | M20 | 0.55 | 2.76-F07 | M8 | 23.80 |
| 2 1/2" | 7.09 | 5.50 | 4xØ0.75 | 0.91 | 2.95 | 7.48 | - | 6.06 | 12.64 | 5.06 | 0.69 | 0.69 | 14 | 14.00 | 2.76-F07 | M8 | 34.49 |
| 3" | 7.48 | 6.00 | 4xØ0.75 | 0.94 | 3.13 | 7.99 | 7.03 | 6.81 | 15.00 | 5.94 | 1.69 | 0.71 | M24 | 0.71 | 4.02-F10 | M10 | 47.61 |
| 4" | 9.06 | 7.50 | 8xØ0.75 | 0.94 | 4.33 | 9.02 | 8.21 | 7.36 | 15.00 | 6.50 | 1.69 | 0.71 | M24 | 0.71 | 4.02-F10 | M10 | 67.00 |
| 6" | 11.02 | 9.51 | 8xØ0.87 | 1.00 | 7.13 | 15.51 | 12.24 | 12.01 | 27.56 | 9.65 | 2.68 | 1.61 | M42 | 1.18 | 4.92-F12 | M12 | 171.91 |
