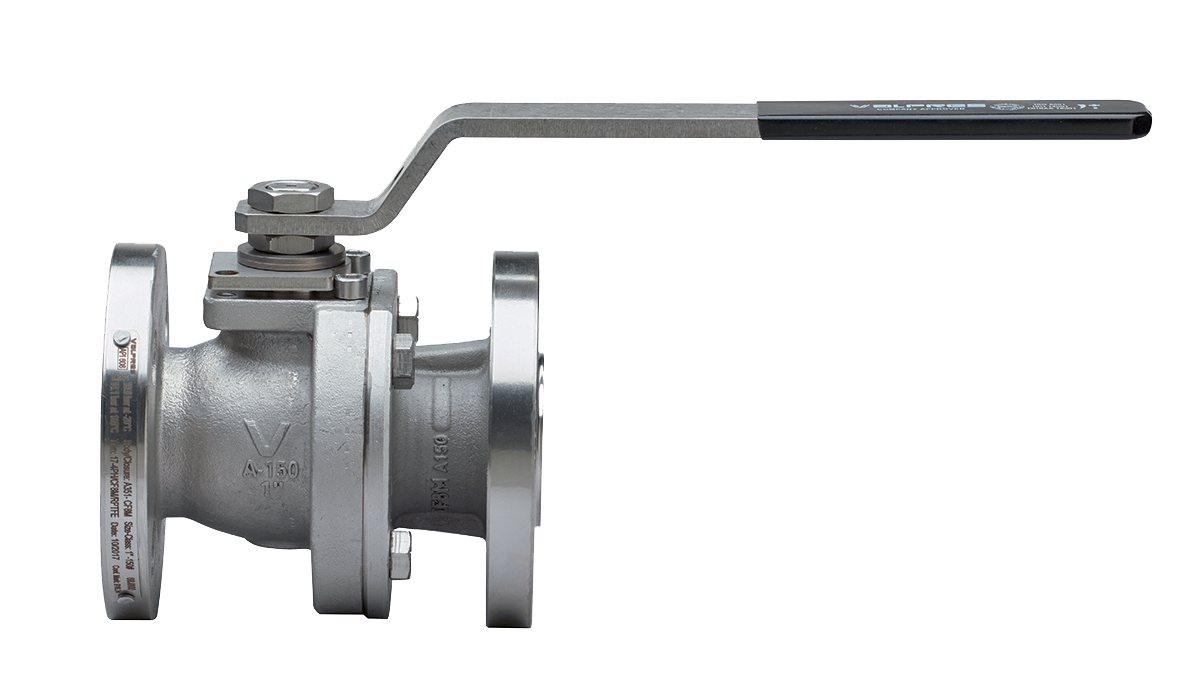

Super Duplex Stainless steel, ANSI class 150, flanged ball valve, full port.
• API 608, ASME B16.34, ASME B16.10, ASME B16.5, ASME B1.1 design.
• Temperature range: -4°F to 366°F.
• 100% tested according to API 598 standards.
• RTFE seats, packing and thrust washer.
• Blow-out proof stem, locking handle.
• Fire Safe API 607.
• Antistatic Device.
• ISO 5211 mounting pad with double “D” stem.
• Locking device.
68R015: sizes 1/2” to 6”.

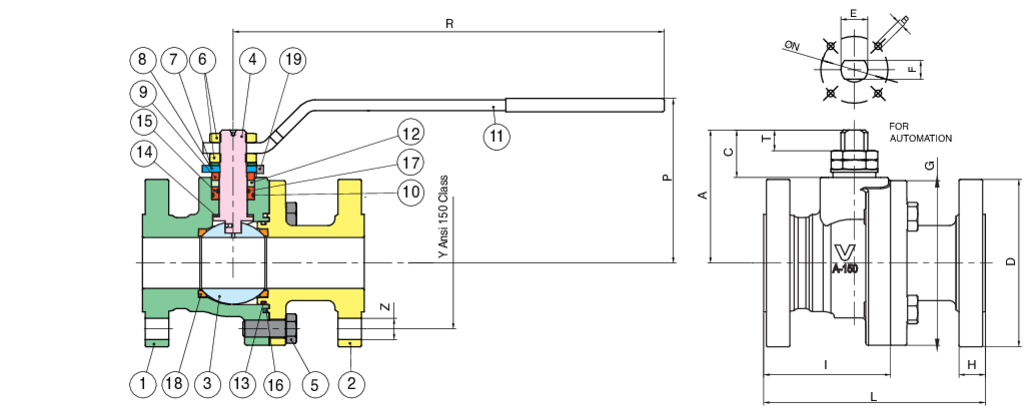

| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | UNS S32760 (ASTM A995-GR. 6) | 1 |
| 2 | END CONNECTION | UNS S32760 (ASTM A995-GR. 6) | 1 |
| 3 | BALL | UNS S32760 (ASTM A995-GR. 6)/A479-F55 | 1 |
| 4 | STEM | A479-F55/A182-F55 | 1 |
| 5 | SCREW | A193 B8 CI.2 | 4 |
| 6 | NUT | STAINLESS STEEL | 2 |
| 7 | SPRING WASHER | STAINLESS STEEL | 2 |
| 8 | 90° STOP | AISI 316 | 1 |
| 9 | BUSH | A479-TP316L | 1 |
| 10 | O-RING | FKM (VITON) | 1 |
| 11 | HANDLE | AISI 316 | 1 |
| 12 | STEM SEAL | GRAPHITE | 1 |
| 13 | O-RING | FKM (VITON) | 1 |
| 14 | THRUST WASHER | RPTFE | 1 |
| 15 | O-RING BUSH | A479-TP316L | 1 |
| 16 | BODY SEAT | GRAPHITE | 1 |
| 17 | O-RING | FKM (VITON) | 2 |
| 18 | BALL SEAT | RPTFE | 2 |
| 19 | SCREW | A2-70 | 1 |
| SIZE | D | Y | Z | H | I | L | G | P | R | A | T | E | F | ISO 5211 ØN | B | Break Torque (in/Lbs) | Cv | Weight Lbs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 3.54 | 2.37 | 4xØ0.63 | 0.46 | 1.79 | 4.25 | 3.23 | 3.74 | 6.85 | 2.13 | 0.27 | M12 | 8 | 1.65-F04 | M5 | 66.38 | 16.59 | 5.29 |
| 3/4" | 3.94 | 2.75 | 4xØ0.63 | 0.53 | 1.91 | 4.61 | 3.54 | 3.9 | 6.85 | 2.28 | 0.27 | M12 | 8 | 1.65-F04 | M5 | 115.05 | 30.25 | 7.28 |
| 1" | 4.33 | 3.13 | 4xØ0.63 | 0.58 | 2.09 | 5 | 4.13 | 3.94 | 9.84 | 2.94 | 0.37 | M16 | 10 | 1.96-F05 | M6 | 168.15 | 55.75 | 10.61 |
| 1 1/2" | 4.92 | 3.87 | 4xØ0.63 | 0.71 | 3.72 | 6.5 | 4.84 | 4.84 | 12.64 | 3.94 | 0.61 | M20 | 14 | 1.96-F05 | M6 | 327.45 | 150.39 | 19.18 |
| 2" | 5.91 | 4.74 | 4xØ0.63 | 0.77 | 2.99 | 7.01 | 5.51 | 5.24 | 12.64 | 4.27 | 0.65 | M20 | 14 | 1.96-F05 | M6 | 495.6 | 260.41 | 26.24 |
| 3" | 7.48 | 6 | 4xØ0.63 | 0.96 | 3.35 | 7.99 | 7.4 | 6.57 | 15 | 5.89 | 0.81 | M24 | 18 | 2.75-F07 | M8 | 1053.15 | 754.11 | 53.14 |
| 4" | 9.06 | 7.5 | 4xØ0.63 | 0.96 | 3.54 | 9.02 | 9.25 | 7.32 | 15 | 6.57 | 0.73 | M24 | 18 | 4.01-F10 | M10 | 1654.95 | 1178.31 | 84.89 |
| 6" | 11.02 | 9.5 | 4xØ0.63 | 1.02 | 9.49 | 15.51 | 12.4 | - | - | 9.65 | 1.61 | M42 | 30 | 4.92-F12 | M12 | 4469.25 | 3172.95 | 189.19 |
