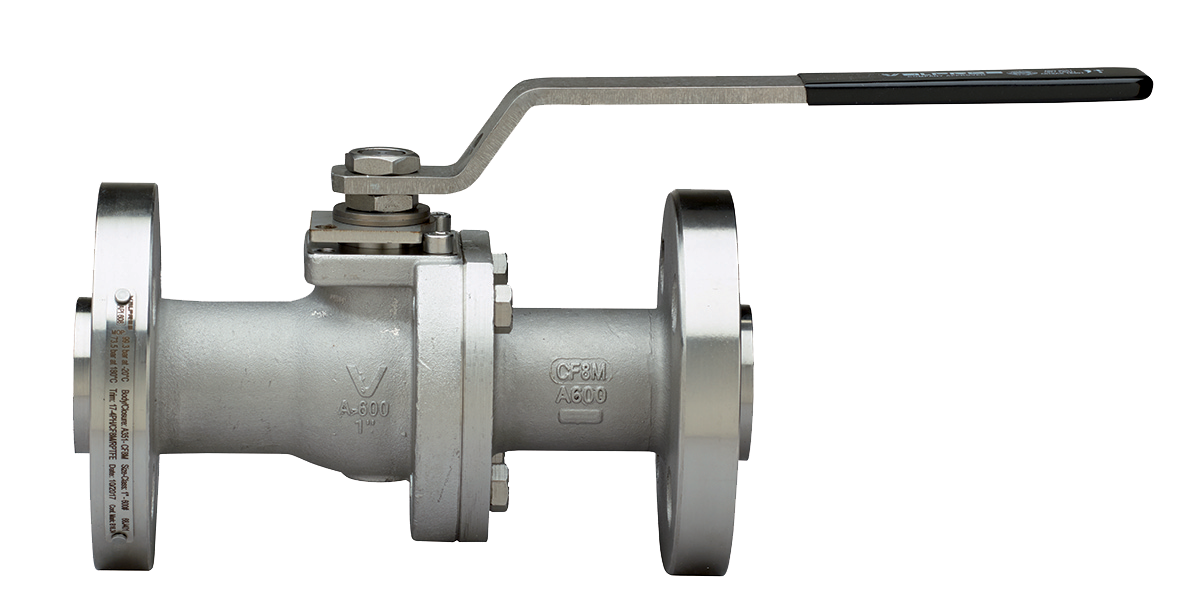

Super Duplex stainless steel, ANSI class 600, flanged ball valve, full port.
• API 608, ASME B16.34, ASME B16.10, ASME B16.5, ASME B1.1 design.
• Temperature range -4°F to 366°F.
• 100% tested according to API 598 standards.
• RTFE seats, packing and thrust washer.
• Blow-out proof stem, locking handle.
• Fire Safe API 607.
• Antistatic Device.
• ISO 5211 mounting pad with double “D” stem.
• Locking device.
68R415: sizes 1/2” to 2”.

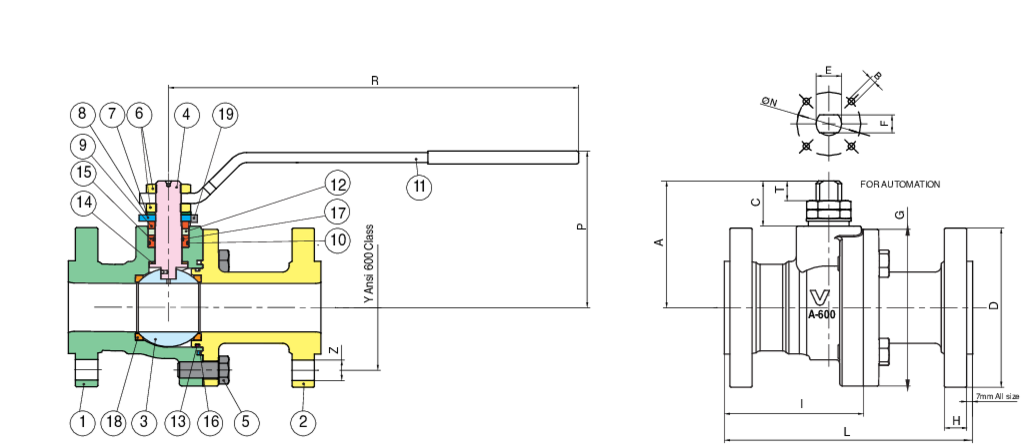

| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | UNS S32760 (ASTM A995-GR. 6) | 1 |
| 2 | END CONNECTION | UNS S32760 (ASTM A995-GR. 6) | 1 |
| 3 | BALL | UNS S32760 (ASTM A995-GR. 6)/A479-F55 | 1 |
| 4 | STEM | A564 TP630 H115OD (17-4-PH) | 1 |
| 5 | SCREW | A193 B8 CI.2 | 4-6 |
| 6 | NUT | STAINLESS STEEL | 2 |
| 7 | SPRING WASHER | STAINLESS STEEL | 2 |
| 8 | 90° STOP | AISI 316 | 1 |
| 9 | BUSH | A479-TP316L | 1 |
| 10 | O-RING | FKM (VITON) | 1 |
| 11 | HANDLE | AISI 316 | 1 |
| 12 | STEM SEAL | GRAPHITE | 1 |
| 13 | O-RING | FKM (VITON) | 1 |
| 14 | THRUST WASHER | RPTFE | 1 |
| 15 | O-RING BUSH | A479-TP316L | 1 |
| 16 | BODY SEAT | GRAPHITE | 1 |
| 17 | O-RING | FKM (VITON) | 2 |
| 18 | BALL SEAT | RPTFE | 2 |
| 19 | SCREW | A2-70 | 1 |
| SIZE | D | Y | ØZ | H | I | L | G | P | R | A | T | E | F | ISO 5211 ØN | B | Break Torque (in/Lbs) | Cv | Weight Lbs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 3.54 | 2.63 | 4xØ0.63 | 0.58 | 2.47 | 5.51 | 3.23 | 3.74 | 6.85 | 2.13 | 0.27 | M12 | 8 | 1.65-F04 | M5 | 159.3 | 16.59 | 7.94 |
| 3/4" | 3.94 | 3.25 | 4xØ0.75 | 0.64 | 2.64 | 5.98 | 3.54 | 3.9 | 6.85 | 2.28 | 0.27 | M12 | 8 | 1.65-F04 | M5 | 225.68 | 30.25 | 11.25 |
| 1" | 4.33 | 3.5 | 4xØ0.75 | 0.7 | 2.78 | 6.5 | 4.13 | 3.94 | 9.84 | 2.94 | 0.37 | M16 | 10 | 1.96-F05 | M6 | 354 | 55.75 | 15.88 |
| 1 1/2" | 4.92 | 4.5 | 4xØ0.86 | 0.83 | 4.09 | 7.48 | 5.04 | 4.84 | 12.64 | 3.9 | 0.61 | M20 | 14 | 1.96-F05 | M6 | 610.65 | 150.39 | 29.11 |
| 2" | 5.91 | 5 | 8xØ0.75 | 0.91 | 3.54 | 8.5 | 5.51 | 5.24 | 12.64 | 4.29 | 0.65 | M20 | 14 | 1.96-F05 | M6 | 1062 | 260.41 | 38.37 |
