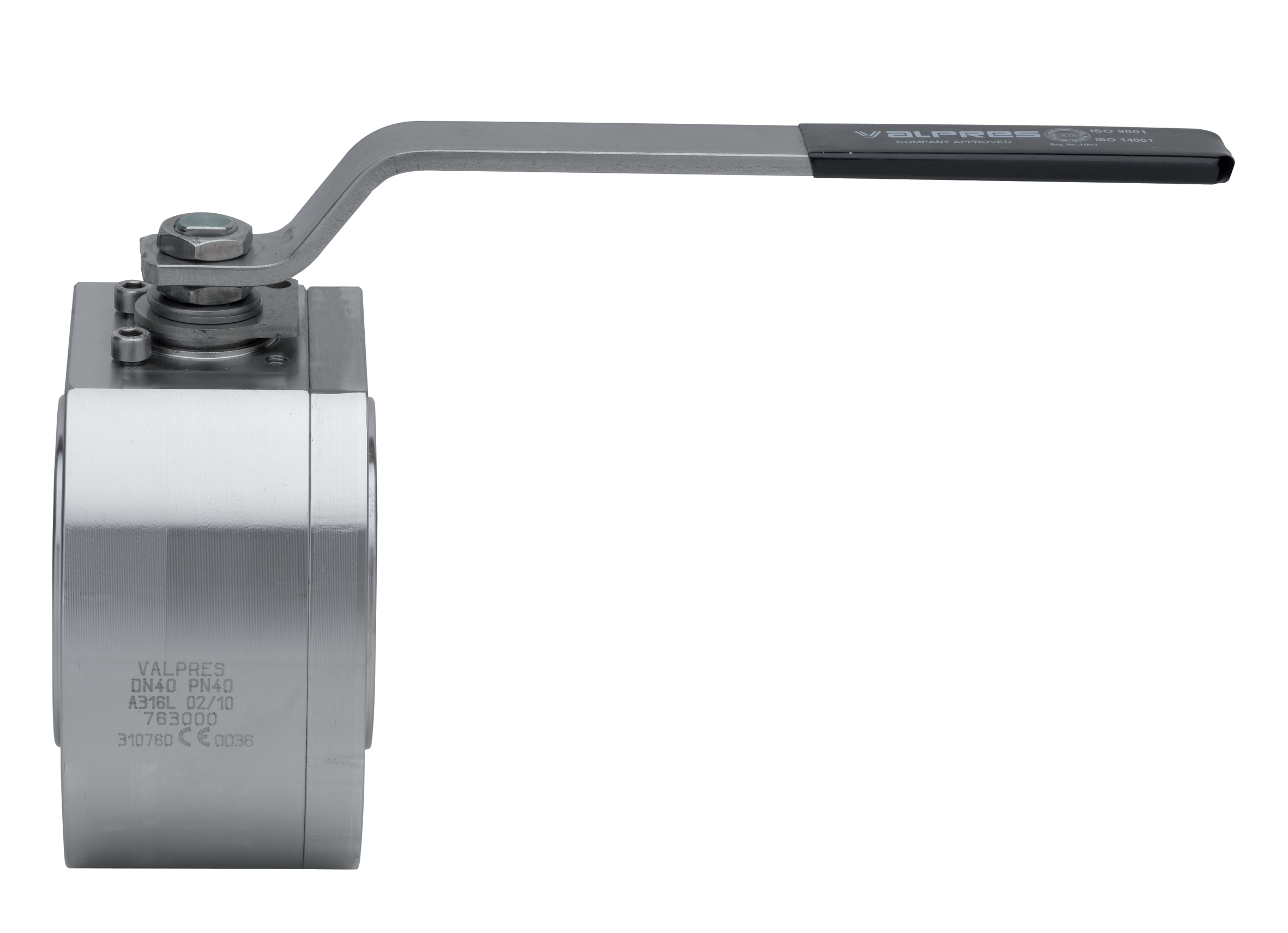

Stainless steel, ANSI class 600 flanged ball valve, full port.
• Temperature range -4°F to 366°F.
• Blow-out proof stem.
• Metal filled PTFE seats.
• Space saving design.
• 100% tested.
• Fire Safe certified to API 607.
• ANSI B16.34 design.
• Antistatic Device.
• ISO 5211 mounting pad with double “D” stem.
763101: size 1/2” to 4”.
COMPLIES WITH NACE MR 0175/ISO 15156 AND NACE MR 0103
| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | A182-F316/F316L | 1 |
| 2 | END CONNECTION | A182-F316/F316L | 1 |
| 3 | BALL | A479-316/A351-CF8M | 1 |
| 4 | BALL SEAT | RPTFE | 2 |
| 5 | STEM | A479-316 | 1 |
| 6 | NUT | STAINLESS STEEL | 2 |
| 7 | SPRING WASHER | STAINLESS STEEL | 2 |
| 8 | 90° STOP | STAINLESS STEEL | 1 |
| 9 | BUSH | A479-316 | 2 |
| 10 | STEM SEAL | PTFE | 1 |
| 11 | HANDLE | STAINLESS STEEL | 1 |
| 12 | STEM SEAL | GRAPHOIL | 1 |
| 13 | RING | FKM (VITON) | 1 |
| 14 | RING | FKM (VITON) | 1 |
| 15 | WASHER | A479-304 | 2 |
| 16 | BODY SEAL | GRAPHOIL | 1 |
| 17 | BODY SEAL | PTFE | 1 |
| 18 | THRUST WASHER | PTFE | 1 |
| 19 | SCREW | STAINLESS STEEL | 3-4-7 |
| 20 | SCREW | STAINLESS STEEL | 2 |
| 21 | NUT | STAINLESS STEEL | 1 |
| SIZE | D | Y | Z | I | L | R | P | A | C | T | E | F | ISO 5211 ØN | B | Break Torque (in/Lbs) | Cv | Weight Lbs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 3.74 | 2.63 | 4X1/2" | 0.93 | 2.17 | 5.16 | 2.8 | 2.07 | 0.69 | 0.3 | M10 | 0.28 | 1.65-F04 | M5 | 58 | 22.21 | 5.29 |
| 3/4" | 4.53 | 3.25 | 4X5/8" | 0.94 | 2.36 | 6.85 | 3.46 | 2.66 | 0.89 | 0.4 | M12 | 0.31 | 1.65-F04 | M5 | 93 | 40.5 | 8.38 |
| 1" | 4.92 | 3.5 | 4X5/8" | 1.04 | 2.56 | 6.85 | 3.62 | 2.85 | 0.93 | 0.43 | M12 | 0.31 | 1.65-F04 | M5 | 177 | 74.63 | 10.58 |
| 1 1/2" | 6.1 | 4.5 | 4X3/4" | 1.5 | 3.35 | 9.88 | 5.16 | 4.21 | 1.26 | 0.48 | M16 | 0.39 | 1.97-F05 | M6 | 354 | 201.32 | 24.68 |
| 2" | 6.5 | 5 | 8X5/8" | 1.89 | 3.94 | 12.64 | 5.28 | 4.29 | 1.34 | 0.51 | M20 | 0.55 | 2.76-F07 | M8 | 443 | 348.6 | 30.86 |
| 3" | 8.27 | 6.63 | 8X3/4" | 2.95 | 5.91 | 15 | 6.1 | 5.2 | 1.71 | 0.63 | M24 | 0.71 | 2.76-F07 | M8 | 2213 | 1009.48 | 70.53 |
| 4" | 10.83 | 8.5 | 8X7/8" | 3.64 | 7.28 | 15 | 7.28 | 6.5 | 1.71 | 0.75 | M24 | 0.71 | 4.02-F10 | M10 | 2478 | 1577.34 | 154.28 |
