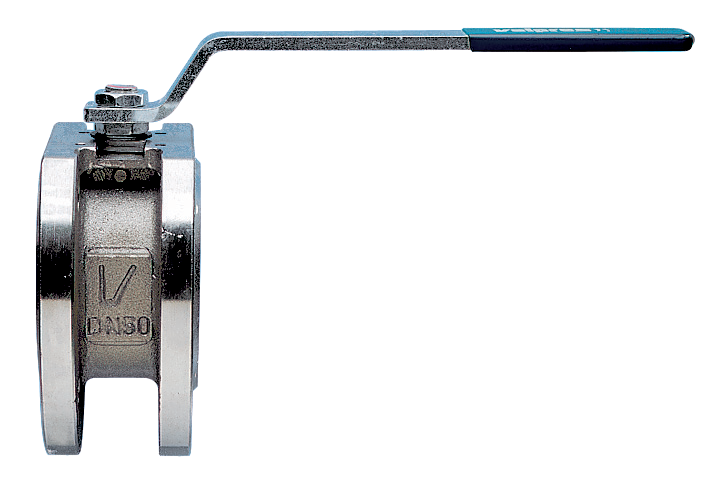

Stainless steel ANSI class 150 flanged V-ball valve 30-60, 60, 90 degrees V ports.
• Temperature range -4°F to 406°F.
• Blow-out proof stem, Antistatic Device.
• RPTFE seats, packing and thrust washer.
• Thermal relief hole in the ball.
• Space saving design.
• 100% tested.
• TUV T.A. Luft approved.
• ANSI B16.34 design.
• ISO 5211 mounting pad and double “D” stem.
720370V36 - 720370V6 - 720370V9: size 1/2” to 6”.
COMPLIES WITH NACE MR 0175/ISO 15156 AND NACE MR 0103.

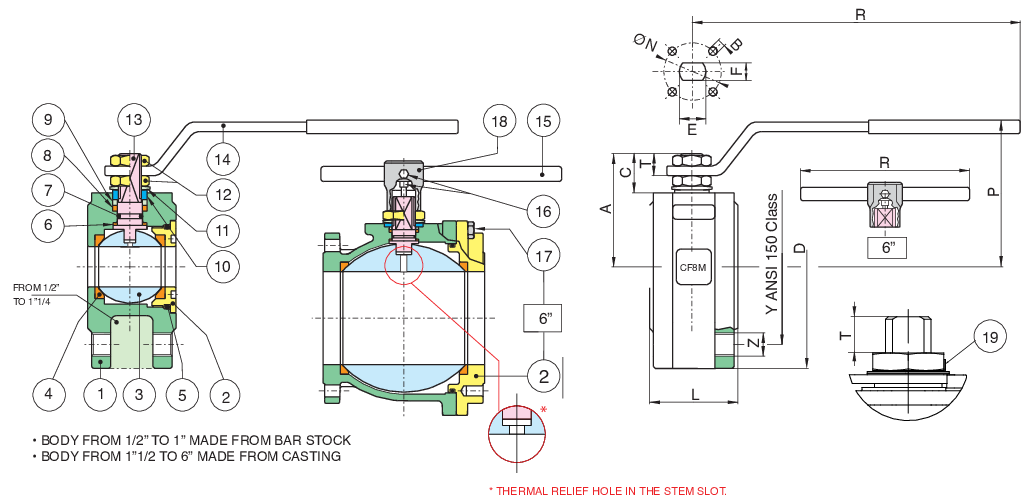

| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | A479-316/A351 CF8M | 1 |
| 2 | END CONNECTION | A479-316/A351 CF8M | 1 |
| 3 | BALL | A479-316/A351 CF8M | 1 |
| 4 | BALL SEATS | RPTFE | 2 |
| 5 | RING | FKM (VITON) | 1 |
| 6 | THRUST WASHER | RPTFE | 1 |
| 7 | RING | FKM (VITON) | 1 |
| 8 | STEM SEAL | RPTFE | 1 |
| 9 | PACKING GLAND | STEEL | 1 |
| 10 | END STOP | AISI 430 (1/2”-2”) STEEL (2 1/2”-6”) | 2 |
| 11 | SPRING WASHER | STEEL | 2 |
| 12 | NUT | STEEL | 2 |
| 13 | STEM | A479-316/A351 CF8M | 1 |
| 14 | HANDLE | STEEL | 1 |
| 15 | HANDLE DN 150-200 | STEEL | 1 |
| 16 | SCREW | STEEL | 2 |
| 17 | SCREW | STEEL | 8 |
| 18 | BODY HANDLE DN150-200 | CAST IRON | 1 |
| 19 | Unscrewing grower | A182-F316 | 1 |
| SIZE | D | Y | Z UNC | L | R | P | A | C | T | E | F | ISO 5211 ØN | B | Weight Lbs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 3.5 | 2.38 | 4x1/2" | 1.37 | 5.17 | 2.53 | 1.85 | 0.61 | 0.35 | M10 | 0.27 | 1.26-F03 | 4xM5 | 2.86 |
| 3/4" | 3.88 | 2.75 | 4x1/2" | 1.57 | 5.17 | 2.71 | 2.02 | 0.61 | 0.35 | M10 | 0.27 | 1.26-F03 | 4xM5 | 3.96 |
| 1" | 4.25 | 3.12 | 4x1/2" | 1.81 | 6.87 | 3.16 | 2.4 | 0.76 | 0.45 | M12 | 0.31 | 1.65-F04 | 4xM5 | 5.95 |
| 1 1/2" | 5 | 3.88 | 4x1/2" | 2.5 | 9.86 | 4.03 | 3.07 | 0.96 | 0.51 | M16 | 0.39 | 1.97-F05 | 4xM6 | 7.27 |
| 2" | 6 | 4.75 | 4x5/8" | 3.22 | 9.86 | 4.37 | 3.42 | 0.98 | 0.53 | M16 | 0.39 | 1.97-F05 | 4xM6 | 12.12 |
| 3" | 7.5 | 6 | 4x5/8" | 4.8 | 12.65 | 5.45 | 4.52 | 1.12 | 0.7 | M20 | 0.55 | 2.76-F07 | 4xM8 | 28.21 |
| 4" | 9 | 7.5 | 6x5/8" | 5.98 | 15.01 | 6.16 | 5.39 | 1.35 | 0.86 | M24 | 0.7 | 4.02-F10 | 4xM10 | 46.07 |
| 6" | 11 | 9.5 | 8x3/4" | 9.13 | 27.55 | 9.33 | 7.93 | 2.02 | 1.18 | M42 | 1.18 | 4.92-F12 | 4xM12 | 101.63 |
