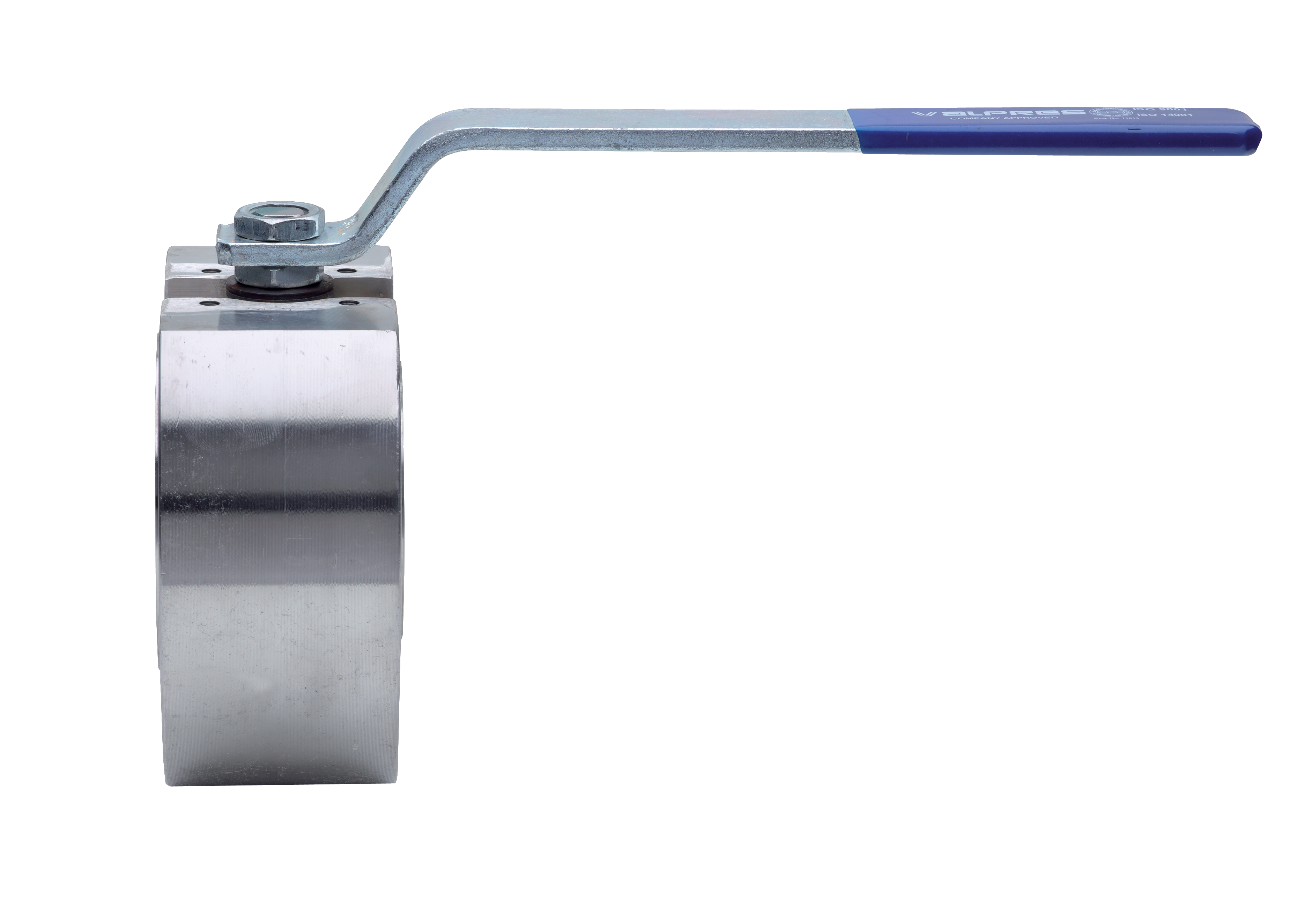

Stainless steel, ANSI class 300 flanged ball valve full port, stainless steel ball and stem.
• Temperature range -4°F to +366°F.
• Blow-out proof stem.
• RPTFE seats, packing and thrust washer.
• Space saving design.
• 100% tested.
• TUV T.A. Luft approved.
• ANSI B16.34 design.
• ISO 5211 mounting pad with double “D” stem.
720288: size 1/2” to 6”.
720741: FIRE SAFE APPROVED TO BS6755PART.2 WITH ANTISTATIC STEM DEVICE AND CARBON FILLED PTFE SEATS - size 1/2” to 6”.
COMPLIES WITH NACE MR 0175/ISO 15156 AND NACE MR 0103.

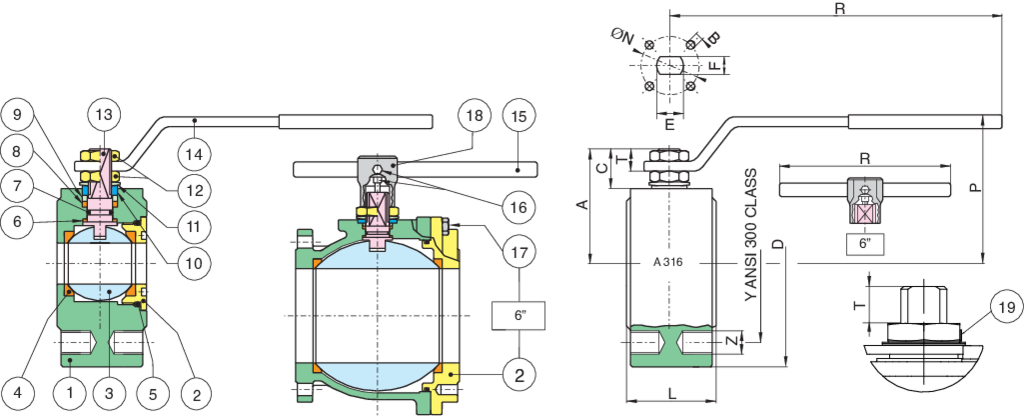

| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | A479-316/A351-CF8M | 1 |
| 2 | END CONNECTION | A479-316/A351-CF8M | 1 |
| 3 | BALL | A479-316/A351-CF8M | 1 |
| 4 | BALL SEATS | RPTFE | 2 |
| 5 | RING | FKM (Viton) | 1 |
| 6 | THRUST WASHER | PTFE | 1 |
| 7 | RING | FKM (Viton) | 1 |
| 8 | STEM SEAL | PTFE | 1 |
| 9 | PACKING GLAND | STEEL | 1 |
| 10 | END STOP | STEEL | 2-1 |
| 11 | SPRING WASHER | STEEL | 2 |
| 12 | NUT | STEEL | 2 |
| 13 | STEM | AISI 316 | 1 |
| 14 | HANDLE | STEEL | 1 |
| 15 | HANDLE (DN150-200) | STEEL | 1 |
| 16 | SCREW | STEEL | 2 |
| 17 | SCREW | STEEL | 12 |
| 18 | BODY HANDLE (DN150-200) | CAST IRON | 1 |
| 19 | Unscrewing grower | A182-F316 | 1 |
| SIZE | D | Y | Z UNC | L | R | P | A | C | T | E | F | ISO 5211 ØN | B | Break Torque (in-Lbs) | Cv | Weight (Lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 3.75 | 2.62 | 4x1/2'' | 1.38 | 5.17 | 2.54 | 1.85 | 0.45 | 0.33 | M10 | 0.28 | 1.26 | 4xM5 | 35 | 22.21 | 3.10 |
| 3/4" | 4.62 | 3.25 | 4x5/8'' | 1.57 | 5.17 | 2.71 | 2.03 | 0.37 | 0.33 | M10 | 0.28 | 1.26 | 4xM5 | 115 | 40.50 | 5.50 |
| 1" | 4.88 | 3.50 | 4x5/8'' | 1.81 | 6.87 | 3.17 | 2.40 | 0.51 | 0.45 | M12 | 0.32 | 1.65 (F04) | 4xM5 | 124 | 74.63 | 6.80 |
| 1 1/4" | 5.25 | 3.88 | 4x5/8'' | 2.12 | 6.87 | 3.33 | 2.54 | 0.65 | 0.45 | M12 | 0.32 | 1.65 (F04) | 4xM5 | 150 | 120.10 | 9.30 |
| 1 1/2" | 6.12 | 4.50 | 4x3/4'' | 2.50 | 9.86 | 4.03 | 3.07 | 0.80 | 0.47 | M16 | 0.39 | 1.97 (F05) | 4xM6 | 195 | 201.32 | 15.00 |
| 2" | 6.50 | 5.00 | 8x5/8'' | 3.23 | 9.86 | 4.43 | 3.43 | 0.63 | 0.47 | M16 | 0.39 | 1.97 (F05) | 4xM6 | 292 | 348.60 | 23.00 |
| 2 1/2" | 7.50 | 5.88 | 8x3/4'' | 4.05 | 12.66 | 5.08 | 4.11 | 0.73 | 0.67 | M20 | 0.55 | 2.75 (F07) | 4xM8 | 540 | 631.37 | 39.00 |
| 3" | 8.25 | 6.62 | 8x3/4'' | 4.80 | 12.66 | 5.45 | 4.53 | 0.83 | 0.71 | M20 | 0.55 | 2.75 (F07) | 4xM8 | 637 | 1009.48 | 55.00 |
| 4" | 10.00 | 7.88 | 8x3/4'' | 5.98 | 15.02 | 6.20 | 5.39 | 0.93 | 0.83 | M24 | 0.71 | 4.02 (F10) | 4xM10 | 956 | 1577.34 | 100.00 |
| 6" | 12.50 | 10.62 | 12x3/4'' | 9.13 | 27.56 | 9.33 | 7.93 | 2.03 | 1.18 | M42 | 1.18 | 4.92 (F129) | 4xM12 | 2903 | 4247.46 | 223.00 |
