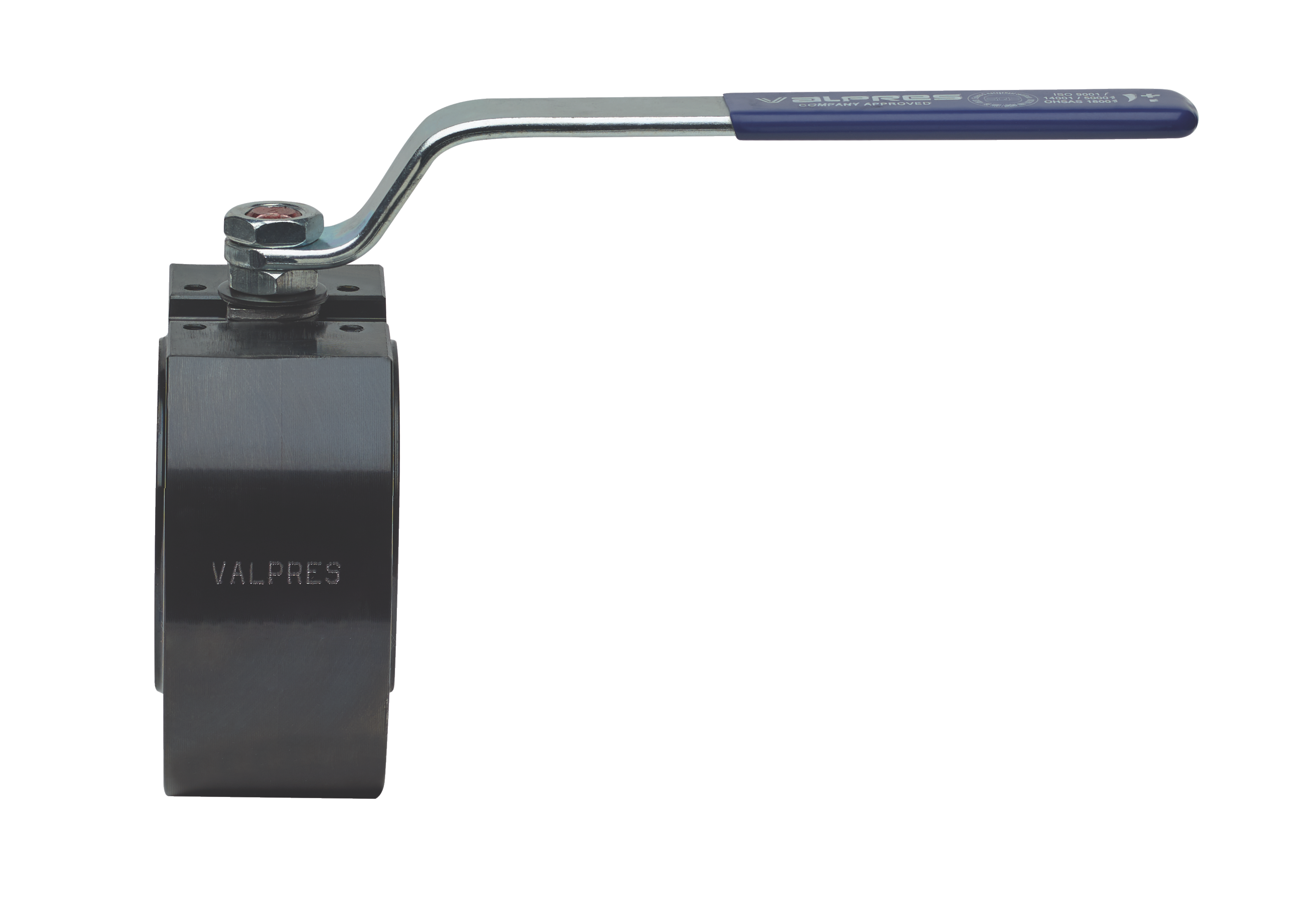

Carbon steel, ANSI class 300 flanged ball valve, stainless steel ball and stem.
• Temperature range -4°F to 366°F.
• Blow-out proof stem.
• RPTFE seats, packing and thrust washer.
• Space saving design.
• 100% tested.
• TUV T.A. Luft approved.
• ANSI B16.34 design.
• ISO 5211 mounting pad with double “D” stem.
• Locking handles available.
720289: size 1/2” to 6”.
720744: FIRE SAFE APPROVED TO BS6755PART.2 WITH ANTISTATIC STEM DEVICE AND CARBON FILLED PTFE SEATS - size 1/2” to 6”.
COMPLIES WITH NACE MR 0175/ISO 15156 AND NACE MR 0103.

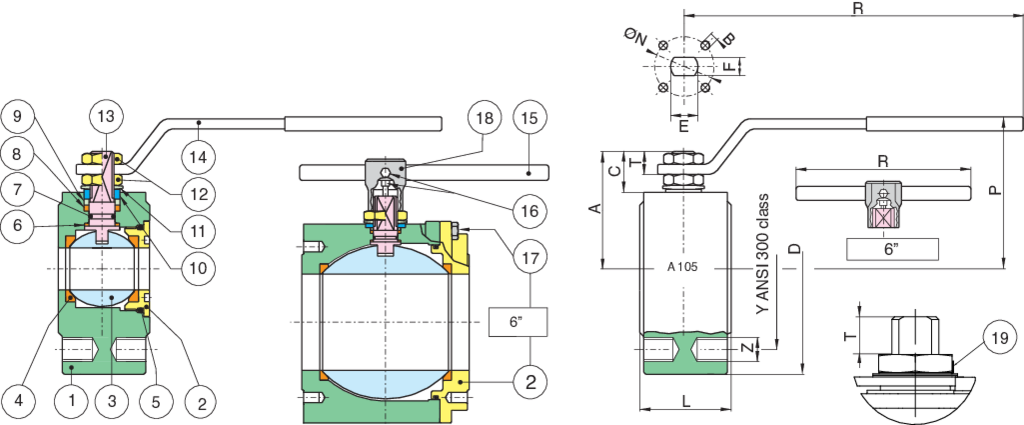

| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | ASTM A105-WCB | 1 |
| 2 | END CONNECTION | ASTM A105 | 1 |
| 3 | BALL | A479-304/A351CF8 | 1 |
| 4 | BALL SEATS | RPTFE | 2 |
| 5 | RING | FKM (VITON) | 1 |
| 6 | THRUST WASHER | PTFE | 1 |
| 7 | RING | FKM (VITON) | 1 |
| 8 | STEM SEAL | PTFE | 1 |
| 9 | PACKING GLAND | STEEL | 1 |
| 10 | END STOP | STEEL | 2 |
| 11 | SPRING WASHER | STEEL | 2 |
| 12 | NUT | STEEL | 2 |
| 13 | STEM | AISI 304 | 1 |
| 14 | HANDLE | STEEL | 1 |
| 15 | HANDLE DN 150-200 | STEEL | 1 |
| 16 | SCREW | STEEL | 2 |
| 17 | SCREW | STEEL | 12 |
| 18 | BODY HANDLE DN150-200 | CAST IRON | 1 |
| 19 | Unscrewing grower | A182-F316 | 1 |
| SIZE | D | Y | Z UNC | L | R | P | A | C | T | E | F | ISO 5211 ØN | B | Break Torque (in/Lbs) | Cv | Weight Lbs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 3.75 | 2.62 | 4x1/2" | 1.38 | 5.17 | 2.54 | 1.85 | 0.45 | 0.33 | M10 | 0.28 | 1.26 | 4xM5 | 35 | 22.21 | 3.1 |
| 3/4" | 4.62 | 3.25 | 4x5/8" | 1.57 | 5.17 | 2.71 | 2.03 | 0.37 | 0.33 | M10 | 0.28 | 1.26 | 4xM5 | 115 | 40.5 | 5.5 |
| 1" | 4.88 | 3.5 | 4x5/8" | 1.81 | 6.87 | 3.17 | 2.4 | 0.51 | 0.45 | M12 | 0.32 | 1.65 (F04) | 4xM5 | 124 | 74.63 | 6.8 |
| 1 1/4" | 5.25 | 3.88 | 4x5/8" | 2.12 | 6.87 | 3.33 | 2.54 | 0.35 | 0.45 | M12 | 0.32 | 1.65 (F04) | 4xM5 | 150 | 102.1 | 9.3 |
| 1 1/2" | 6.12 | 4.5 | 4x3/4" | 2.5 | 9.86 | 4.03 | 3.07 | 0.8 | 0.47 | M16 | 0.39 | 1.97 (F05) | 4xM6 | 195 | 201.32 | 15 |
| 2" | 6.5 | 5 | 8x5/8" | 3.23 | 9.86 | 4.43 | 3.43 | 0.63 | 0.47 | M16 | 0.39 | 1.97 (F05) | 4xM6 | 292 | 348.6 | 23 |
| 2 1/2" | 7.5 | 5.88 | 8x3/4" | 4.05 | 12.66 | 5.08 | 4.11 | 0.73 | 0.67 | M20 | 0.55 | 2.76 (F07) | 4xM8 | 540 | 631.37 | 39 |
| 3" | 8.25 | 6.62 | 8x3/4" | 4.8 | 12.66 | 5.45 | 4.53 | 0.83 | 0.71 | M20 | 0.55 | 2.76 (F07) | 4xM8 | 637 | 1009.48 | 55 |
| 4" | 10 | 7.88 | 8x3/4" | 5.98 | 15.02 | 6.2 | 5.39 | 0.93 | 0.83 | M24 | 0.71 | 4.02 (F10) | 4xM10 | 956 | 1577.34 | 100 |
| 6" | 15.74 | 10.62 | 12x3/4" | 9.13 | 27.56 | 9.33 | 7.93 | 2.03 | 1.18 | M42 | 1.18 | 4.92 (F12) | 4xM12 | 2903 | 4247.46 | 223 |
