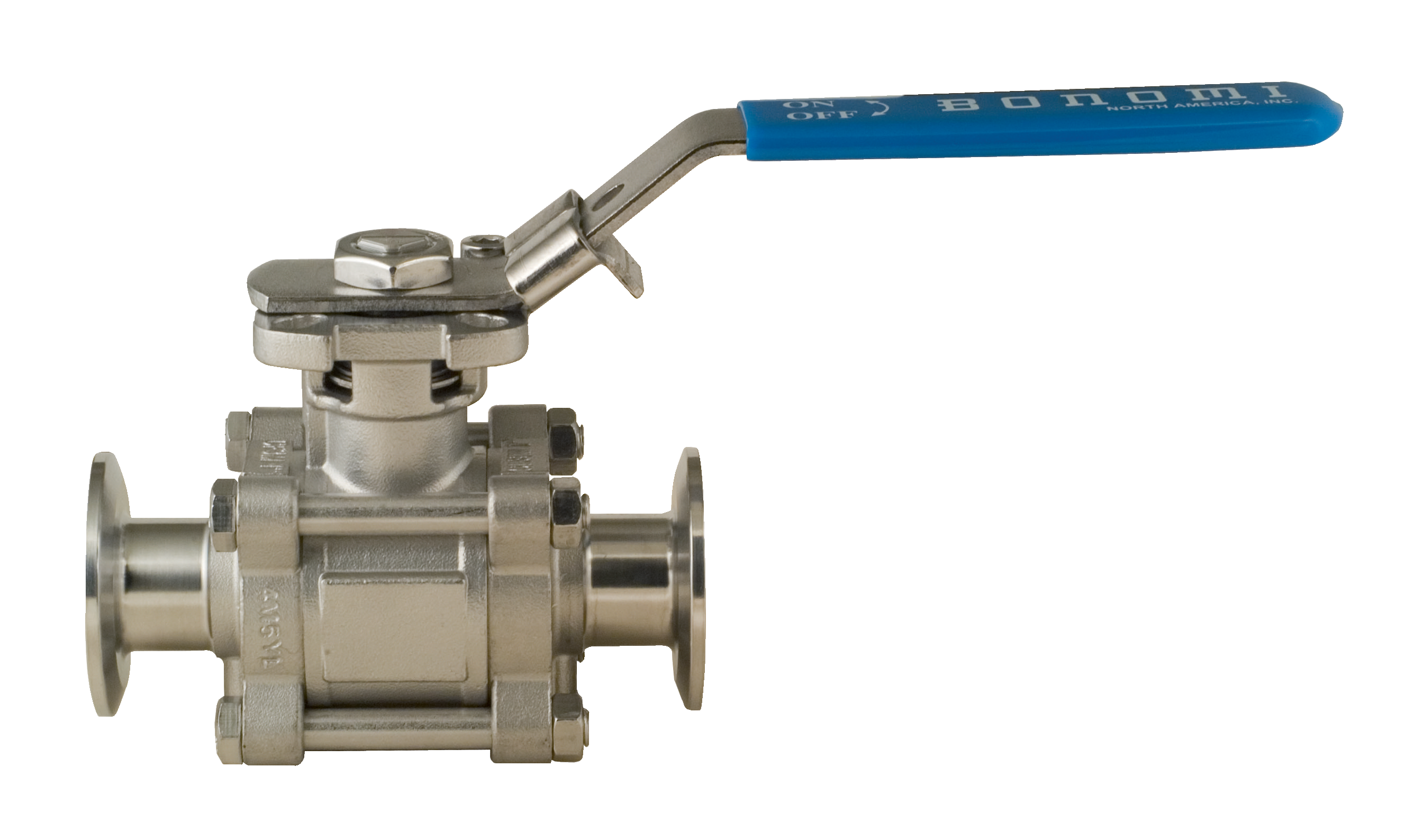

Stainless steel, 3-piece direct mount, sanitary full port ball valves with latch locking lever.
• ISO 5211 direct mount pad/square stem.
• Working pressure 1000 psi WOG (1/2” to 2”) 800 psi WOG (2 1/2” to 4”).
• Temperature range -20°F to 450°F.
• Blow-out proof stem.
• Antistatic Device.
• International polishing to Ra 15 micron.
• Tri-clamp style end connections.
• Ball valves comply with standards: ISO 5211, ANSI B 16.11, MSS SP-25, MSS SP-55.
• Maintenance free live loaded double sealing stem.
• Live loaded stem packing design.
770: NON-CAVITY FILLED - size 1/2” to 4”.
771: CAVITY FILLED - size 1/2” to 4”.

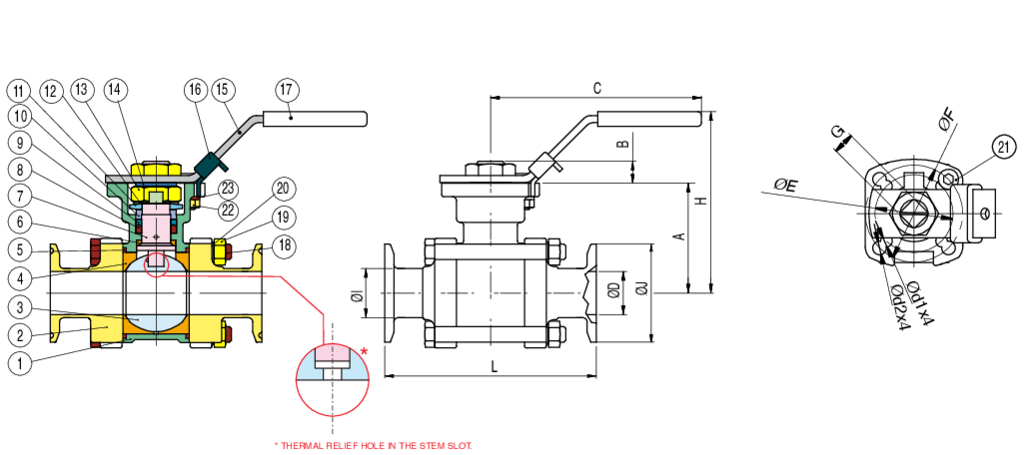

| Position | Part name | Material | N.° pieces |
|---|---|---|---|
| 1 | BODY | CF3M | 1 |
| 2 | END CONNECTION | CF3M | 2 |
| 3 | BALL | AISI 316L | 1 |
| 4 | SEATS | PTFE | 2 |
| 5 | JOINT GASKET | PTFE | 2 |
| 6 | STEM SEAL | RTFE | 1 |
| 7 | STEM | AISI 316L | 1 |
| 8 | GLAND PACKING | PTFE | 2 |
| 9 | GLAND PACKING | PTFE+GLASS | 1 |
| 10 | GLAND BUSH | AISI 304 | 1 |
| 11 | BELLEVILLE WASHER | AISI 301 | 2 |
| 12 | STOP WASHER | AISI 304 | 1 |
| 13 | STEM NUT | AISI 304 | 2 |
| 14 | STEM WASHER | AISI 304 | 1 |
| 15 | HANDLE | AISI 304 | 1 |
| 16 | LOCKING DEVICE | AISI 304 | 1 |
| 17 | HANDLE SLEEVE | VINYL | 1 |
| 18 | BOLT | AISI 304 | 4 |
| 19 | BOLT NUT | AISI 304 | 4 |
| 20 | BOLT WASHER | AISI 304 | 4 |
| 21 | STOP PIN | AISI 304 | 1 |
| 22 | PIN NUT | AISI 304 | 1 |
| 23 | WASHER | AISI 304 | 1 |
| SIZE | ØD | ØI | ØJ | A | B | C | ØE | ØF | G mm | L | H | Ød1 | Ød2 | CV | psi | ISO 5211 | Weight Lbs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.37 | 0.5 | 0.99 | 1.65 | 0.25 | 5.47 | 1.41 | 1.65 | 9 | 3.5 | 3.03 | 0.23 | 0.23 | 14 | 1000 | F03/F04 | 1.67 |
| 3/4" | 0.62 | 0.74 | 0.99 | 1.88 | 0.27 | 5.47 | 1.41 | 1.65 | 9 | 4 | 3.26 | 0.23 | 0.23 | 45 | 1000 | F03/F04 | 1.91 |
| 1" | 0.87 | 1 | 1.98 | 2.22 | 0.44 | 6.49 | 1.65 | 1.96 | 11 | 4.5 | 3.77 | 0.23 | 0.27 | 81 | 1000 | F04/F05 | 3.17 |
| 1 1/2" | 1.37 | 1.5 | 1.98 | 3.05 | 0.55 | 8.46 | 1.96 | 2.75 | 14 | 5.51 | 5 | 0.29 | 0.35 | 215 | 1000 | F05/F07 | 7.24 |
| 2" | 1.87 | 2 | 2.51 | 3.35 | 0.55 | 8.46 | 1.96 | 2.75 | 14 | 6.25 | 5.27 | 0.29 | 0.35 | 410 | 1000 | F05/F07 | 10.1 |
| 2 1/2" | 2.37 | 2.5 | 3.04 | 4.27 | 0.67 | 11.81 | 2.75 | 4.01 | 17 | 6.85 | 6.57 | 0.39 | 0.47 | 618 | 800 | F05/F07 | 21.8 |
| 3" | 2.87 | 3 | 3.57 | 4.63 | 0.71 | 14.56 | 2.75 | 4.01 | 17 | 7.6 | 6.92 | 0.39 | 0.47 | 940 | 800 | F05/F07 | 29 |
| 4" | 3.83 | 4 | 4.68 | 5.21 | 0.67 | 14.56 | 2.75 | 4.01 | 17 | 8.89 | 7.55 | 0.39 | 0.47 | 1840 | 800 | F05/F07 | 46.5 |
| 6" | 3.83 | 5.12 | 6.57 | 12.85 | 4.37 | 13.78 | 4.02 | 4.92 | 22 | 12.93 | 6.89 | 0.53 | 0.44 | C/F | 600 | F10/F12 | 155 |
