5V0100

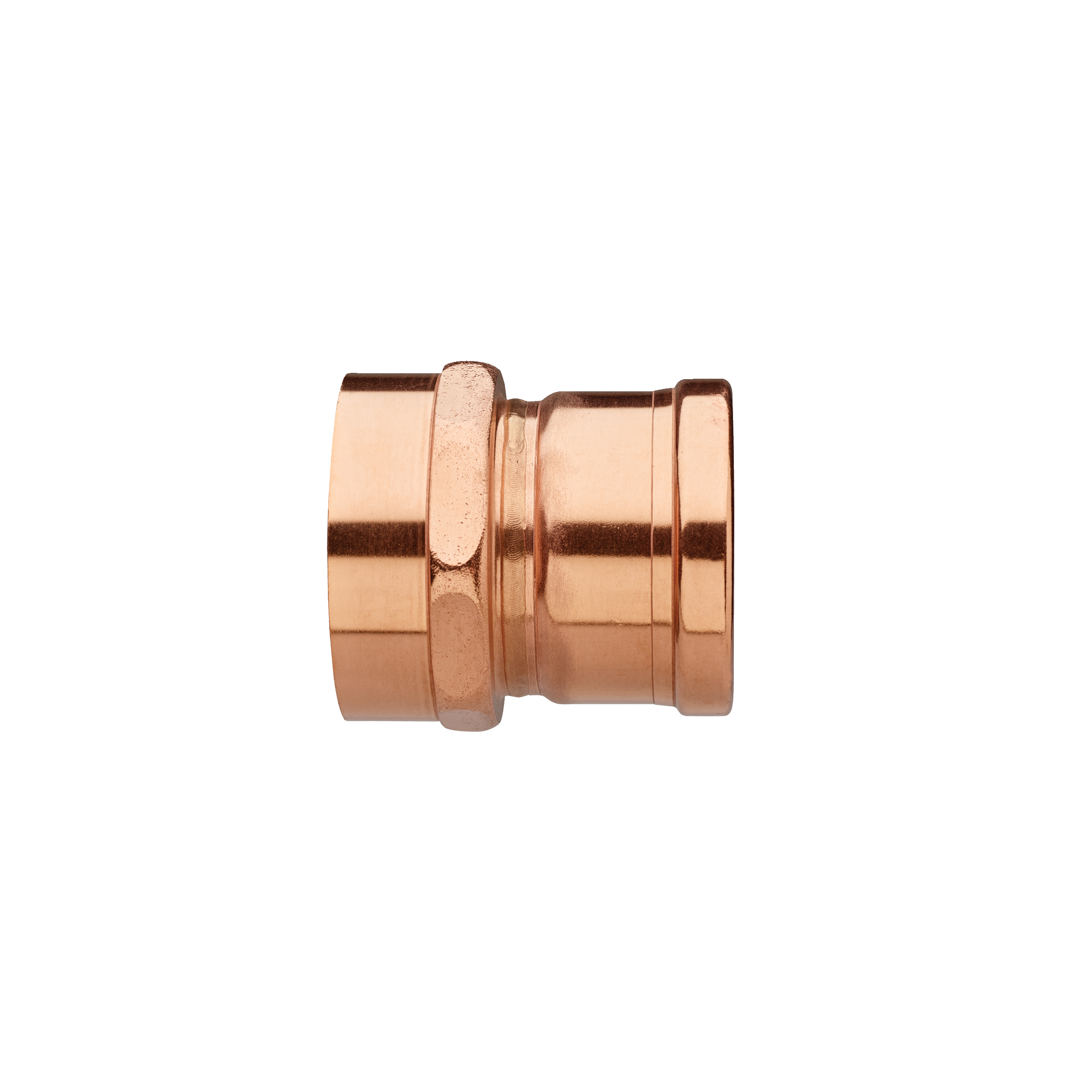

Brass F/female thread adapter.

Technical specifications

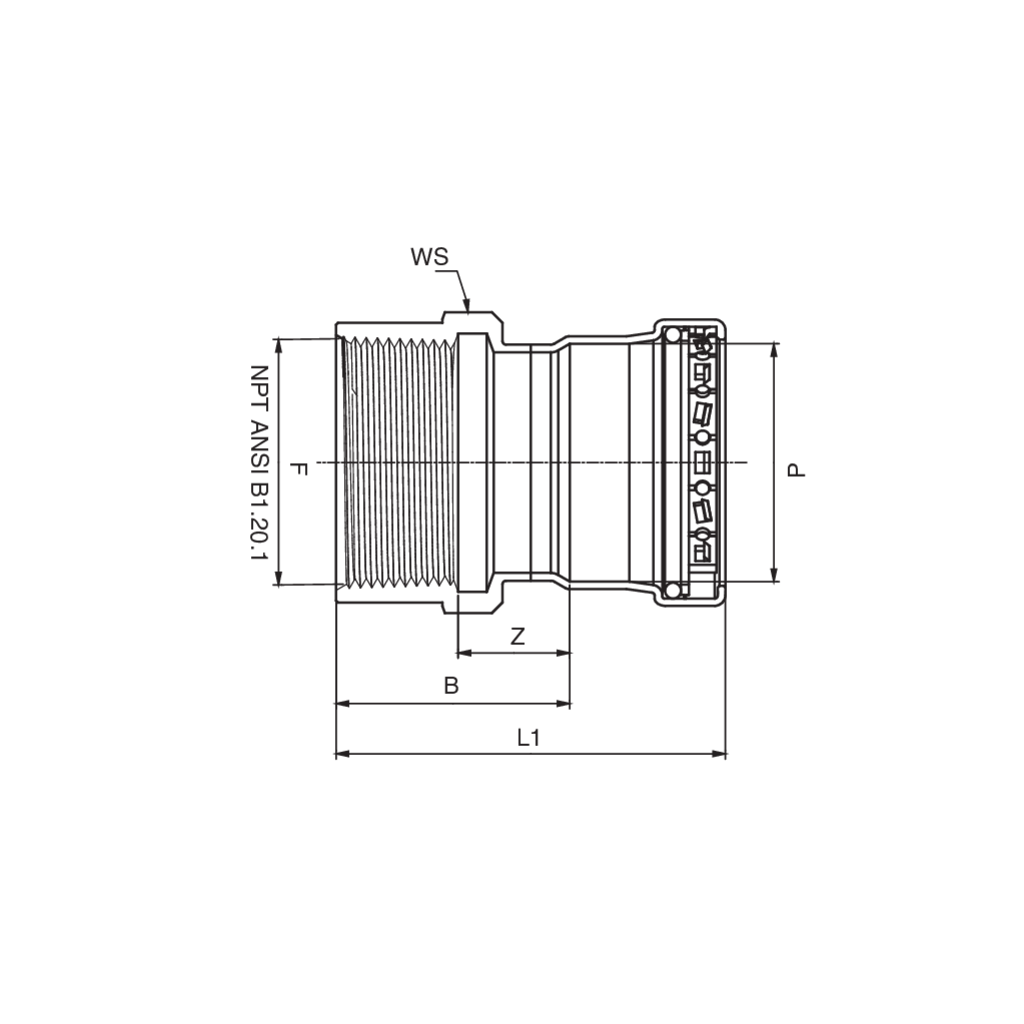

P x F	BAG	MASTER BOX	PART NO.	L	B	Z	WS
2 1/2'' x 2 1/2''	1	8	5V01001212	4.33	2.60	1.24	3.19
3'' x 3''	1	6	5V01001414	4.76	2.80	1.40	3.94
4'' x 4''	1	6	5V01001818	5.33	2.93	1.40	4.92

Available media and videos

BIM

5V0100_Copper.zip
