5V0200

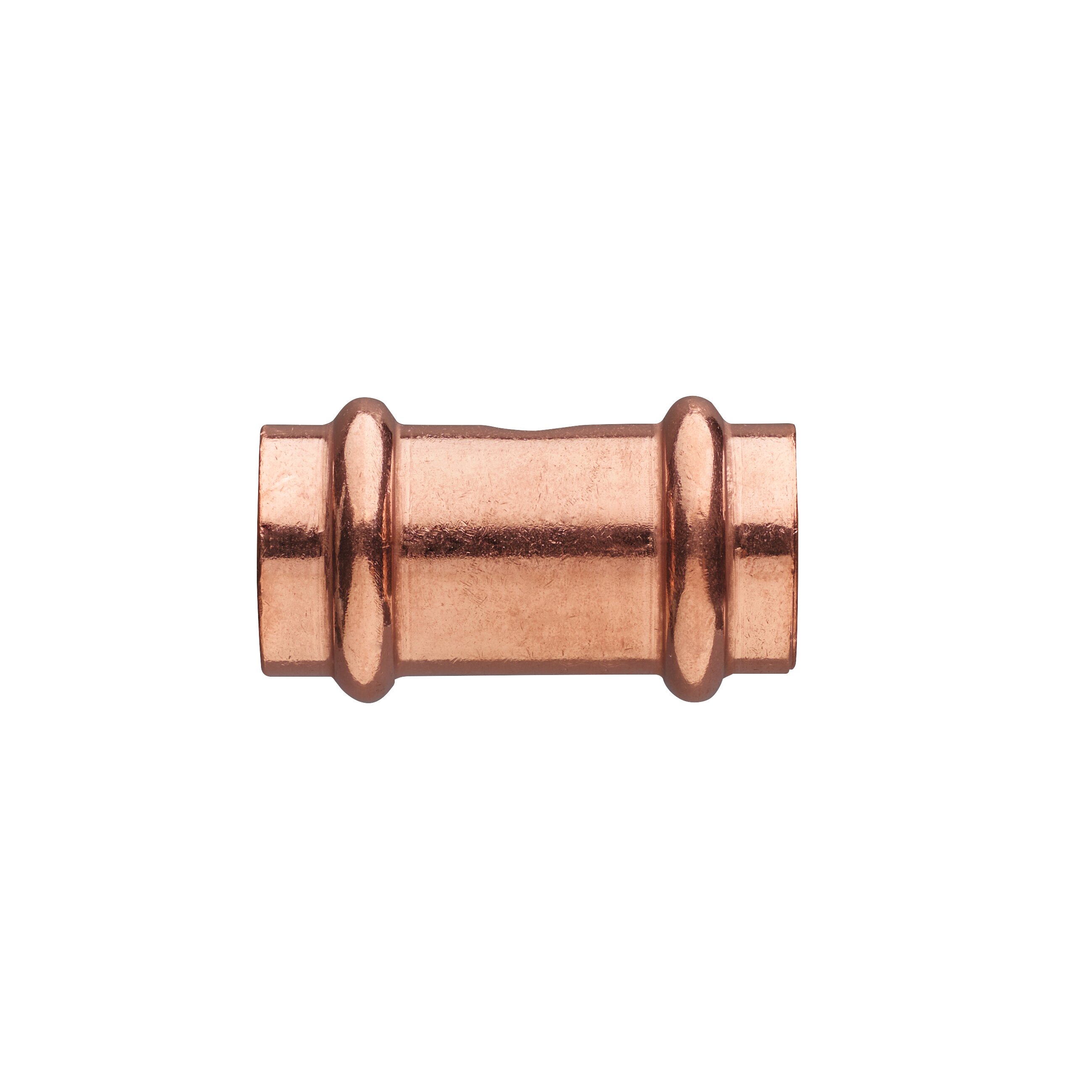

Copper F/F coupling.

Technical specifications

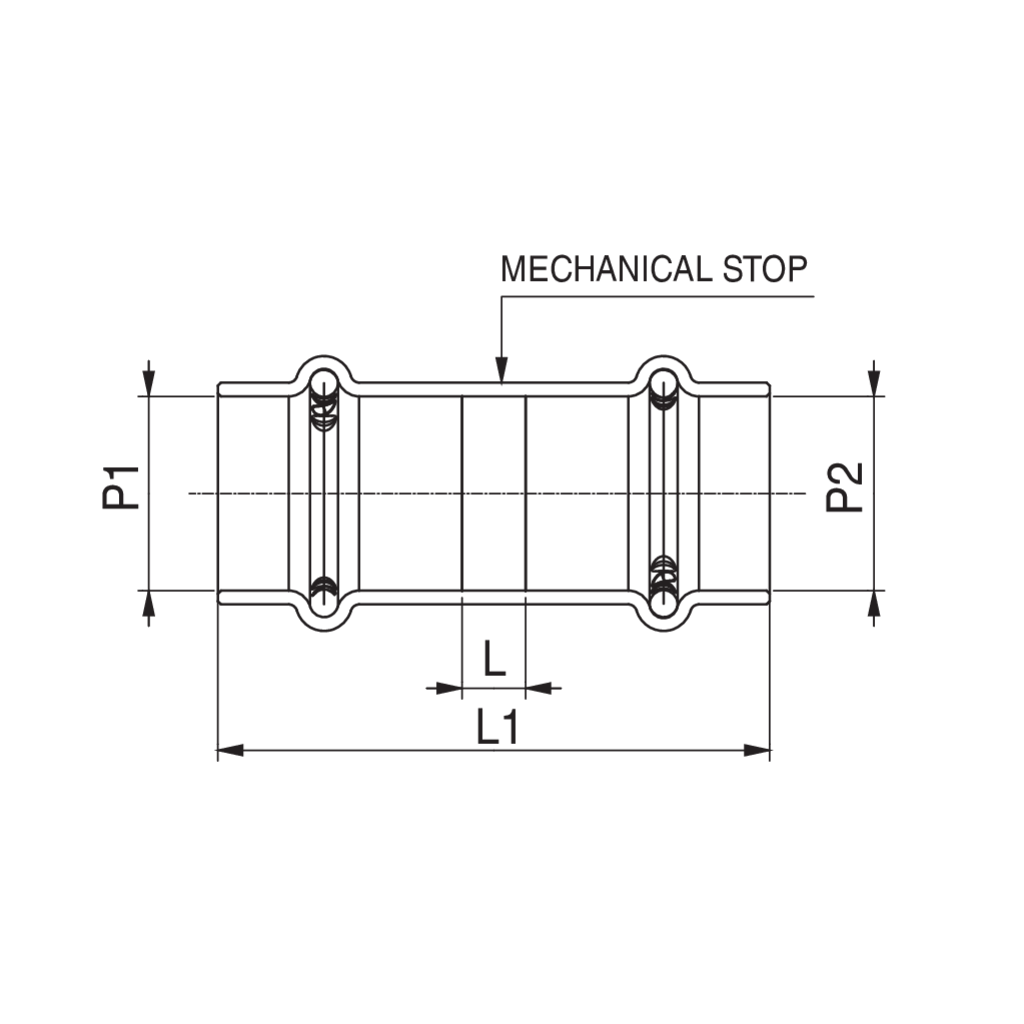

P1 x P2	BAG	MASTER BOX	PART NO.	L	L1
1/2'' x 1/2''	10	250	5V020004	0.12	1.61
1'' x 1''	5	100	5V020006	0.16	1.97
1 1/4'' x 1 1/4''	5	75	5V020007	0.16	2.20
1 1/2'' x 1 1/2''	1	46	5V020008	0.16	2.99
2'' x 2''	1	28	5V020010	0.16	3.31
3/4'' x 3/4''	10	200	5V020005	0.16	1.97
