5V0200

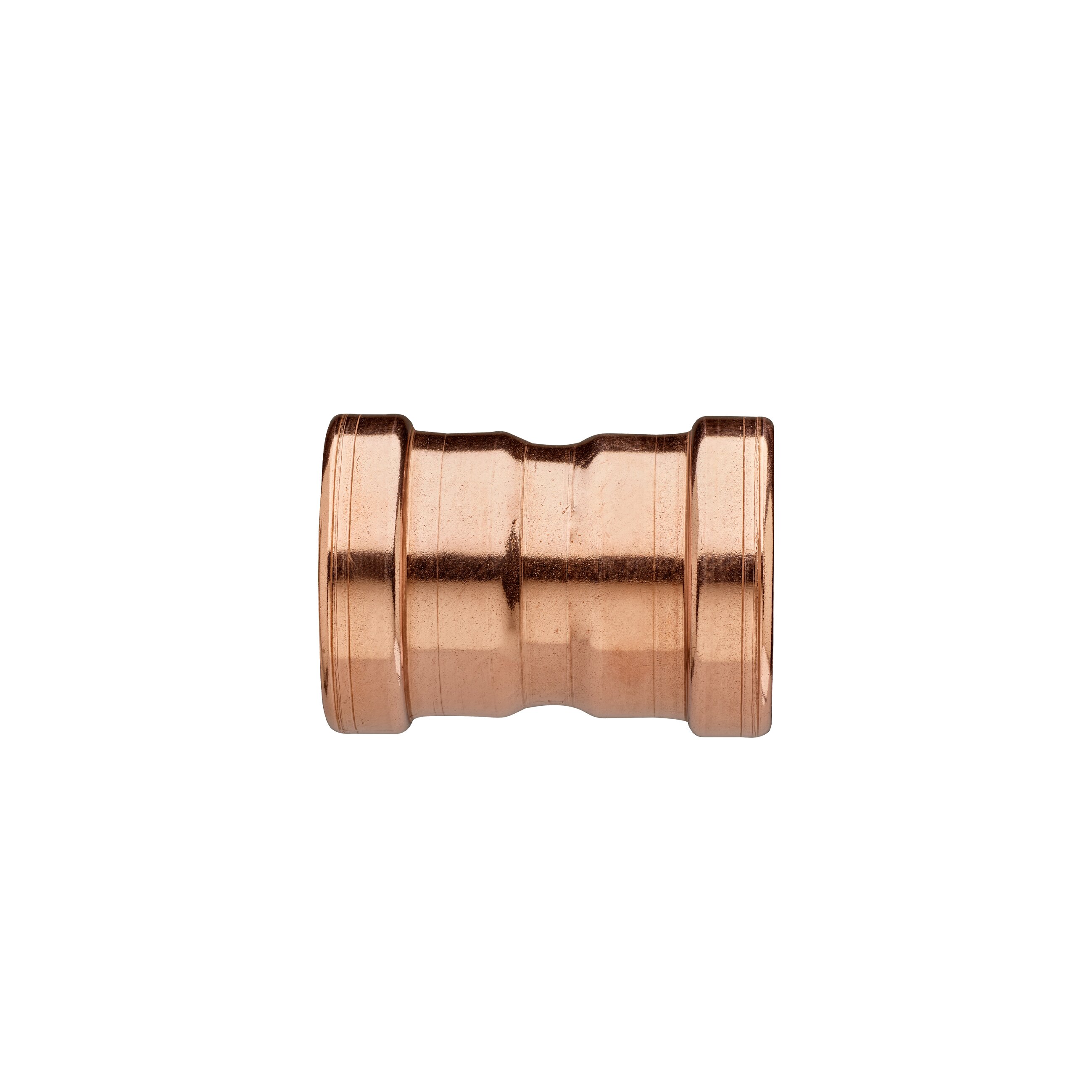

Copper F/F coupling.

Technical specifications

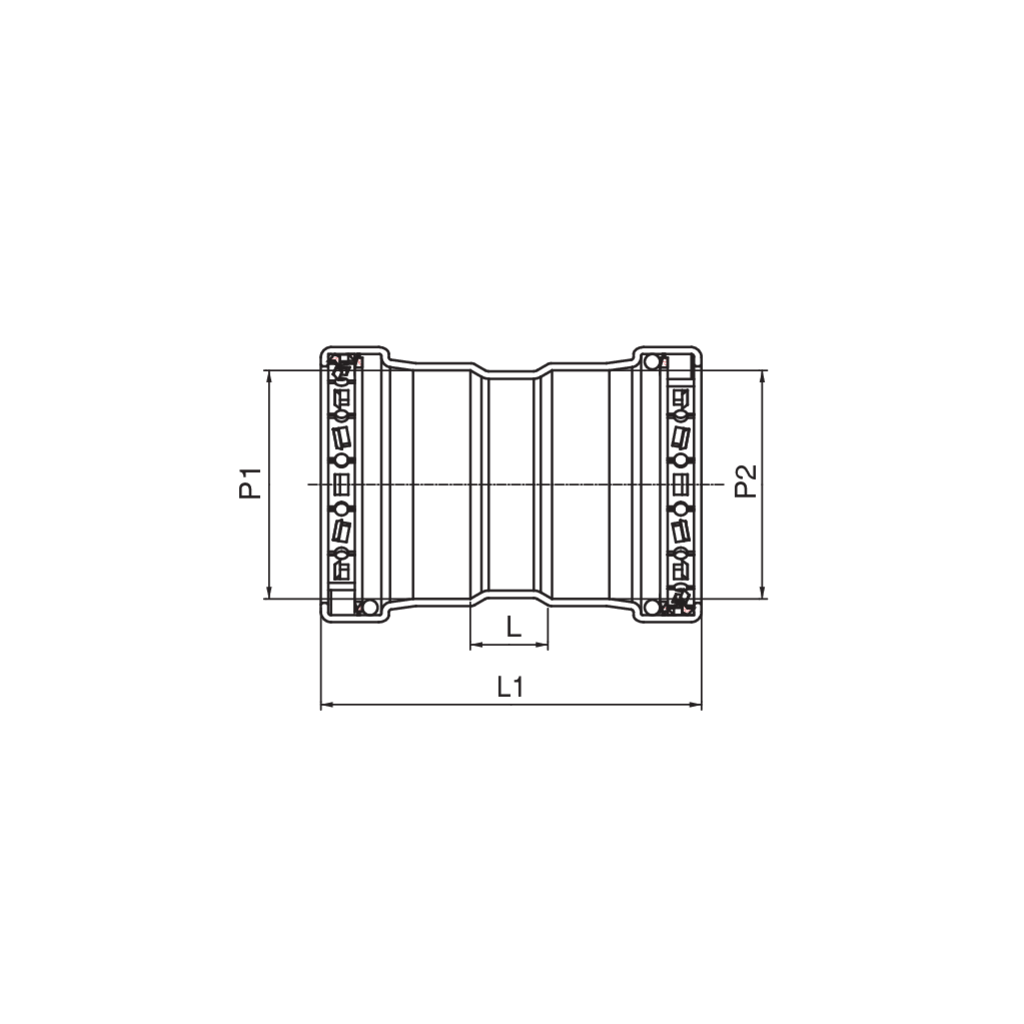

P1 x P2	BAG	MASTER BOX	PART NO.	L	L1
2 1/2'' x 2 1/2''	1	12	5V020012	0.87	4.33
3'' x 3''	1	6	5V020014	0.98	4.92
4'' x 4''	1	6	5V020018	1.02	5.83

Available media and videos

BIM

5V0200_Copper.zip
