5V0500

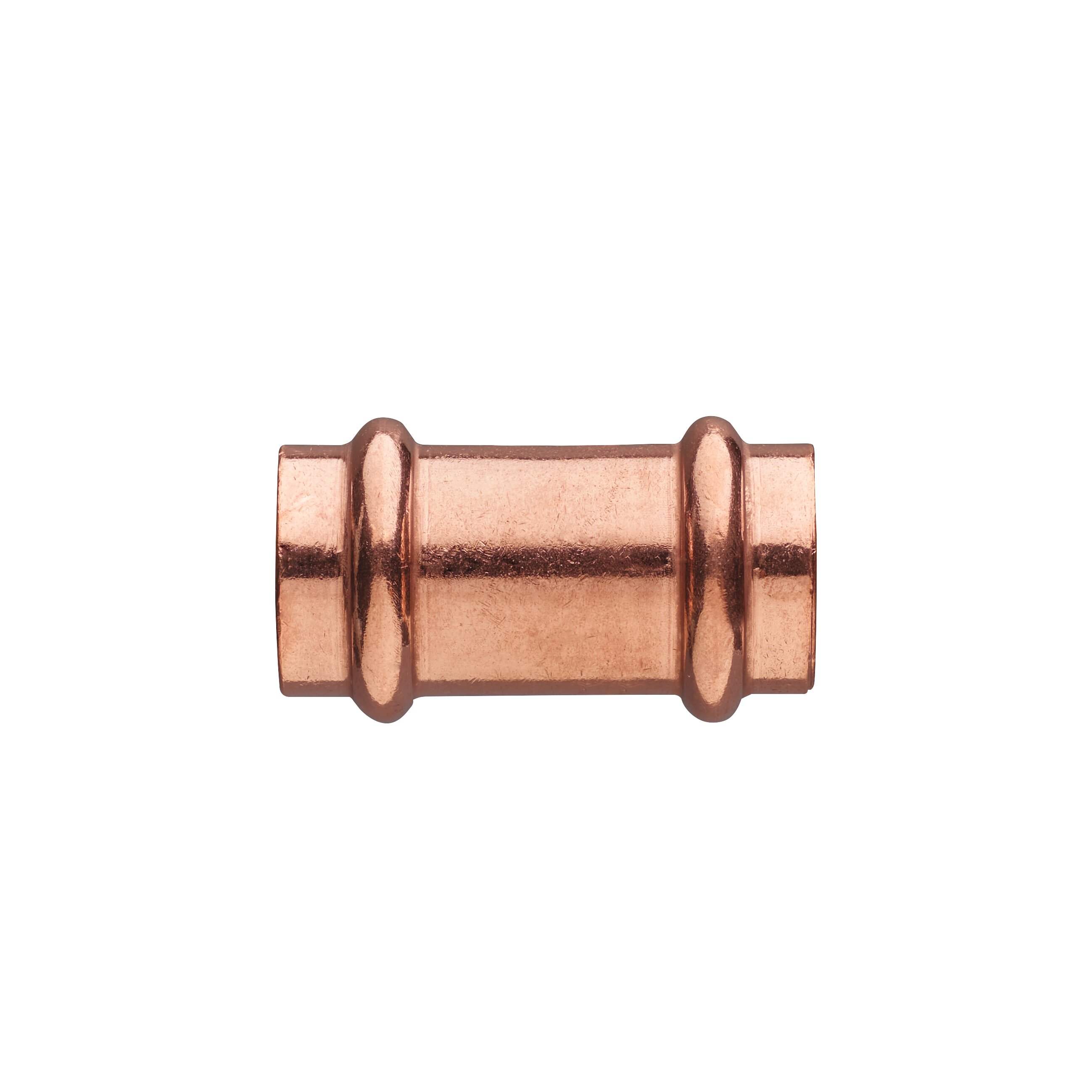

Copper F/F slip coupling.

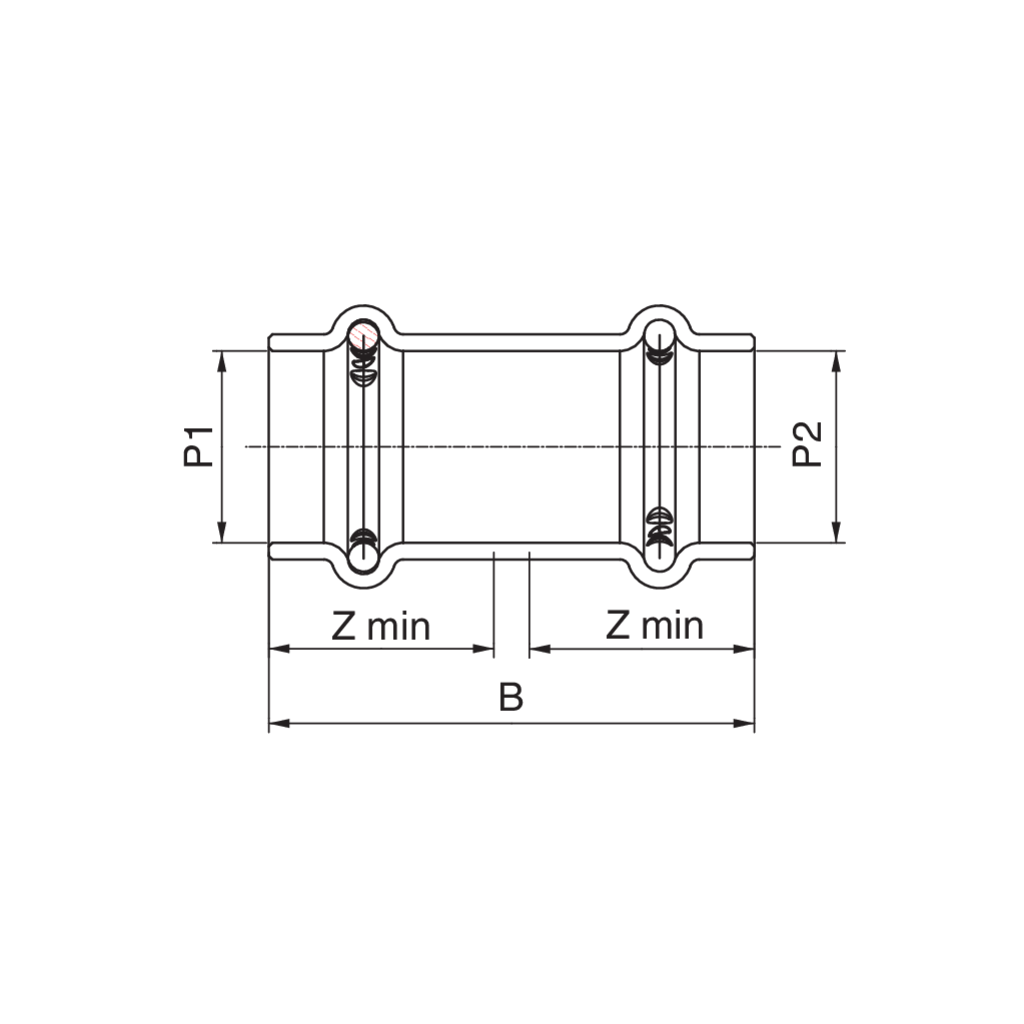

Technical specifications

P1 x P2	BAG	MASTER BOX	PART NO.	B	Z
1/2'' x 1/2''	10	250	5V050004	1.61	0.75
1'' x 1''	5	100	5V050006	1.97	0.91
1 1/4'' x 1 1/4''	5	75	5V050006	2.20	1.02
1 1/2'' x 1 1/2''	1	46	5V050008	2.99	1.42
2'' x 2''	1	28	5V050010	3.31	1.57
3/4'' x 3/4''	10	200	5V050005	1.97	0.91

Available media and videos

BIM

5V0500_Copper.zip
