5V0500

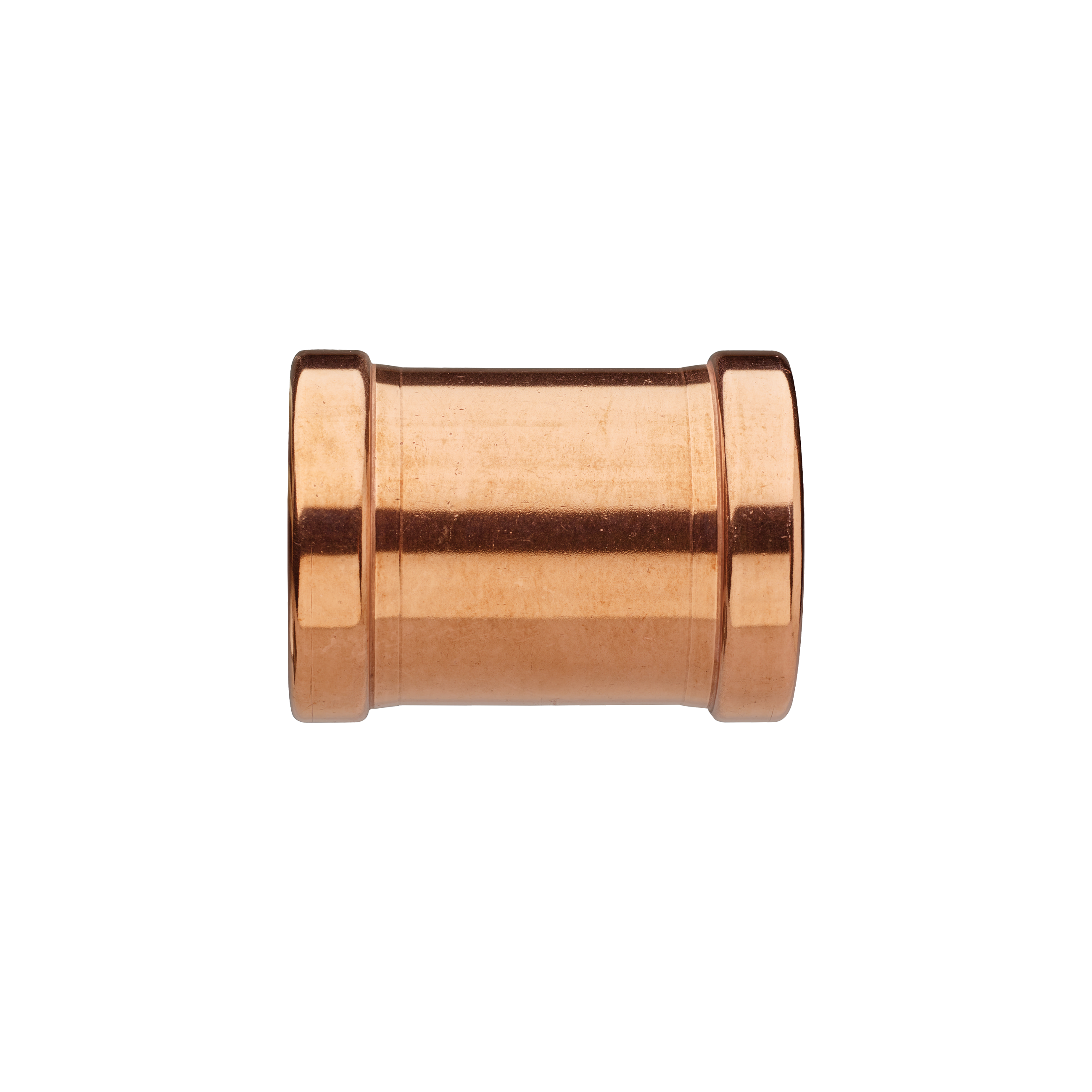

Copper F/F slip coupling.

Technical specifications

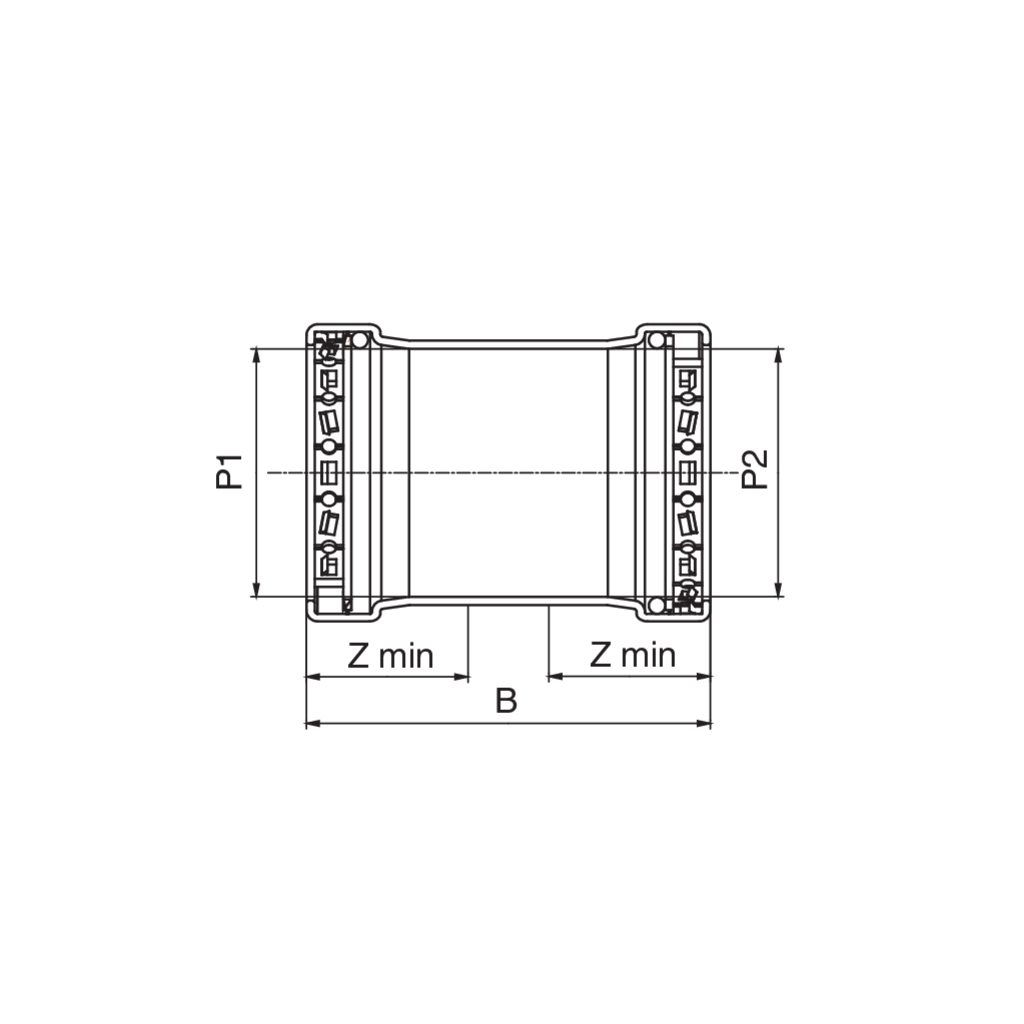

P1 x P2	BAG	MASTER BOX	PART NO.	B	Z
2 1/2'' x 2 1/2''	1	12	5V050012	4.33	1.73
3'' x 3''	1	8	5V050014	4.92	1.97
4'' x 4''	1	6	5V050018	5.83	2.40

Available media and videos

BIM

5V0500_Copper.zip
